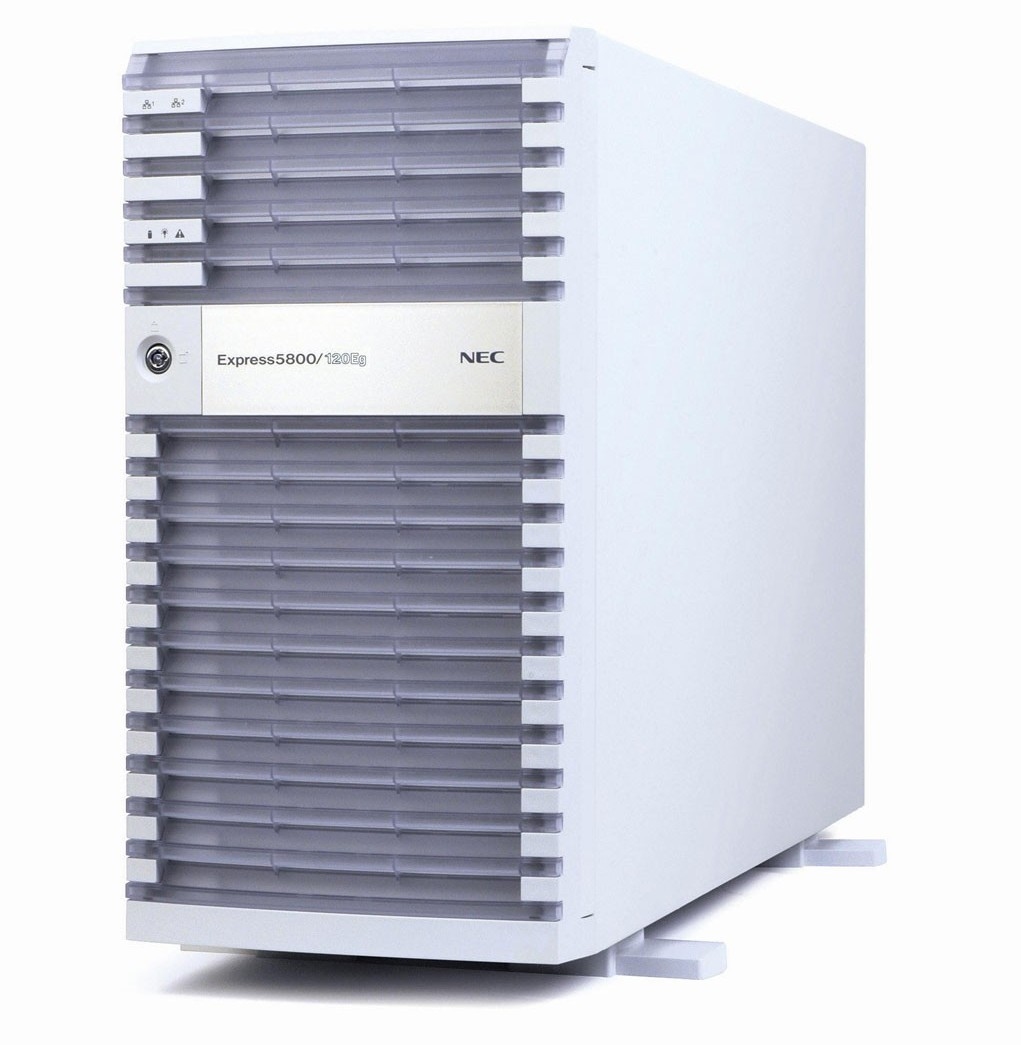

NEC Express5800 120Eg, NL
Model Express5800 120Eg, NLPart no. E62NC7G-0002Z-05
36 specifications
- ProcessorIntel® Xeon®
- Memory0.5 GB
- Storage146 GB
- Weight25 kg
- Maximum graphics card memory8 MB
- Networking featuresGigabit Ethernet
Overview
- Processor
- Intel® Xeon®
- Memory
- 0.5 GB
- Storage
- 146 GB
- Weight
- 25 kg
- Maximum graphics card memory
- 8 MB
- Networking features
- Gigabit Ethernet
- Brand
- NEC
- Category
- Server
- Model
- Express5800 120Eg, NL
- Part numbers
- E62NC7G-0002Z-05, E62NHNX-0001Z-13
- Also known as
- NEC Express5800 120Eg, NL server Tower Intel® Xeon® 2.8 GHz 0.5 GB DDR-SDRAM 600 W
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® |
| Processor frequency | 2.8 GHz |
| Processor cache | 2 MB |
| Motherboard chipset | Intel® E7320 |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Internal memory type | DDR-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 146 GB |
| HDD interface | SCSI |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | 1x PCI Expresss (X4) 2x PCI-X 64bit/66MHz 2x PCI 32bit/33MHz (5V) |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows SBS 2003 Standard Windows 2000 Server Windows Server 2003 RedHat Linux ES 2.1/3.0 |
| Bundled software | ESMPRO Server Manager ExpressBuilder |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 453 mm |
| Depth | 292 mm |
| Height | 683 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| CD read speed | 48x |
| Security features | 2 level password |
