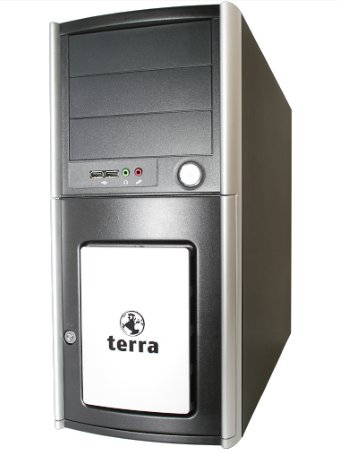

TERRA SERVER 3030 G2
Model TERRA SERVER 3030 G2Part no. 1100827EAN 4039407024315
145 specifications
- ProcessorIntel® Xeon® E3 V3 Family
- Memory8 GB
- Storage2 TB
- OSNo
- Weight26 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 V3 Family
- Memory
- 8 GB
- Storage
- 2 TB
- OS
- No
- Weight
- 26 kg
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- TERRA SERVER 3030 G2
- Part number
- 1100827
- EAN / UPC
- 4039407024315
- Also known as
- TERRA 3030 G2 server 2 TB Tower Intel® Xeon® E3 V3 Family E3-1225V3 3.2 GHz 8 GB DDR3-SDRAM 650 W
Specifications
145 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1225V3 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C224 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 84 W |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor code | SR14U |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor threads | 4 |
| Scalability | 1S |
| Stepping | C0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Supported processor sockets | LGA 1150 (Socket H3) |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory slots | 4 |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4600 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 0 |
| FireWire 800 | No |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 1 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Motherboard form factor | micro ATX |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 R2 Windows SBS 2011 Windows Server 2012 Windows Server 2012 R2 Windows 7 (32/64-Bit) Windows 8 (32/64-Bit) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75461 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power requirements | 100-240V/6-3A |
| Power supply | 650 W |
| Number of redundant power supplies supported | 1 |
| Number of redundant power supplies installed | 0 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO9001, 80+ Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 533 mm |
| Height | 425 mm |
| Weight | 26 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2300 |
| Graphics card family | Aspeed |
| Storage drive controller | Adaptec 6405 |
| Drive bays | 3x5.25", 4x3.5" |
| Motherboard manufacturer | ASUS |
