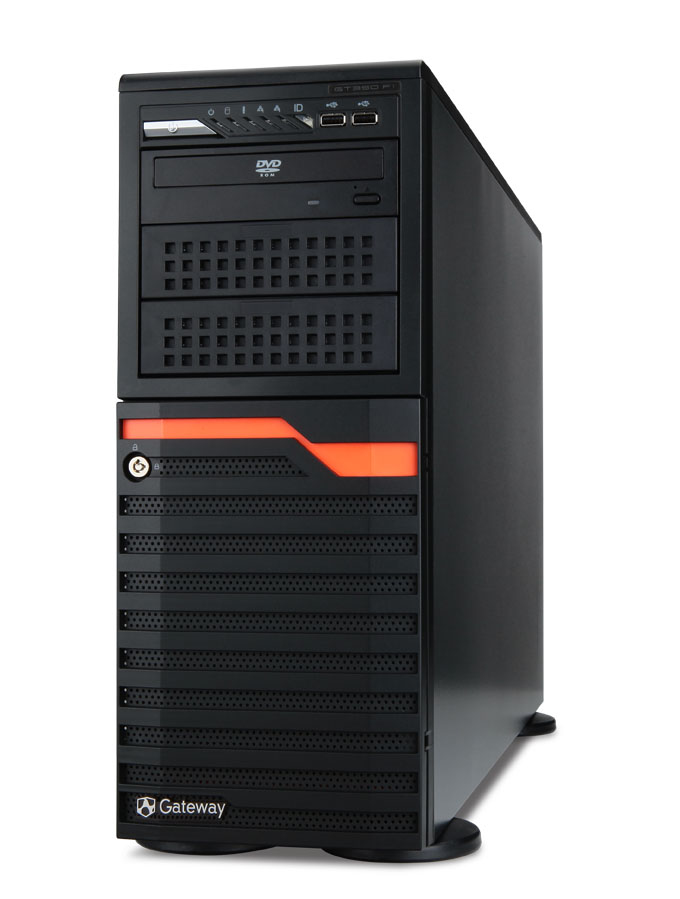

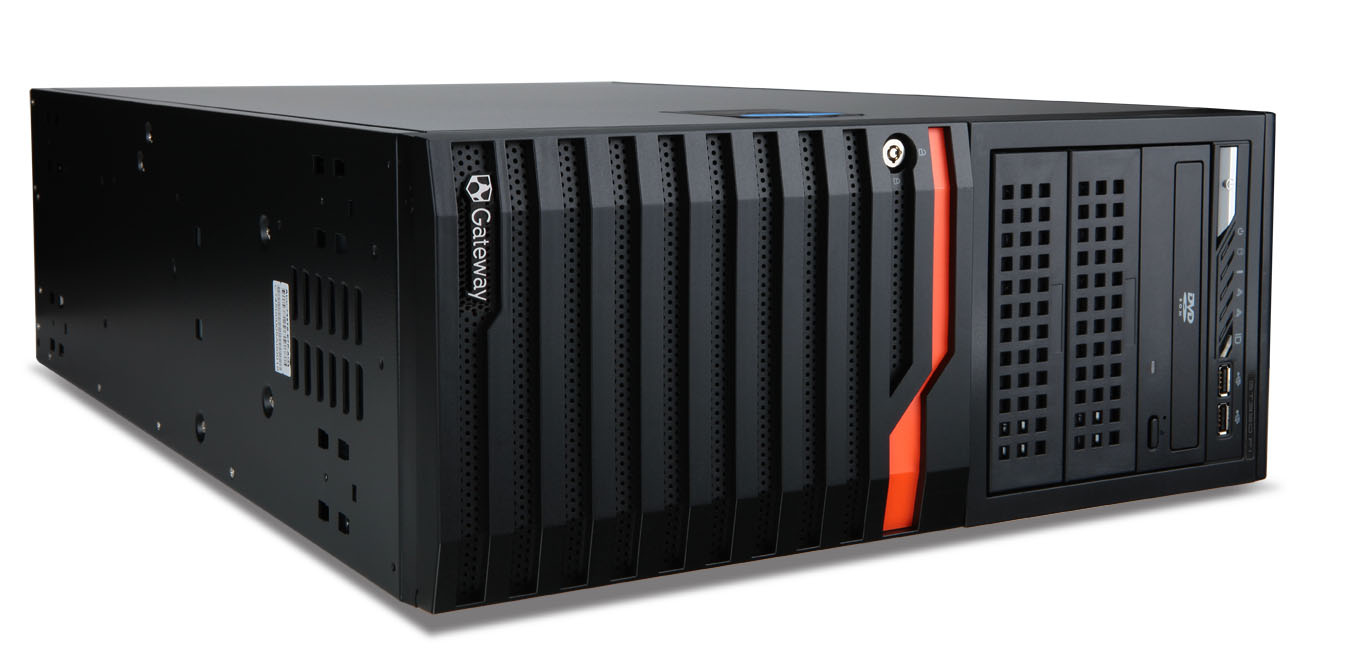

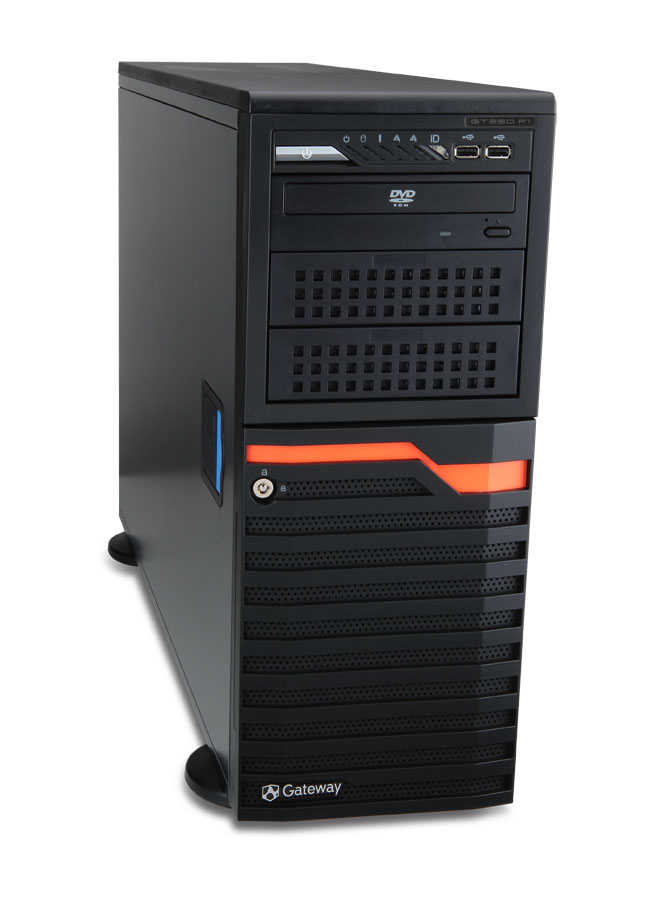

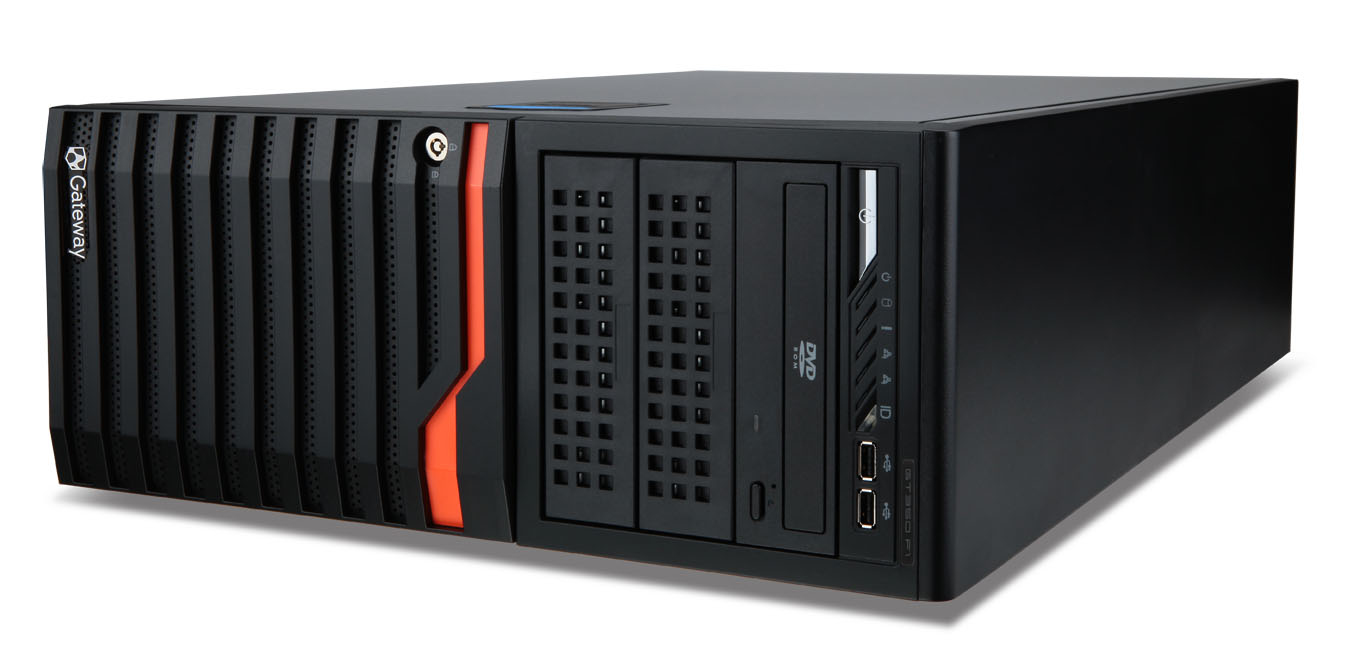

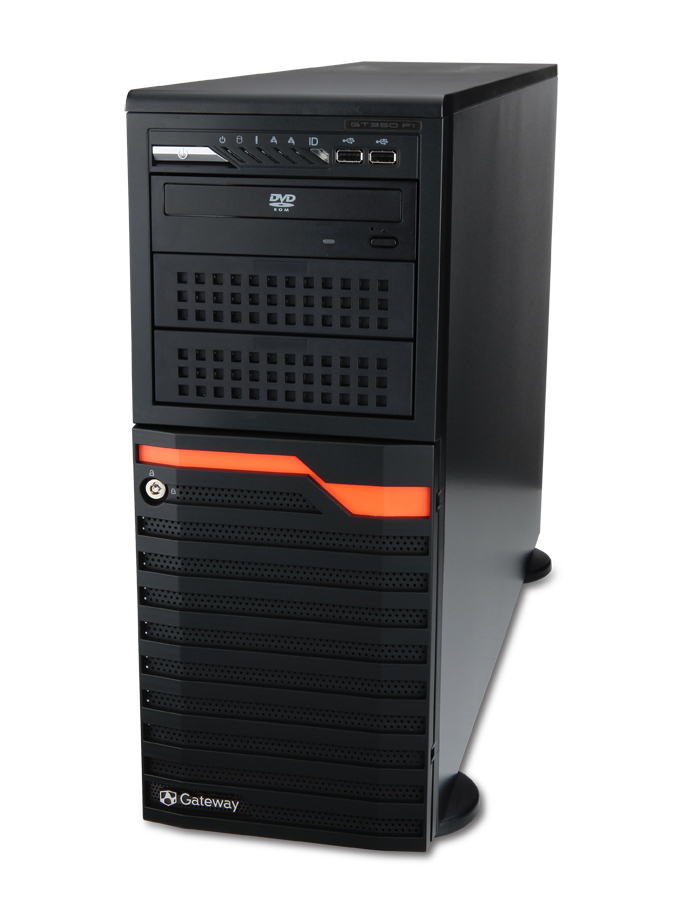

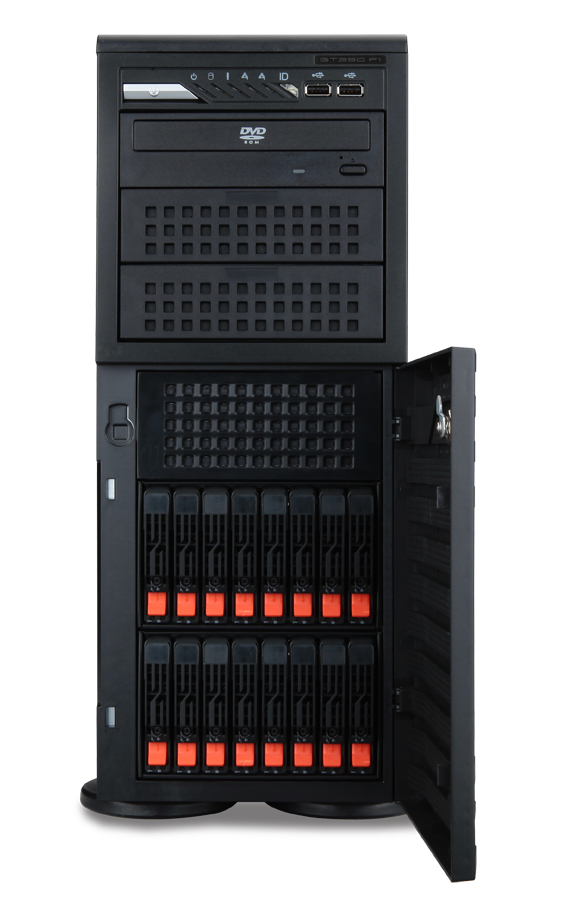

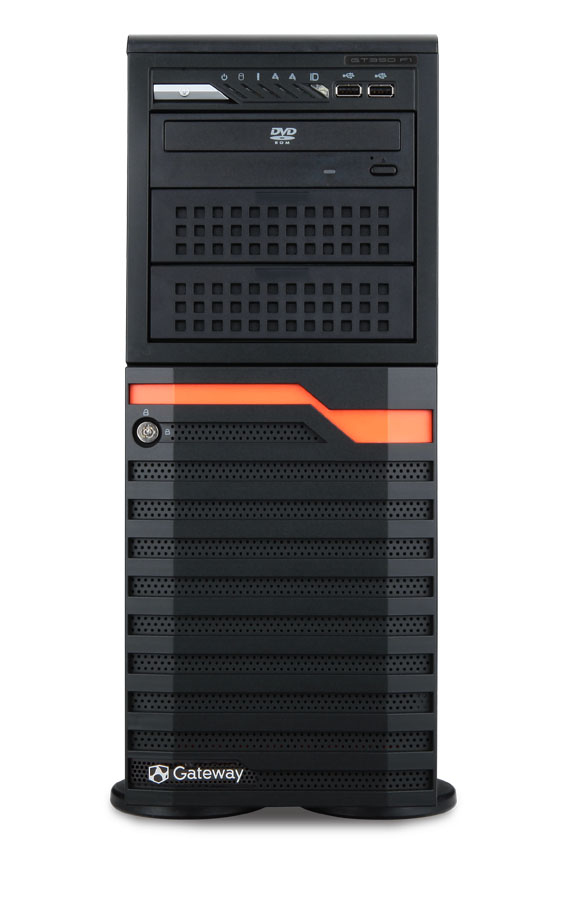

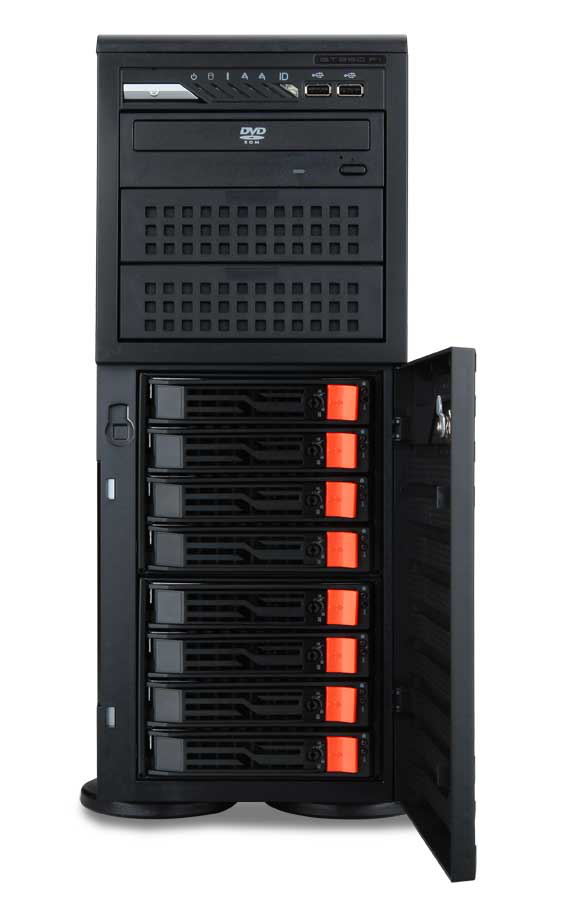

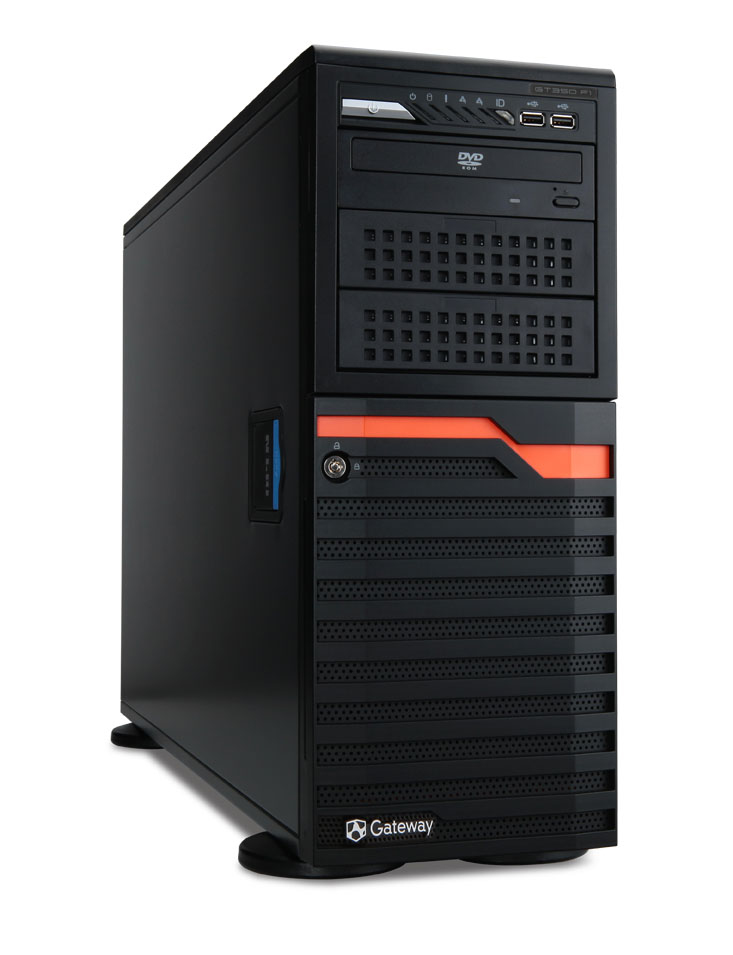

Acer AT 350F1 server
Acer

AT 350F1 server

0 GB Tower (4U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 8 GB DDR3-SDRAM 720 W

Model 350F1Part no. TT.R5900.101EAN 8865410212434

140 specifications
  • ProcessorIntel® Xeon® 5000 Sequence
  • Memory8 GB
  • Storage0 GB
  • OSNo
  • Processor manufacturerIntel
  • Maximum storage capacity16 TB
See all specifications

Overview

Processor
Intel® Xeon® 5000 Sequence
Memory
8 GB
Storage
0 GB
OS
No
Processor manufacturer
Intel
Maximum storage capacity
16 TB
Brand
Acer
Category
Server
Model
350F1
Part numbers
TT.R5900.101, TT.R5900.081, TT.R5900.082, TT.R5900.083, TT.R5900.085, TT.R5900.086
EAN / UPC
8865410212434, 884483894444, 8844838944448, 884483894451 +7 more
Also known as
Acer AT 350F1 server 0 GB Tower (4U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 8 GB DDR3-SDRAM 720 W

Specifications

140 specifications in 17 groups

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® 5000 Sequence
Processor modelE5620
Processor frequency2.4 GHz
Processor boost frequency2.66 GHz
Processor cores4
Processor cache12 MB
Motherboard chipsetIntel® 5520
Memory channels supported by processorTriple
Number of processors installed1
Thermal Design Power (TDP)80 W
Processor cache typeSmart Cache
System bus rate5.86 GT/s
Bus typeQPI
CPU multiplier (bus/core ratio)18
Compatible processor seriesIntel® Xeon®
ECC supported by processorYes
Embedded options availableYes
Execute Disable BitYes
FSB ParityNo
Idle StatesYes
Maximum internal memory supported by processor288 GB
Maximum number of SMP processors2
Memory bandwidth supported by processor (max)25.6 GB/s
Memory clock speeds supported by processor800,1066 MHz
Memory types supported by processorDDR3 800/1066
Number of QPI links2
Physical Address Extension (PAE)40 bit
Processor codeSLBV4
Processor codenameWestmere EP
Processor lithography32 nm
Processor operating modes64-bit
Processor package size42.5 X 45 mm
Processor seriesIntel Xeon 5600 Series
Processor socketSocket B (LGA 1366)
Processor threads8
SteppingB1
Supported instruction setsSSE4.2
Tcase77.6 °C
Thermal Monitoring TechnologiesNo
Conflict-Free processorNo
Intelligent Platform Management Interface (IPMI) supportYes

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM
ECCYes
Memory layout (slots x size)2 x 4 GB
Memory slots18x DIMM
Maximum internal memory192 GB

Storage

Maximum storage capacity16 TB
Total storage capacity0 GB
Number of HDDs installed0
Number of SSDs installed0
RAID supportYes
RAID levels0, 1, 5, 10
Optical drive typeDVD-RW

Network

Network readyYes
Wi-FiNo
BluetoothNo
Cabling technology10/100/1000Base-T(X)
Ethernet LANYes
LAN controllerIntel® 82576EB
Networking featuresGigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
DisplayPorts quantity0
Dual Link DVINo
FireWire 800No
Firewire (IEEE 1394) ports0
Mini DisplayPorts quantity0
PS/2 ports quantity2
Parallel ports quantity0
S/PDIF in portNo
S/PDIF out portNo
Serial ports quantity1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x1 slots0
PCI Express x4 slots0
PCI Express x8 slots4
PCI Express x16 slots2
AGP x4 slots0
AGP x8 slots0
PCI Express slots version1.0, 2.0
PCI slots0
PCI-X slots0

Design

Chassis typeTower (4U)
Rack mountingYes
Redundant fans supportYes

Performance

Management softwareSmart Server Manager, System Health LED, Smart Console

Software

Operating system installedNo
Compatible operating systemsWindows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5.4, SUSE Linux Enterprise Server 11, VMware ESXi 4, VMware ESX 4

Processor special features

CPU configuration (max)2
Enhanced Intel SpeedStep TechnologyYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingYes
Intel Dual Display Capable TechnologyNo
Intel Enhanced Halt StateYes
Intel FDI TechnologyNo
Intel Fast Memory AccessNo
Intel Flex Memory AccessNo
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® My WiFi Technology (Intel® MWT)No
Intel® Quick Sync Video TechnologyNo
Intel® Turbo Boost Technology1.0
Intel® Wireless Display (Intel® WiDi)No
Processor ARK ID47925

Power

Redundant power supply (RPS) supportYes
Power supply typeAC
Number of power supply units1
Power requirements100-240V
Power supply720 W
Power supply input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)8 - 90%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance industry standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Electromagnetic compatibilityFCC (A), CE (A), BSMI
SafetyUL/cUL, CB, Nemko/GS

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width178 mm
Depth434 mm
Height648 mm

Packaging content

Cables includedAC
Keyboard includedYes
Mouse includedYes

Other features

Disk array controllerSAS
iSCSI supportYes
