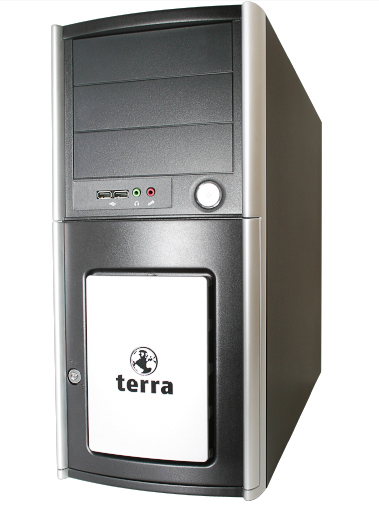

TERRA SERVER 3031
Model TERRA SERVER 3031Part no. 1100789EAN 4039407021819
138 specifications
- ProcessorIntel® Xeon® E3 V2 Family
- Memory8 GB
- Storage2 TB
- Weight21.3 kg
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel® Xeon® E3 V2 Family
- Memory
- 8 GB
- Storage
- 2 TB
- Weight
- 21.3 kg
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- TERRA
- Category
- Server
- Model
- TERRA SERVER 3031
- Part number
- 1100789
- EAN / UPC
- 4039407021819
- Also known as
- TERRA 3031 server 2 TB Tower Intel® Xeon® E3 V2 Family E3-1225V2 3.2 GHz 8 GB DDR3-SDRAM 650 W Windows Small Business Server 2011 Standard
Specifications
138 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1225V2 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C204 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 4 |
| Thermal Design Power (TDP) | 77 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 32 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1200 v2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Stepping | E1 |
| Supported instruction sets | AVX |
| Supported processor sockets | LGA 1155 (Socket H2) |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4 |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
| Drive device, transfer rate | 6144 MB/s |
| Internal drive bays | 4 |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4000 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Motherboard form factor | micro ATX |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Small Business Server 2011 Standard |
| Compatible operating systems | Windows Server 2008 / R2 SP1 Windows Server SBS 2011 Windows Server 2012 Windows 7 (32/64-Bit) Redhat Enterprise Linux 6.0 SUSE Linux Enterprise Server 11 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 65733 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power requirements | 230V AC |
| Power supply | 650 W |
| Number of redundant power supplies supported | 1 |
| Number of redundant power supplies installed | 0 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO9001 80 PLUS Bronze |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 533 mm |
| Height | 425 mm |
| Weight | 21.3 kg |
Other features
| Specification | Value |
|---|---|
| Built-in display | No |
| Drive device, buffer size | 512 MB |
| Graphics card | AST2050 |
| Graphics card family | Aspeed |
| Graphics card memory type | GDDR2 |
| Storage drive controller | Adaptec 6405 |
| Drive bays | 3x5.25", 4x3.5" |
| Motherboard manufacturer | ASUS |
