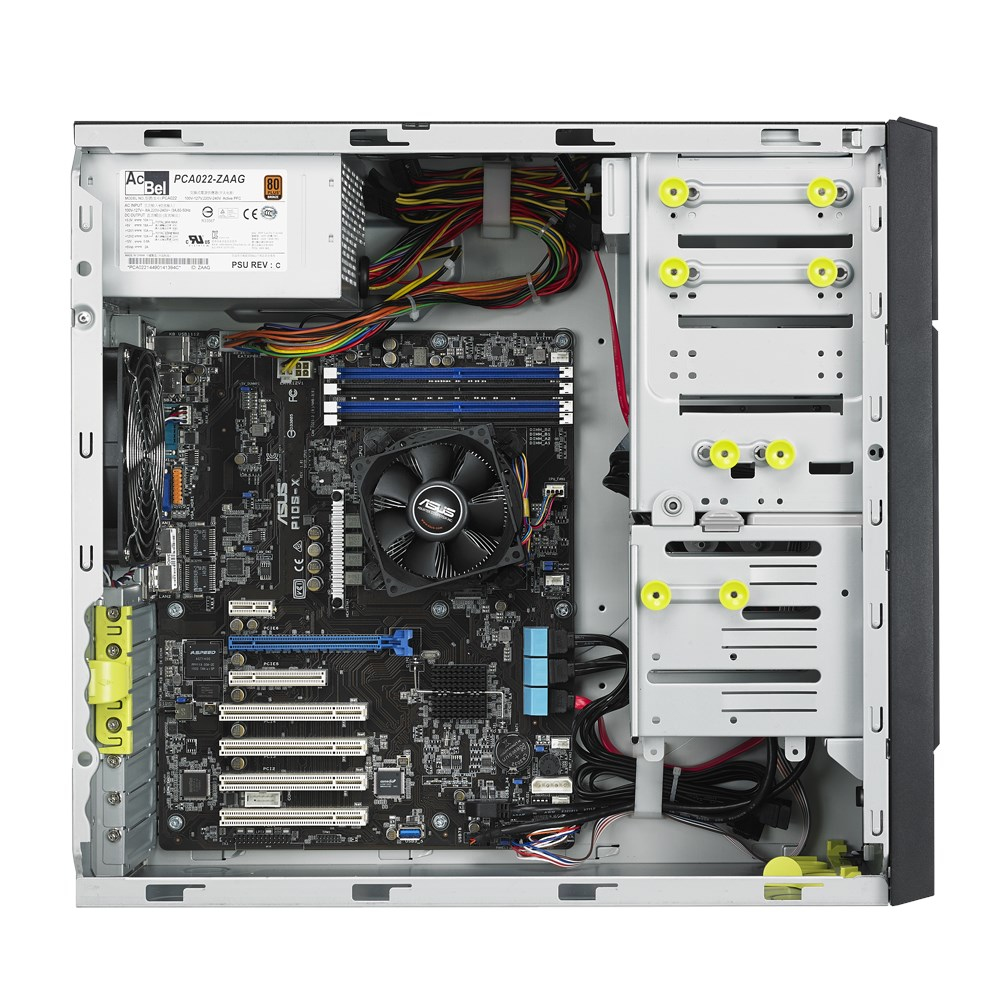

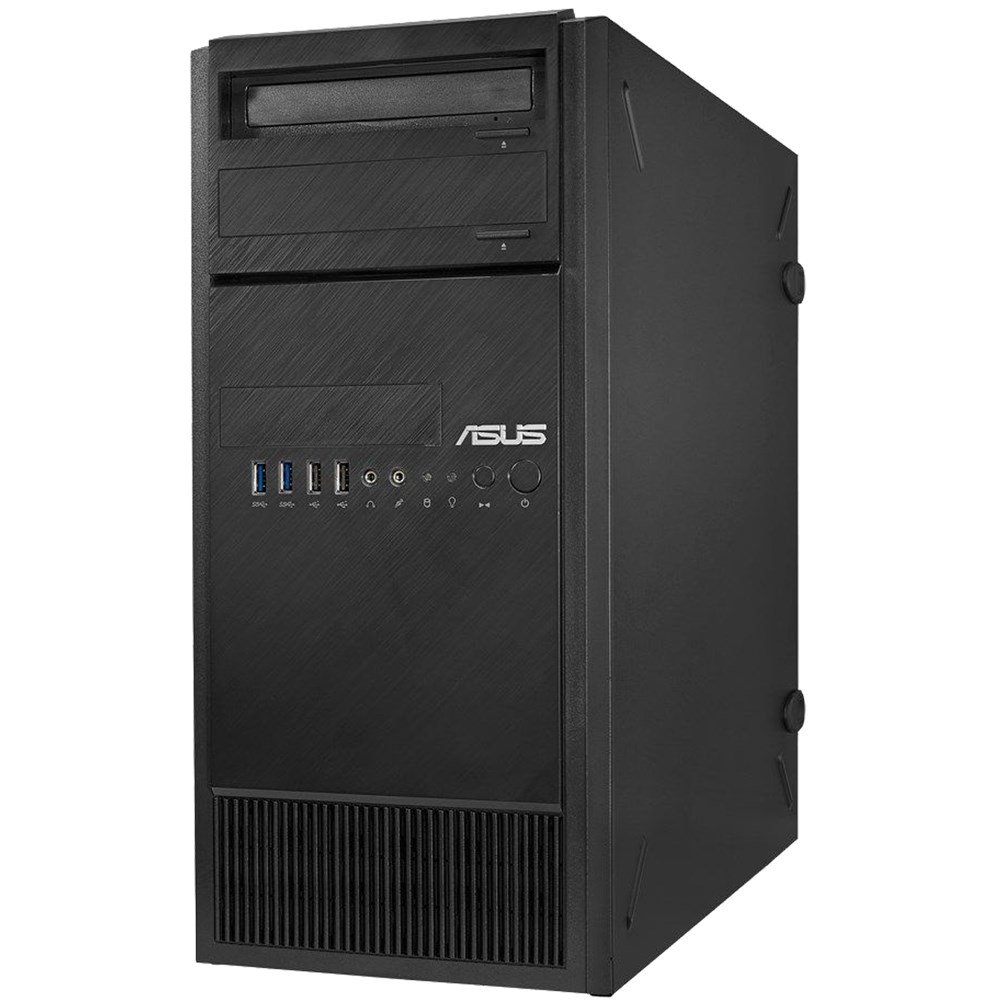

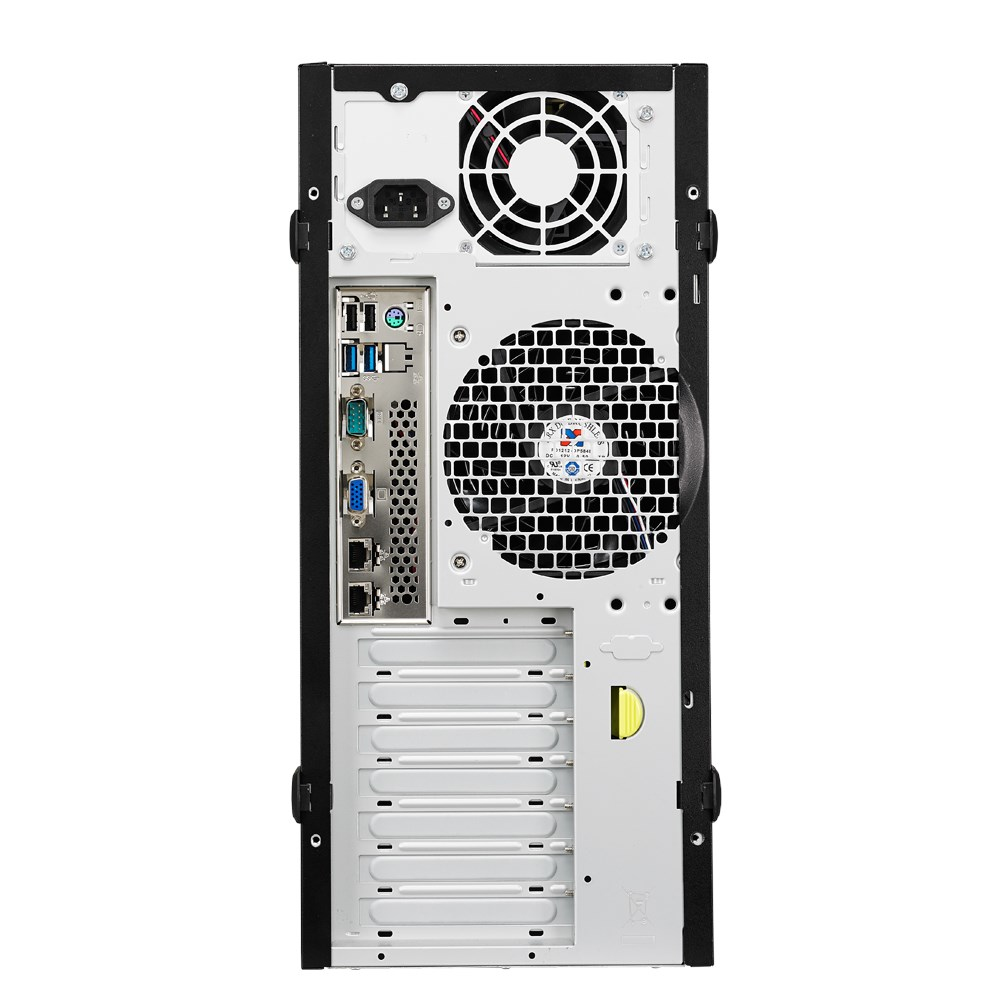

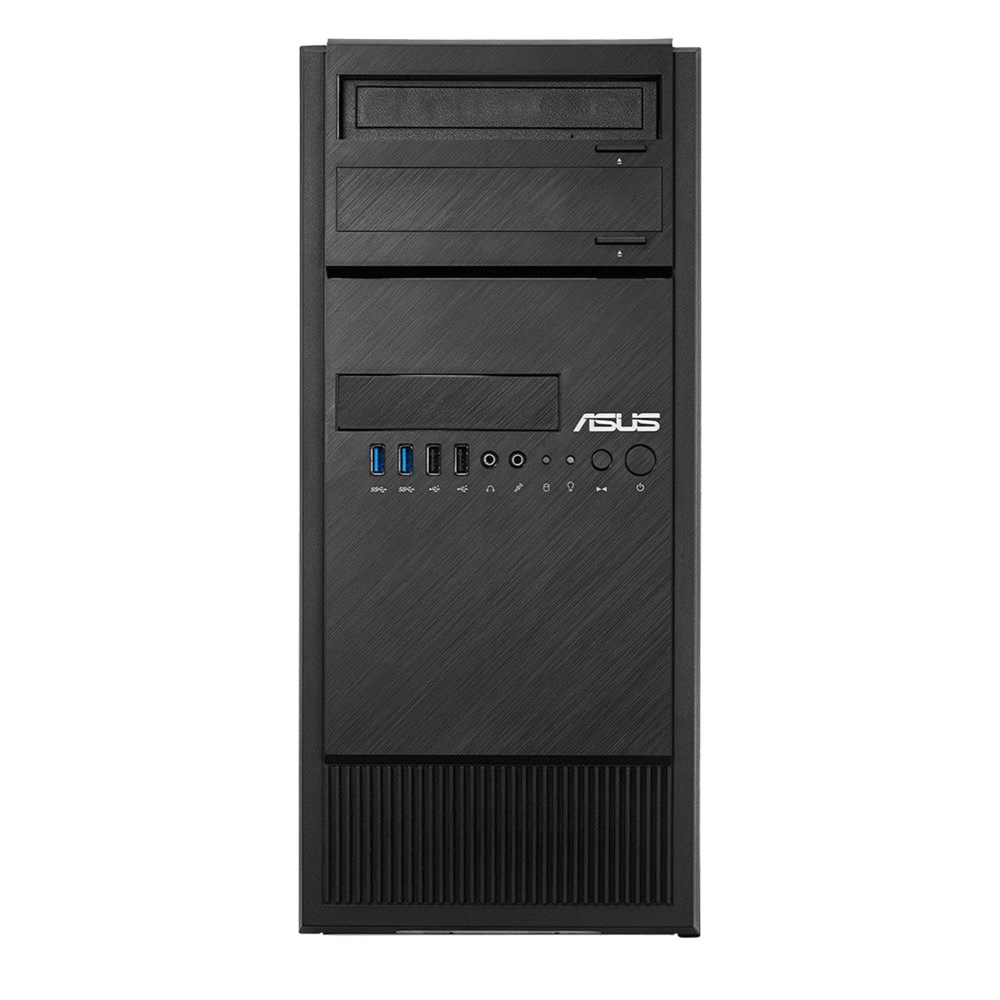

ASUS TS100 E9-M62

ASUS TS100 E9-M62

Model TS100 E9-M62Part no. 90SV03RA-M62CE0EAN 4712900832433

59 specifications
  • ProcessorIntel® Xeon® E3 v6
  • Memory8 GB
  • Storage1 TB
  • GraphicsAspeed AST1400
  • OSFreeDOS
  • Weight10.3 kg
See all specifications

Overview

Processor
Intel® Xeon® E3 v6
Memory
8 GB
Storage
1 TB
Graphics
Aspeed AST1400
OS
FreeDOS
Weight
10.3 kg
Brand
ASUS
Category
Server
Model
TS100 E9-M62
Part number
90SV03RA-M62CE0
EAN / UPC
4712900832433
Also known as
ASUS TS100 E9-M62 server 1 TB Tower Intel® Xeon® E3 v6 E3-1220V6 3 GHz 8 GB DDR4-SDRAM 300 W FreeDOS

Specifications

59 specifications in 13 groups

Processor

Processor familyIntel® Xeon® E3 v6
Processor modelE3-1220V6
Processor frequency3 GHz
Processor boost frequency3.5 GHz
Processor cores4
Processor cache8 MB
Motherboard chipsetIntel® C232
Number of processors installed1
Processor cache typeSmart Cache
System bus rate8 GT/s
Processor lithography14 nm
Processor socketLGA 1151 (Socket H4)
Processor threads4

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2400 MHz
Memory layout (slots x size)1 x 8 GB
Memory slots4
Maximum internal memory64 GB

Storage

Total storage capacity1 TB
Number of HDDs installed1
HDD capacity1 TB
HDD interfaceSerial ATA III
HDD speed7200 RPM
HDD size3.5"
RAID supportYes
RAID levels0, 1, 5, 10
Optical drive typeDVD-RW

Graphics

Discrete graphics cardYes
Discrete graphics card modelAspeed AST1400

Network

Cabling technology10/100/1000Base-T(X)
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Number of SATA III connectors6
PS/2 ports quantity1
Serial ports quantity1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots4

Design

Chassis typeTower
Product colourBlack

Software

Operating system installedFreeDOS
Compatible operating systemsWindows Server 2016 Windows Server 2012 R2 Windows Server 2012 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS VMware Citrix XenServer

Power

Power supply300 W
Power supply input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)20 - 90%

Certificates

CertificationBSMI, CE, C-Tick, FCC(Class B)

Weight & dimensions

Width190 mm
Depth423 mm
Height435 mm
Weight10.3 kg
Package weight14.9 kg
