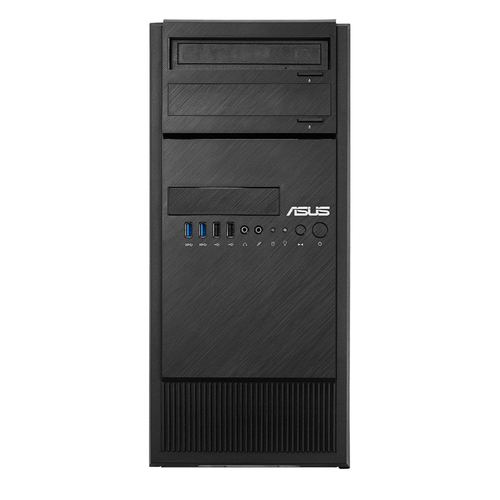

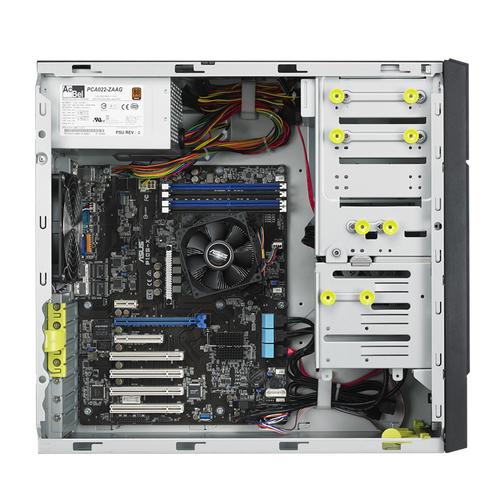

ASUS TS100 E9-M58
Model TS100 E9-M58Part no. 90SV03RA-M58CE0EAN 4712900830064
103 specifications
- ProcessorIntel® Xeon® E3 v6
- Memory8 GB
- Storage1 TB
- GraphicsAspeed AST1400
- Weight10.3 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® E3 v6
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Aspeed AST1400
- Weight
- 10.3 kg
- Colour
- Black
- Brand
- ASUS
- Category
- Server
- Model
- TS100 E9-M58
- Part number
- 90SV03RA-M58CE0
- EAN / UPC
- 4712900830064
- Also known as
- ASUS TS100 E9-M58 server 1 TB Tower Intel® Xeon® E3 v6 E3-1220 v6 3 GHz 8 GB DDR4-SDRAM 300 W
Specifications
103 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v6 |
| Processor model | E3-1220 v6 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C232 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 72 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory clock speeds supported by processor | 1866,2133 MHz |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor codename | Kaby Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | DVD Super Multi DL |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Aspeed AST1400 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |

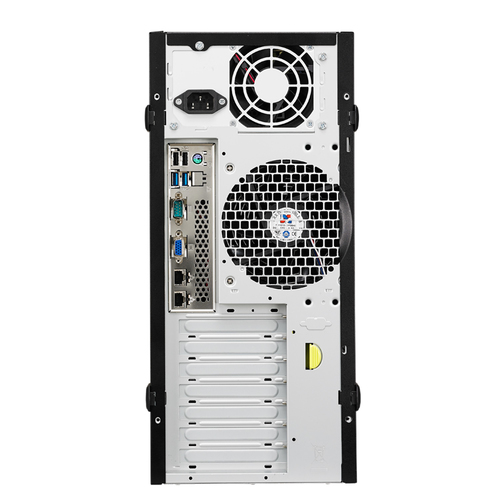

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| PCI slots | 4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS VMware Citrix XenServer |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 97470 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE, C-Tick, FCC(Class B) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 423 mm |
| Depth | 190 mm |
| Height | 435 mm |
| Weight | 10.3 kg |
| Package weight | 14.9 kg |
