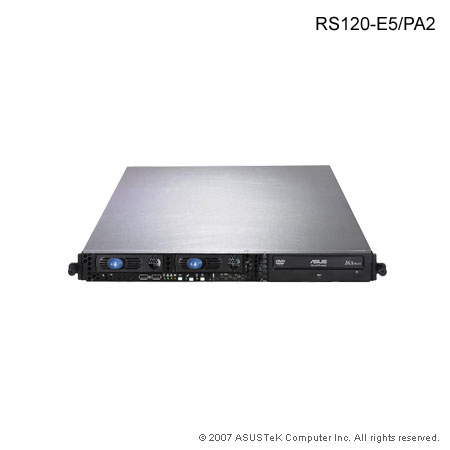

ASUS RS120-E5/PA2 Multi-Core Cost Effective Server
Model RS120-E5/PA2 Multi-Core Cost Effective ServerPart no. RS120-E5/PA2EAN 610839652433
81 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Storage0 GB
- Weight12 kg
- Processor manufacturerIntel
- Internal memory typeDDR2-SDRAM
- Ethernet LAN (RJ-45) ports0
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Storage
- 0 GB
- Weight
- 12 kg
- Processor manufacturer
- Intel
- Internal memory type
- DDR2-SDRAM
- Ethernet LAN (RJ-45) ports
- 0
- Brand
- ASUS
- Category
- Server
- Model
- RS120-E5/PA2 Multi-Core Cost Effective Server
- Part number
- RS120-E5/PA2
- EAN / UPC
- 610839652433, 610839660735, 6108396524330
- Also known as
- ASUS RS120-E5/PA2 Multi-Core Cost Effective server 0 GB Rack (1U) Intel® Xeon® 5000 Sequence E5335 2 GHz DDR2-SDRAM 350 W
Specifications
81 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5335 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Number of processors installed | 0 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 582 M |
| Processing Die size | 286 mm² |
| Processor codename | Clovertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5300 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 4 |
| Tcase | 66 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 2 |
| HDD interface | Serial ATA II |
| Hot-swap | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI-X slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 28443 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply type | Single |
| Power supply | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 600 mm |
| Height | 43.6 mm |
| Weight | 12 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 444 x 600 x 43.6 mm |
