Product comparison · 2 servers

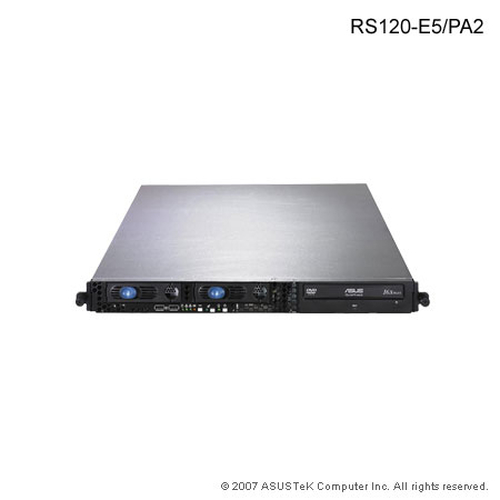

ASUS RS120-E5/PA2 Multi-Core Cost Effective Server vs ASUS RS163-E4/RX4 Dual Processor Server System

21specifications compared
9differ
12identical
61known for one product only

Key differences

Processor family
- RS120-E5/PA2 Multi-Core Cost Effective Server:Intel® Xeon® 5000 Sequence
- RS163-E4/RX4 Dual Processor Server System:AMD Opteron
Processor frequency
- RS120-E5/PA2 Multi-Core Cost Effective Server:2 GHz
- RS163-E4/RX4 Dual Processor Server System:2.2 GHz
Memory slots
- RS120-E5/PA2 Multi-Core Cost Effective Server:4
- RS163-E4/RX4 Dual Processor Server System:8
Maximum internal memory
- RS120-E5/PA2 Multi-Core Cost Effective Server:8 GB
- RS163-E4/RX4 Dual Processor Server System:32 GB
Hot-swap
- RS120-E5/PA2 Multi-Core Cost Effective Server:Yes
- RS163-E4/RX4 Dual Processor Server System:No
Redundant power supply (RPS) support
- RS120-E5/PA2 Multi-Core Cost Effective Server:No
- RS163-E4/RX4 Dual Processor Server System:Yes
Depth
- RS120-E5/PA2 Multi-Core Cost Effective Server:600 mm
- RS163-E4/RX4 Dual Processor Server System:686 mm
Height
- RS120-E5/PA2 Multi-Core Cost Effective Server:43.6 mm
- RS163-E4/RX4 Dual Processor Server System:46.4 mm

Side by side

Differences highlightedShow differences only

Comparison of RS120-E5/PA2 Multi-Core Cost Effective Server, RS163-E4/RX4 Dual Processor Server System
82 specifications	A ASUS RS120-E5/PA2 Multi-Core Cost Effective Server View product	B ASUS RS163-E4/RX4 Dual Processor Server System View product
Processor2 differ
Processor manufacturerKnown for one	Intel	Unknown — not stated by the source
Processor familyDiffers	Intel® Xeon® 5000 Sequence	AMD Opteron
Processor modelKnown for one	E5335	Unknown — not stated by the source
Processor frequencyDiffers	2 GHz	2.2 GHz
Processor coresKnown for one	4	Unknown — not stated by the source
Processor cacheKnown for one	8 MB	Unknown — not stated by the source
Number of processors installed	0	0
Thermal Design Power (TDP)Known for one	80 W	Unknown — not stated by the source
Processor cache typeKnown for one	L2	Unknown — not stated by the source
Bus typeKnown for one	FSB	Unknown — not stated by the source
CPU multiplier (bus/core ratio)Known for one	6	Unknown — not stated by the source
ECC supported by processorKnown for one	No	Unknown — not stated by the source
Embedded options availableKnown for one	Yes	Unknown — not stated by the source
Execute Disable BitKnown for one	Yes	Unknown — not stated by the source
FSB ParityKnown for one	Yes	Unknown — not stated by the source
Idle StatesKnown for one	Yes	Unknown — not stated by the source
Number of Processing Die TransistorsKnown for one	582 M	Unknown — not stated by the source
Processing Die sizeKnown for one	286 mm²	Unknown — not stated by the source
Processor codenameKnown for one	Clovertown	Unknown — not stated by the source
Processor front side busKnown for one	1333 MHz	Unknown — not stated by the source
Processor lithographyKnown for one	65 nm	Unknown — not stated by the source
Processor operating modesKnown for one	64-bit	Unknown — not stated by the source
Processor package sizeKnown for one	37.5 x 37.5 mm	Unknown — not stated by the source
Processor seriesKnown for one	Intel Xeon 5300 Series	Unknown — not stated by the source
Processor socketKnown for one	LGA 771 (Socket J)	Unknown — not stated by the source
Processor threadsKnown for one	4	Unknown — not stated by the source
TcaseKnown for one	66 °C	Unknown — not stated by the source
Thermal Monitoring TechnologiesKnown for one	Yes	Unknown — not stated by the source
Conflict-Free processorKnown for one	No	Unknown — not stated by the source
Memory2 differ
Internal memory type	DDR2-SDRAM	DDR2-SDRAM
ECC	Yes	Yes
Memory slotsDiffers	4	8
Maximum internal memoryDiffers	8 GB	32 GB
Storage1 differ
Total storage capacity	0 GB	0 GB
Number of HDDs installedKnown for one	2	Unknown — not stated by the source
HDD interface	Serial ATA II	Serial ATA II
Hot-swapDiffers	Yes	No
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	0	0
USB 2.0 ports quantity	0	0
PS/2 ports quantity	0	0
Serial ports quantity	0	0
VGA (D-Sub) ports quantity	0	0
Expansion slotsidentical
PCI Express x8 slotsKnown for one	1	Unknown — not stated by the source
PCI Express x16 slotsKnown for one	1	Unknown — not stated by the source
PCI-X slotsKnown for one	1	Unknown — not stated by the source
Designidentical
Chassis type	Rack (1U)	Rack (1U)
Softwareidentical
Compatible operating systemsKnown for one	Windows Linux	Unknown — not stated by the source
Processor special featuresidentical
Enhanced Intel SpeedStep TechnologyKnown for one	Yes	Unknown — not stated by the source
Intel 64Known for one	Yes	Unknown — not stated by the source
Intel Clear Video TechnologyKnown for one	No	Unknown — not stated by the source
Intel Demand Based SwitchingKnown for one	No	Unknown — not stated by the source
Intel Dual Display Capable TechnologyKnown for one	No	Unknown — not stated by the source
Intel Enhanced Halt StateKnown for one	Yes	Unknown — not stated by the source
Intel FDI TechnologyKnown for one	No	Unknown — not stated by the source
Intel Fast Memory AccessKnown for one	No	Unknown — not stated by the source
Intel Flex Memory AccessKnown for one	No	Unknown — not stated by the source
Intel Rapid Storage TechnologyKnown for one	No	Unknown — not stated by the source
Intel Trusted Execution TechnologyKnown for one	No	Unknown — not stated by the source
Intel VT-x with Extended Page Tables (EPT)Known for one	No	Unknown — not stated by the source
Intel Virtualization Technology (VT-x)Known for one	Yes	Unknown — not stated by the source
Intel Virtualization Technology for Directed I/O (VT-d)Known for one	No	Unknown — not stated by the source
Intel® AES New Instructions (Intel® AES-NI)Known for one	No	Unknown — not stated by the source
Intel® Anti-Theft Technology (Intel® AT)Known for one	No	Unknown — not stated by the source
Intel® Clear Video HD Technology (Intel® CVT HD)Known for one	No	Unknown — not stated by the source
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Known for one	No	Unknown — not stated by the source
Intel® Hyper Threading Technology (Intel® HT Technology)Known for one	No	Unknown — not stated by the source
Intel® InTru™ 3D TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Insider™Known for one	No	Unknown — not stated by the source
Intel® My WiFi Technology (Intel® MWT)Known for one	No	Unknown — not stated by the source
Intel® Quick Sync Video TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Turbo Boost TechnologyKnown for one	No	Unknown — not stated by the source
Intel® Wireless Display (Intel® WiDi)Known for one	No	Unknown — not stated by the source
Processor ARK IDKnown for one	28443	Unknown — not stated by the source
Power1 differ
Redundant power supply (RPS) supportDiffers	No	Yes
Power supply typeKnown for one	Single	Unknown — not stated by the source
Power supplyKnown for one	350 W	Unknown — not stated by the source
Weight & dimensions2 differ
Width	444 mm	444 mm
DepthDiffers	600 mm	686 mm
HeightDiffers	43.6 mm	46.4 mm
WeightKnown for one	12 kg	Unknown — not stated by the source
Other features1 differ
Dimensions (WxDxH)Differs	444 x 600 x 43.6 mm	444 x 686 x 43.4 mm
Networkidentical
Networking featuresKnown for one	Unknown — not stated by the source	2 Broadcom BCM5721 PCI-E LAN

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
