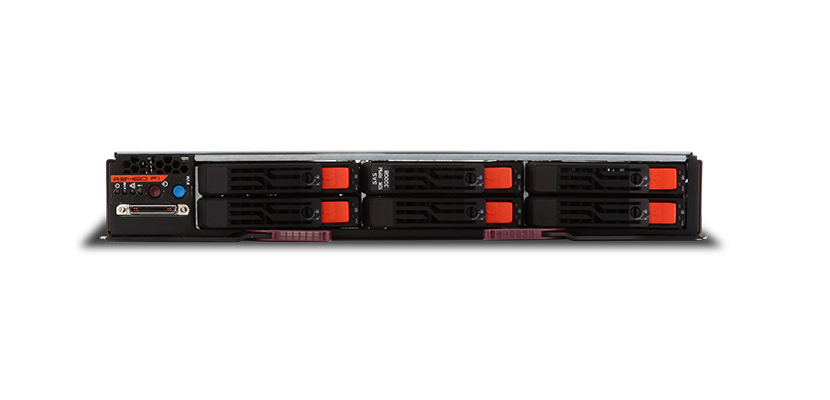

Acer 460 F1
Model 460 F1Part no. TX.R6300.007EAN 8844838970706
129 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory8 GB
- Storage0 GB
- Weight9.6 kg
- Processor manufacturerIntel
- Maximum storage capacity3.6 TB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 8 GB
- Storage
- 0 GB
- Weight
- 9.6 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 3.6 TB
- Brand
- Acer
- Category
- Server
- Model
- 460 F1
- Part numbers
- TX.R6300.007, TX.R6300.002, TX.R6300.003, TX.R6300.005, TX.R6300.006
- EAN / UPC
- 8844838970706, 884483895458, 8844838954584, 884483895465 +6 more
- Also known as
- Acer AB 460 F1 server 0 GB Blade Intel® Xeon® 5000 Sequence E5620 2.4 GHz 8 GB DDR3-SDRAM 2500 W
Specifications
129 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5500 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 18 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3 800/1066 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 77.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 3.6 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82576EB |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| FireWire 800 | No |
| Mini DisplayPorts quantity | 0 |
| S/PDIF in port | No |
| S/PDIF out port | No |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 0 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| PCI Express slots version | 2.0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5, SUSE Linux Enterprise Server 11, VMware ESXi 4, VMware ESX 4 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power supply | 2500 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | FCC, CE |
| Safety | UL, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 42 mm |
| Depth | 480 mm |
| Height | 288 mm |
| Weight | 9.6 kg |
Other features
| Specification | Value |
|---|---|
| Disk array controller | LSI 2008 SAS 2.0 |
| Integrated BMC with IPMI | Yes |
| Mac compatibility | No |
| Ventilation fan(s) | 90mm |
