Product comparison · 2 servers

Acer 310 F1 vs Acer 460 F1

Add a product
  • 86specifications compared
  • 48differ
  • 38identical
  • 55known for one product only

Key differences

  • Processor family
    • Intel® Pentium®
    • Intel® Xeon® 5000 Sequence
  • Processor model
    • G6950
    • E5620
  • Processor frequency
    • 2.8 GHz
    • 2.4 GHz
  • Processor cores
    • 2
    • 4
  • Processor cache
    • 3 MB
    • 12 MB
  • Motherboard chipset
    • Intel® 3420
    • Intel® 5500
  • Memory channels supported by processor
    • Dual
    • Triple
  • Thermal Design Power (TDP)
    • 73 W
    • 80 W

Side by side

Differences highlightedShow differences only
141 specifications
A

Acer

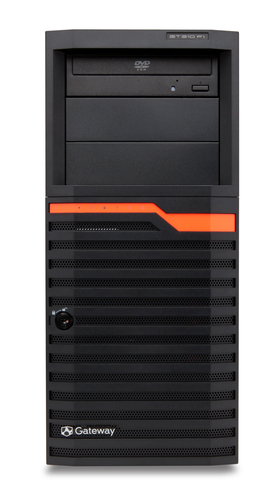

310 F1View product
B

Acer

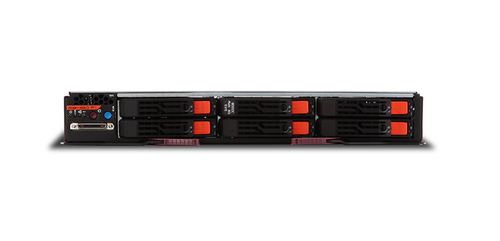

460 F1View product
Processor22 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel® Pentium®Intel® Xeon® 5000 Sequence
Processor modelDiffersG6950E5620
Processor frequencyDiffers2.8 GHz2.4 GHz
Processor boost frequencyKnown for one2.66 GHz
Processor coresDiffers24
Processor cacheDiffers3 MB12 MB
Motherboard chipsetDiffersIntel® 3420Intel® 5500
Memory channels supported by processorDiffersDualTriple
Number of processors installed11
Thermal Design Power (TDP)Differs73 W80 W
Processor cache typeSmart CacheSmart Cache
System bus rateDiffers2.5 GT/s5.86 GT/s
Bus typeDiffersDMIQPI
CPU multiplier (bus/core ratio)Differs2118
Compatible processor seriesKnown for oneIntel® Xeon®
ECC supported by processorDiffersNoYes
Embedded options availableYesYes
Execute Disable BitYesYes
FSB ParityNoNo
Idle StatesYesYes
Maximum internal memory supported by processorDiffers16 GB288 GB
Maximum number of SMP processorsKnown for one2
Memory bandwidth supported by processor (max)Differs17 GB/s25.6 GB/s
Memory clock speeds supported by processorKnown for one800,1066 MHz
Memory types supported by processorDiffersDDR3 1066DDR3 800/1066
Number of QPI linksKnown for one2
Physical Address Extension (PAE)Differs36 bit40 bit
Processor codeKnown for oneSLBV4
Processor codenameDiffersClarkdaleWestmere EP
Processor lithography32 nm32 nm
Processor operating modes64-bit64-bit
Processor package sizeDiffers37.5 x 37.5 mm42.5 X 45 mm
Processor seriesDiffersIntel Pentium G6000 Series for DesktopIntel Xeon 5600 Series
Processor socketDiffersLGA 1156 (Socket H)Socket B (LGA 1366)
Processor threadsDiffers28
SteppingKnown for oneB1
Supported instruction setsKnown for oneSSE4.2
TcaseDiffers72.6 °C77.6 °C
Thermal Monitoring TechnologiesNoNo
Conflict-Free processorNoNo
Intelligent Platform Management Interface (IPMI) supportKnown for oneYes
Graphics & IMC lithographyKnown for one45 nm
Maximum number of PCI Express lanesKnown for one16
Number of Processing Die TransistorsKnown for one382 M
PCI Express configurationsKnown for one1x16, 2x8
Processing Die sizeKnown for one81 mm²
Memory4 differ
Internal memoryDiffers2 GB8 GB
Internal memory typeDDR3-SDRAMDDR3-SDRAM
ECCYesYes
Memory clock speedKnown for one1333 MHz
Memory layout (slots x size)Differs1 x 2 GB2 x 4 GB
Memory slotsDiffers4x DIMM12x DIMM
Maximum internal memoryDiffers16 GB192 GB
Storage3 differ
Maximum storage capacityKnown for one3.6 TB
Total storage capacityKnown for one0 GB
Number of HDDs installedKnown for one0
HDD interfaceSerial ATA, Serial Attached SCSI (SAS)Serial ATA, Serial Attached SCSI (SAS)
HDD sizeDiffers3.5"2.5"
Number of HDDs supportedKnown for one6
RAID supportYesYes
RAID levelsDiffers0, 1, 5, 100, 1, 10
Optical drive typeDiffersDVD-RWNo
Hot-swapKnown for oneYes
Graphicsidentical
Maximum graphics card memoryKnown for one16 MB
On-board graphics cardKnown for oneYes
Number of displays supported (on-board graphics)Known for one2
On-board graphics card base frequencyKnown for one533 MHz
Networkidentical
Network readyKnown for oneYes
Wi-FiKnown for oneNo
BluetoothKnown for oneNo
Cabling technology10/100/1000Base-T(X)10/100/1000Base-T(X)
Ethernet LANYesYes
LAN controllerKnown for oneIntel® 82576EB
Networking featuresKnown for oneGigabit Ethernet
Ports & interfaces1 differ
Ethernet LAN (RJ-45) ports22
USB 2.0 ports quantityDiffers62
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityKnown for one0
DisplayPorts quantityKnown for one0
FireWire 800Known for oneNo
Mini DisplayPorts quantityKnown for one0
S/PDIF in portKnown for oneNo
S/PDIF out portKnown for oneNo
VGA (D-Sub) ports quantity11
PS/2 ports quantityKnown for one2
Serial ports quantityKnown for one1
Expansion slotsidentical
PCI Express x1 slotsKnown for one0
PCI Express x4 slotsKnown for one0
PCI Express x8 slotsKnown for one1
PCI Express x16 slotsKnown for one0
AGP x4 slotsKnown for one0
AGP x8 slotsKnown for one0
PCI Express slots version2.02.0
PCI slotsKnown for one0
PCI-X slotsKnown for one0
Design1 differ
Chassis typeDiffersTower (4U)Blade
Software1 differ
Compatible operating systemsDiffersWindows Server 2008 Windows Server 2008 R2 Windows Server 2003 Red Hat Enterprise Linux 5 SuSE Linux Enterprise Server 11Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5, SUSE Linux Enterprise Server 11, VMware ESXi 4, VMware ESX 4
Operating system installedKnown for oneNo
Processor special features10 differ
CPU configuration (max)Differs12
Enhanced Intel SpeedStep TechnologyYesYes
Intel 64YesYes
Intel Clear Video TechnologyNoNo
Intel Demand Based SwitchingDiffersNoYes
Intel Dual Display Capable TechnologyDiffersYesNo
Intel Enhanced Halt StateYesYes
Intel FDI TechnologyDiffersYesNo
Intel Fast Memory AccessNoNo
Intel Flex Memory AccessNoNo
Intel Rapid Storage TechnologyNoNo
Intel Trusted Execution TechnologyDiffersNoYes
Intel VT-x with Extended Page Tables (EPT)YesYes
Intel Virtualization Technology (VT-x)YesYes
Intel Virtualization Technology for Directed I/O (VT-d)DiffersNoYes
Intel® AES New Instructions (Intel® AES-NI)DiffersNoYes
Intel® Anti-Theft Technology (Intel® AT)NoNo
Intel® Clear Video HD Technology (Intel® CVT HD)NoNo
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)NoNo
Intel® Hyper Threading Technology (Intel® HT Technology)DiffersNoYes
Intel® InTru™ 3D TechnologyNoNo
Intel® Insider™NoNo
Intel® My WiFi Technology (Intel® MWT)NoNo
Intel® Quick Sync Video TechnologyNoNo
Intel® Turbo Boost TechnologyDiffersNo1.0
Intel® Wireless Display (Intel® WiDi)NoNo
Processor ARK IDDiffers4323047925
Power2 differ
Redundant power supply (RPS) supportDiffersNoYes
Number of power supply units11
Power supplyDiffers450 W2500 W
Operational conditionsidentical
Storage temperature (T-T)Known for one10 - 35 °C
Operating relative humidity (H-H)Known for one10 - 90%
Storage relative humidity (H-H)Known for one5 - 95%
Certificatesidentical
Electromagnetic compatibilityKnown for oneFCC, CE
SafetyKnown for oneUL, CB
Weight & dimensions4 differ
WidthDiffers190 mm42 mm
DepthDiffers485 mm480 mm
HeightDiffers420 mm288 mm
WeightDiffers13.6 kg9.6 kg
Other featuresidentical
Disk array controllerKnown for oneLSI 2008 SAS 2.0
Integrated BMC with IPMIKnown for oneYes
Mac compatibilityKnown for oneNo
Ventilation fan(s)Known for one90mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
