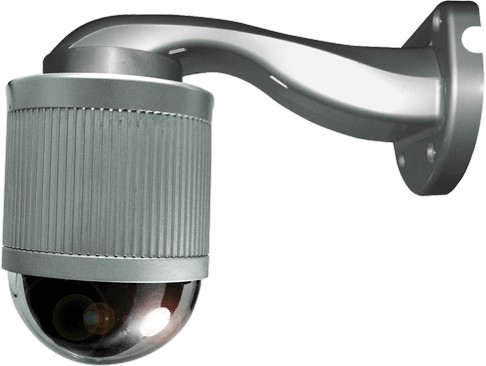

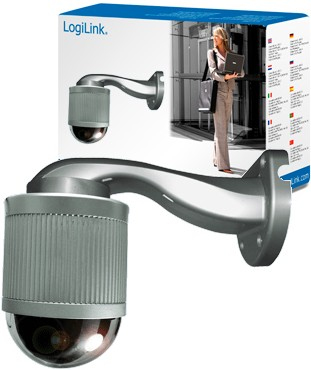

LogiLink WC0014 security camera

LogiLink WC0014 security camera

768 x 494 pixels

Model WC0014EAN 4260113570456

29 specifications
  • Minimum illumination1 lx
  • Sensor typeCCD
  • Focal length range3.9 - 85.9 mm
  • Maximum resolution768 x 494 pixels
  • Ethernet LAN (RJ-45) ports1
  • Active tampering alarmYes
See all specifications

Overview

Minimum illumination
1 lx
Sensor type
CCD
Focal length range
3.9 - 85.9 mm
Maximum resolution
768 x 494 pixels
Ethernet LAN (RJ-45) ports
1
Active tampering alarm
Yes
Brand
LogiLink
Model
WC0014
Part number
WC0014
EAN / UPC
4260113570456
Also known as
LogiLink WC0014 security camera 768 x 494 pixels

Specifications

29 specifications in 12 groups

Camera

Minimum illumination1 lx
Tilt angle range0 - 90°
Pan range0 - 360°
Camera shutter speed1/60 - 1/100000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Focal length range3.9 - 85.9 mm

Video

Maximum resolution768 x 494 pixels
Video formats supportedMPEG4
Frame rate30 fps
Analog signal format systemNTSC, PAL

Network

Supported network protocolsDDNS, DHCP, NTP, TCP/IP, ICPM, SMTP, FTP, HTTP, RTP, RTSP

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes

Security

Active tampering alarmYes
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typePoE
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 85%

System requirements

Minimum RAM256 MB
Minimum processorPentium 4

Other features

Compatible operating systemsWindows 7/XP/ Vista/2000/ME/98
Compliance industry standardsIEEE 802.3
Data transfer rate10 Mbit/s
Dimensions (WxDxH)0 x 145 x 184 mm
Networking featuresFast Ethernet
Power requirements12 V/1.5 A
