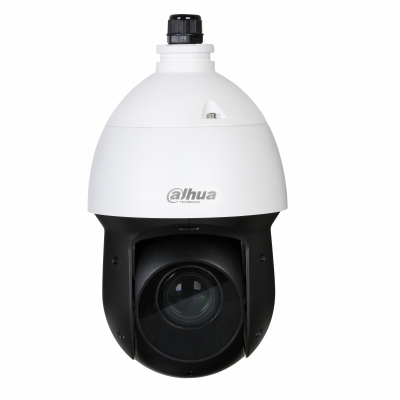

SD49218DB-HC Dome IP security camera Outdoor
Dahua Technology

SD49218DB-HC Dome IP security camera Outdoor

1920 x 1080 pixels

Model SD49218DB-HCPart no. DHT0060036

124 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3 kg
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
3 kg
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
SD49218DB-HC
Part number
DHT0060036
Also known as
Dahua Technology SD49218DB-HC Dome IP security camera Outdoor 1920 x 1080 pixels

Specifications

124 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes4 Pattern, 8 Tour, 5 Pattern, 5 Scan
PTZ protocolsDH-SD, Pelco-P/D
Preset pointsYes
Maximum operating distance100 m
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Light exposure modesAuto, Manual, Shutter priority AE, Aperture priority AE, IRIS priority AE
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Design

Form factorDome
Housing materialMetal
Protection featuresWeatherproof
International Protection (IP) codeIP66
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Tilt control typeElectric
Field of view (FOV) angle69.4°
Angle of rotation180°
Lens viewing angle, horizontal60.6°
Lens viewing angle, vertical34.1°
Lens viewing angle, diagonal69.4°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceAuto, Manual, Indoor, Outdoor, Sodium lamp, Natural, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution2 pixels
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Panoramic camera

Sensor type (panoramic camera)CMOS

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom18x
Digital zoom16x
Detect distance1241.4 m
Observe distance490.3 m
Recognize distance248.3 m
Lens diameter16 cm
Focal length range5-90 mm
Auto focusYes
FocusMotorized
Identify distance124.1 m
Maximum aperture number2.9
Minimum aperture number1.6
Closest focusing distance0.1 m
Detect distance (tele)490.3 m
Detect distance (wide)1241.4 m
Identify distance (tele)124.1 m
Identify distance (wide)124.1 m
Normal focusing range0.1 - 1.5 m
Observe distance (tele)490.3 m
Observe distance (wide)1241.4 m
Recognize distance (tele)248.3 m
Recognize distance (wide)248.3 m

Night vision

Night visionYes
Night vision distance100 m
B/W night vision distance100 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1200 x 1920
Supported video modes1080p, 720p
Frame rate30 fps
NTSC resolutions1920 x 1080 | 704 x 576 | 704 x 480
PAL resolutions1920 x 1080 | 1280 x 720
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)No
Highlight Compensation (HLC)Yes
Image quality adjustmentAutomatic gain control (AGC), White balance

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo
Internal memory128 MB
ROM capacity128 MB
RAM capacity256 MB

Ports & interfaces

RS-485 ports1
Composite video out1
BNC output ports1
Microphone inNo
Terminal block portNo

Security

Alarm input channels2
Alarm output channels1
Detection distance1241.4 m
Digital watermarkYes
Privacy protectionYes

Management features

Cloud-managedNo
Remotely operatedYes

Power

Power source typeDC
AC input voltage12 V
Power consumption (typical)10 W
Power consumption (max)22 W

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Width269.9 mm
Depth160 mm
Height269.9 mm
Diameter16 cm
Weight3 kg
Weight (with stand)3 kg

Packaging data

Package weight4.2 kg

Packaging content

Number of cameras1

Technical details

MountingPTZ
Preferred mounting positionWall
