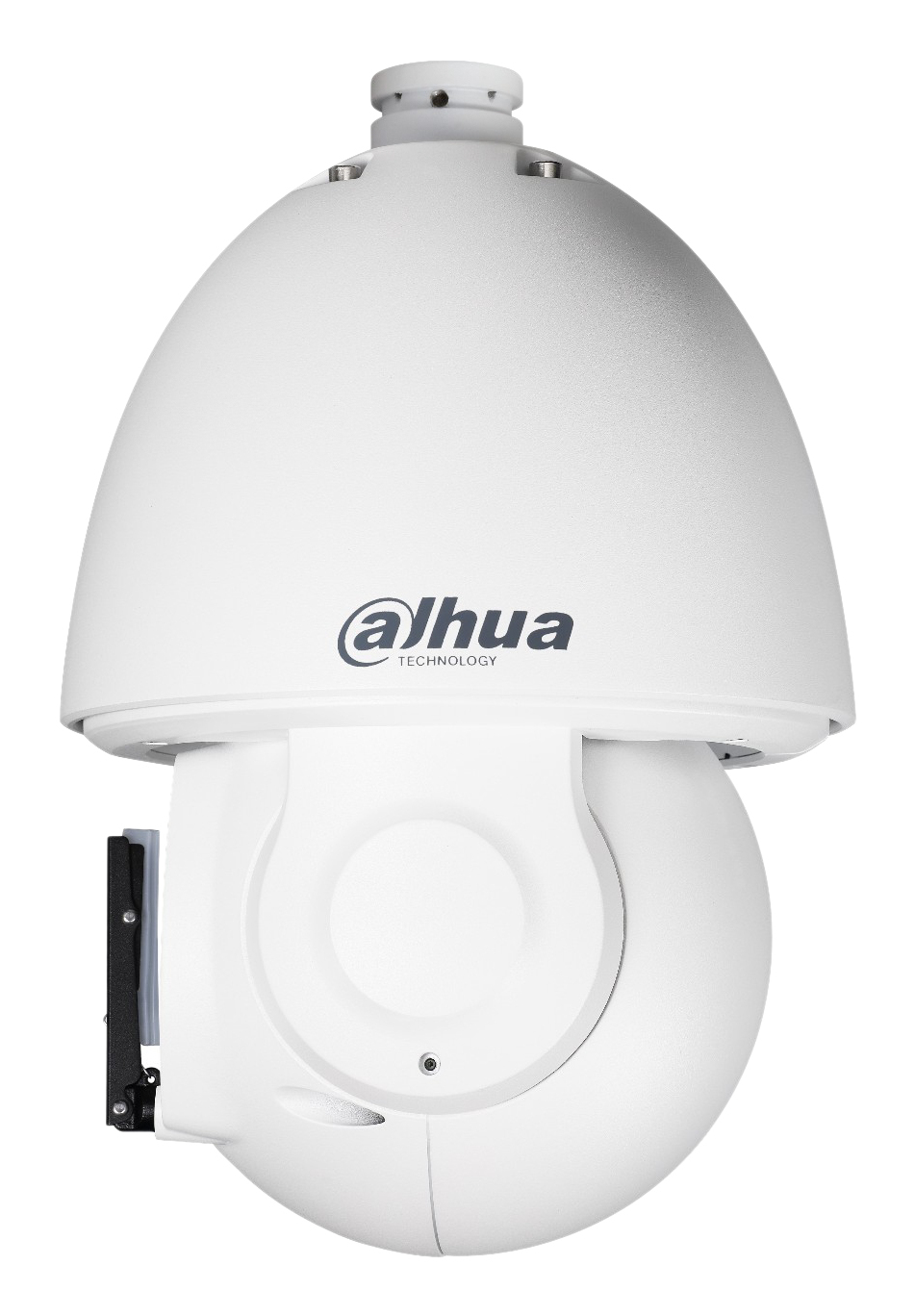

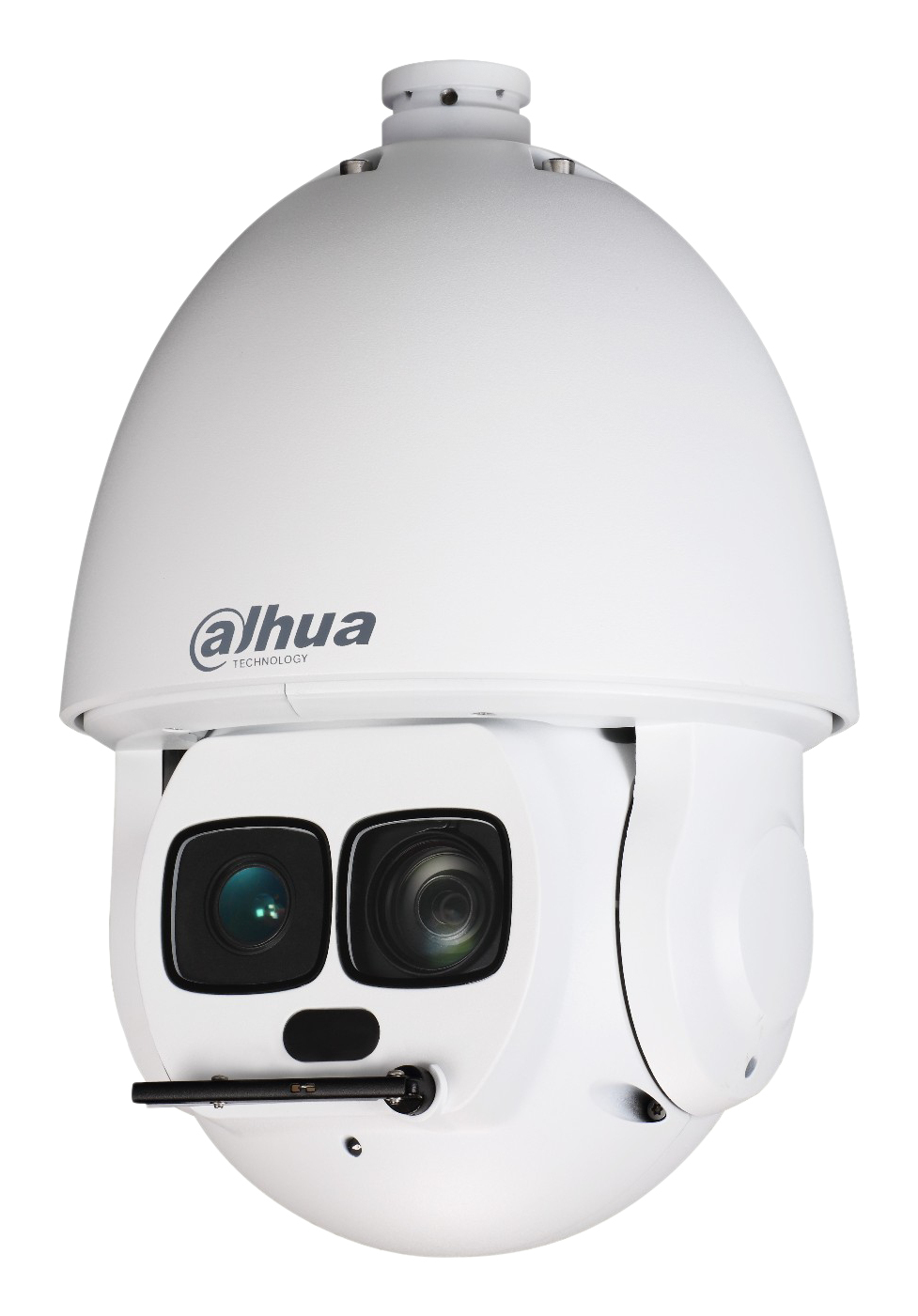

Dahua Technology WizMind DH-SD6AL245GB-HNV security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-SD6AL245GB-HNV security camera Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-SD6AL245GB-HNVEAN 6923172589590

146 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight6.8 kg
  • ColourBlack, White
  • Form factorTurret
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
6.8 kg
Colour
Black, White
Form factor
Turret
Brand
Dahua Technology
Model
DH-SD6AL245GB-HNV
Part number
DH-SD6AL245GB-HNV
EAN / UPC
6923172589590
Also known as
Dahua Technology WizMind DH-SD6AL245GB-HNV security camera Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

146 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 5 Scan, 8 Tour
PTZ protocolsDH-SD, Pelco-P/D
Auto-trackingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
Built-in lightYes
AI software frameworkONNX
Dynamic range120 dB
Light exposure modesAuto, Manual
CertificationCE: CN211FB1 001, 4789976478-2.5-1 FCC: 4790130386-2

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
International Protection (IP) codeIP67
WeatherproofYes
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Field of view (FOV) angle68°
Angle of rotation360°
Lens viewing angle, horizontal68°
Lens viewing angle, vertical41.7°
Lens viewing angle, diagonal75.1°
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s
Number of Privacy masking areas24

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom45x
Digital zoom16x
Detect distance2451.7 m
Observe distance968.4 m
Recognize distance490.3 m
Focal length range3.95 - 177.7 mm
Auto focusYes
Fixed focusNo
FocusMotorized/Manual
Identify distance245.2 m
Maximum aperture number4.95
Minimum aperture number1.6
Closest focusing distance0.1 m
Normal focusing range0.1 - 1 m

Night vision

Night visionYes
Night vision distance550 m
B/W night vision distance550 m
LED typeIR/Laser
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video recordingYes
Frame rate60 fps
Video intelligence analyticYes
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Image quality adjustmentAutomatic gain control (AGC), DNR, Gain, White balance
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.722.1, G.723, G.726, G.729, MPEG-2, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsFTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP; RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS; ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
Number of users20 user(s)
Live viewYes
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity4096 MB
RAM capacity1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
Microphone inYes
Terminal block portYes
DC-in jackYes

Security

Alarm input channels7
Alarm output channels2
Built-in sirenNo
Temperature sensorNo
Fire detectionNo
Password protectionYes
Active tampering alarmYes
Alert notification typeE-mail
Detection distance2451.7 m
HTTPS encryptionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Human detection, Intrusion, Missing object, Tripwire, Vehicle detection
Motion sensorYes
Privacy protectionYes
Security algorithmsHTTPS, SSL/TLS
Video motion detectionYes

Management features

Web-based managementYes
Behavior analysisIntrusion detection
Remotely operatedYes
Smartphone/tablet remote supportYes
Management softwareDMSS, DSS Pro

Power

Power source typeDC, PoE
Power consumption (typical)15 W
Power consumption (max)45 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height382 mm
Diameter24 cm
Weight6.8 kg

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging content

Number of cameras1
