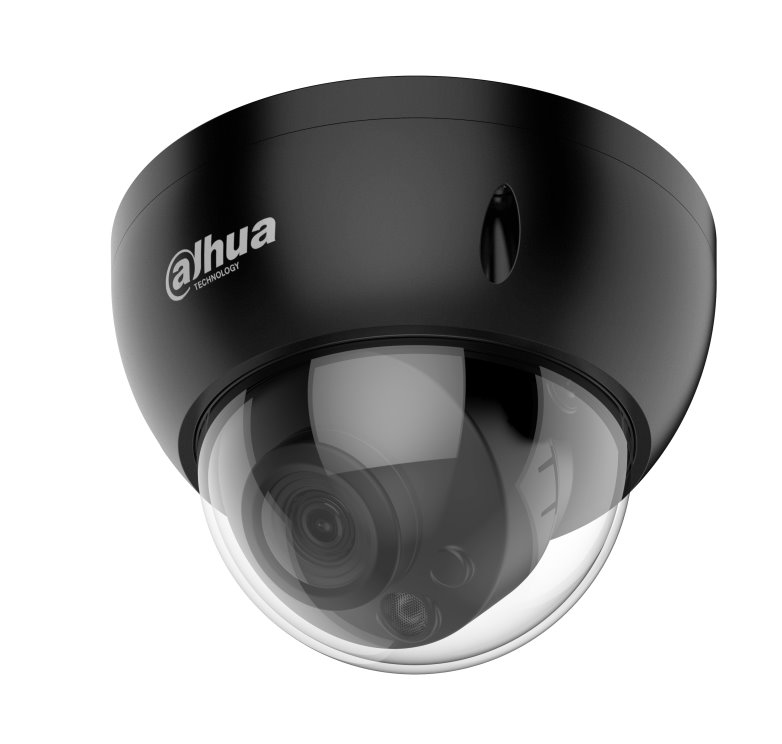

IPC -HDBW5241E-ZE-27135-DC12AC24V-BLACK security camera Dome IP security camera Indoor & outdoor
Dahua Technology

IPC -HDBW5241E-ZE-27135-DC12AC24V-BLACK security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HDBW5241E-ZE-27135-DC12AC24V-BLACK

121 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight910 g
  • ColourBlack
  • Form factorDome
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
910 g
Colour
Black
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5241E-ZE-27135-DC12AC24V-BLACK
Part number
IPC-HDBW5241E-ZE-27135-DC12AC24V-BLACK
Also known as
Dahua Technology IPC -HDBW5241E-ZE-27135-DC12AC24V-BLACK security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

121 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Remote viewingYes
Dynamic range120 dB
Plug and PlayYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0.002 lx
Angle of rotation355°
Lens viewing angle, horizontal109–30
Lens viewing angle, vertical57 - 17°
Lens viewing angle, diagonal131 - 35°
Tilt angle range0 - 65°
Pan range0 - 355°
Auto flipYes
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized/Manual
Identify distance40 m
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)146 m
Detect distance (wide)44 m
Identify distance (tele)15 m
Identify distance (wide)4 m
Observe distance (tele)58 m
Observe distance (wide)18 m
Recognize distance (tele)29 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32 - 8192, 19 - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x
Supported network protocolsTCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Terminal block portYes
DC-in jackYes

Security

Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object
MirrorYes
Motion sensorYes
Motion sensor technologyPassive infrared (PIR) sensor
Privacy protectionYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS PRO, NVR, IVSS, DMSS

Power

Power source typeAC, DC, PoE
AC input voltage24 V
Power consumption (typical)3 W
Power consumption (max)11.5 W
Power consumption (Power over Ethernet (PoE))11.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width159.1 mm
Depth159.1 mm
Height118.1 mm
Diameter15.9 cm
Weight910 g

Packaging data

Package weight1.22 kg

Packaging content

Number of cameras1
