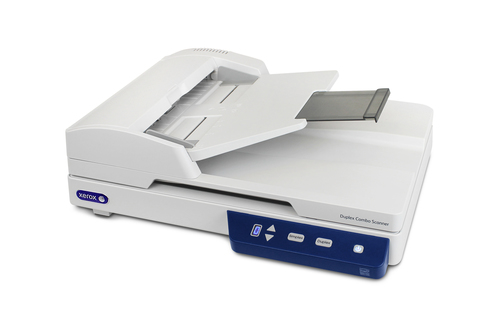

Duplex Combo Scanner
Model Duplex Combo ScannerPart no. 100N03448EAN 4711860807123
58 specifications
- Weight2.7 kg
- ColourWhite
- Maximum scan size216 x 297 mm
- Scanner typeFlatbed & ADF scanner
- Sensor typeCIS
- Auto document feeder (ADF) input capacity35 sheets
Overview
- Weight
- 2.7 kg
- Colour
- White
- Maximum scan size
- 216 x 297 mm
- Scanner type
- Flatbed & ADF scanner
- Sensor type
- CIS
- Auto document feeder (ADF) input capacity
- 35 sheets
- Brand
- Xerox
- Category
- Scanner
- Model
- Duplex Combo Scanner
- Part numbers
- 100N03448, 0DXT/100N03448
- EAN / UPC
- 4711860807123
- Also known as
- Xerox Duplex Combo Scanner Flatbed & ADF scanner A4 White
Specifications
58 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 297 mm |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 25 ppm |
| ADF scan speed (greyscale, A4) | 25 ppm |
| ADF scan speed (colour, A4) | 25 ppm |
| Duplex ADF scan speed (b/w, A4) | 50 ipm |
| Duplex ADF scan speed (colour, A4) | 50 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Flatbed & ADF scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 1500 pages |
| Scan drivers | ISIS, TWAIN, WIA |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 35 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Photo paper, Plastic Card |
| Auto Document Feeder (ADF) media weight | 60 - 105 g/m² |
| Maximum scan area (Flatbed) | 216 x 297 mm |
| Minimum scan area (Flatbed) | 13 x 13 mm |
| Maximum scan area (ADF) | 216 x 297 mm |
| Minimum scan area (ADF) | 76 x 150 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Power supply type | AC |
| Power consumption (standby) | 6 W |
| Power consumption (off) | 0.5 W |
| Power consumption (PowerSave) | 2 W |
| Input voltage | 100 - 240 V |
| Output current | 1.5 A |
| Output voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 402 mm |
| Depth | 330 mm |
| Height | 127 mm |
| Weight | 2.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Software CD | Yes |
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
| Bundled software | ABBYY Business Card Reader, ABBYY Fine Reader Sprint |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks |
| Minimum RAM | 2048 MB |
| Minimum processor | Intel Core 2 Duo 2 GHz |
| Minimum storage drive space | 350 MB |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Background colours | White |
| Certification | UL/C-UL, FCC B, CE, CB, WEEE (CFE), RCM, USB-IF, CCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
