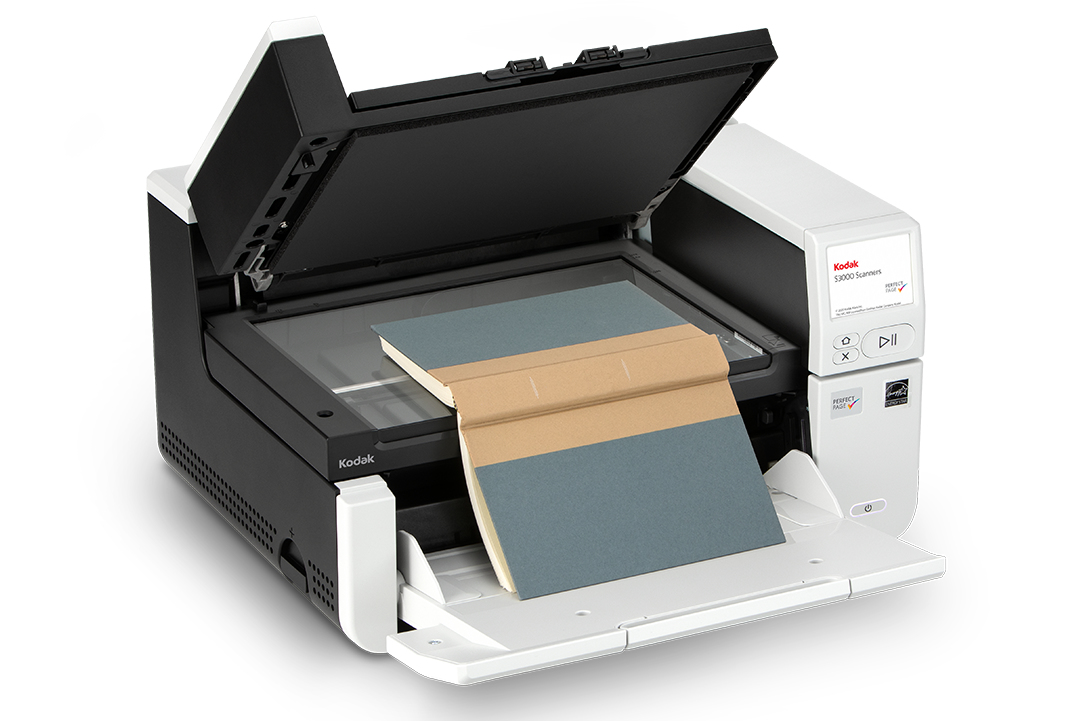

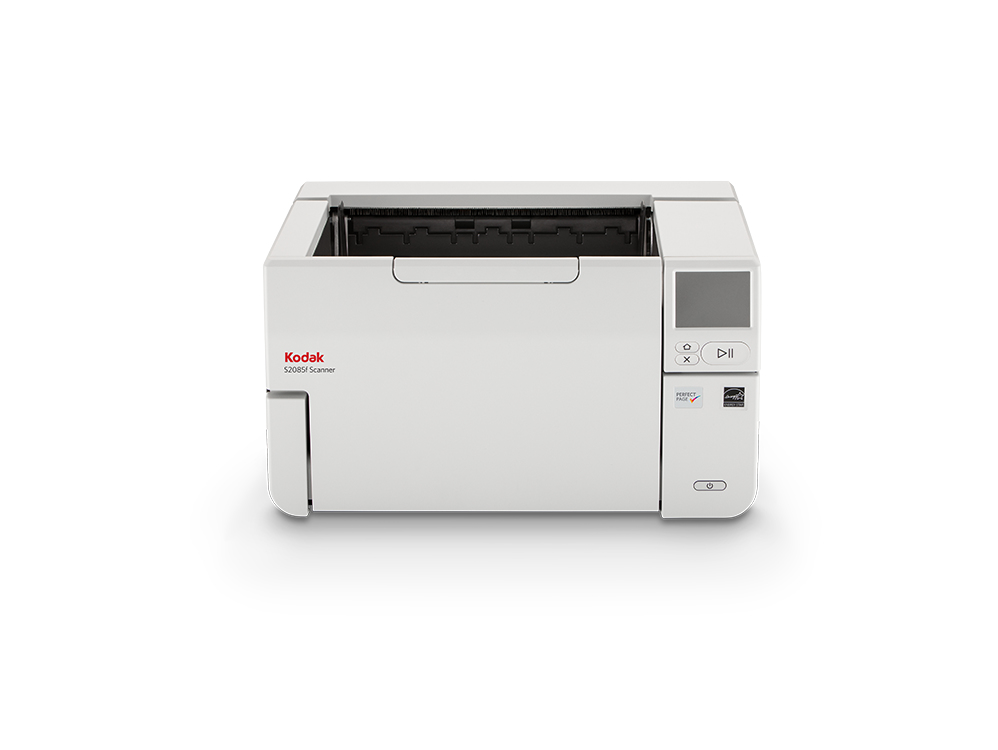

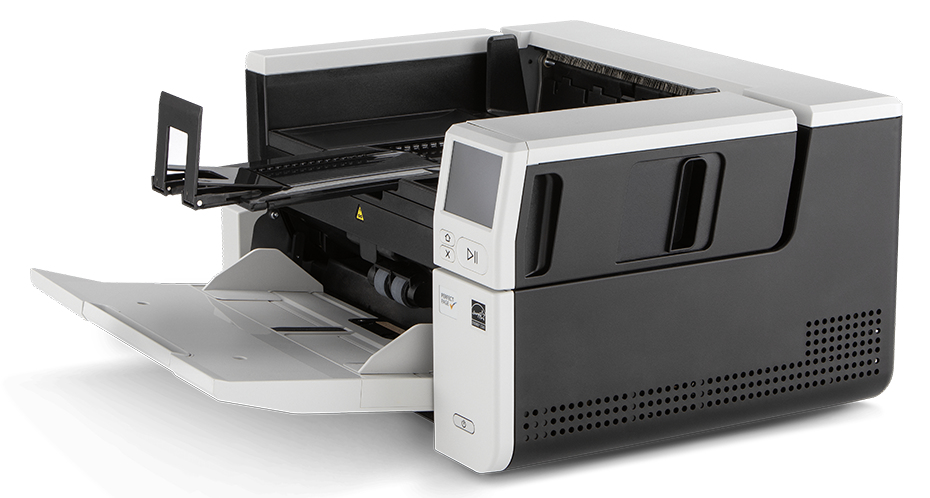

Kodak Alaris Kodak S2085F Flatbed & ADF scanner
Kodak Alaris

Kodak S2085F Flatbed & ADF scanner

600 x 600 DPI A4 Black, White

Model S2085FPart no. 8001703EAN 041778001707

121 specifications
  • Display8.89 cm (3.5")
  • Weight16.8 kg
  • ColourBlack, White
  • Maximum scan size216 x 4060 mm
  • Scanner typeFlatbed & ADF scanner
  • Sensor typeDual CIS
See all specifications

Overview

Display
8.89 cm (3.5")
Weight
16.8 kg
Colour
Black, White
Maximum scan size
216 x 4060 mm
Scanner type
Flatbed & ADF scanner
Sensor type
Dual CIS
Brand
Kodak Alaris
Category
Scanner
Model
S2085F
Part number
8001703
EAN / UPC
041778001707
Also known as
Kodak S2085F Flatbed & ADF scanner 600 x 600 DPI A4 Black, White

Specifications

121 specifications in 17 groups

Scanning

Maximum scan size216 x 4060 mm
Enhanced scan resolution1200 x 1200 DPI
Optical scanning resolution600 x 600 DPI
Colour scanningYes
Duplex scanningYes
Input colour depth48 bit
Input greyscale depth10 bit
Output colour depth24 bit
Output greyscale depth8 bit
Output monochrome depth1 bit
Film scanningNo
Greyscale levels256
ADF scan speed (b/w, A4)85 ppm
ADF scan speed (greyscale, A4)85 ppm
ADF scan speed (colour, A4)85 ppm
Flatbed scan speed (b/w, A4)7 sec/page
Duplex ADF scan speed (b/w, A4)170 ipm
Duplex ADF scan speed (colour, A4)170 ipm
Black/white scanning colour modesGrayscale, Monochrome
Pad lifetime250000 pages
Roller lifetime250000 pages

Design

Scanner typeFlatbed & ADF scanner
Built-in displayYes
Product colourBlack, White
DisplayLCD
Display diagonal8.89 cm (3.5")
TouchscreenYes
Colour displayYes

Performance

Sensor typeDual CIS
Light sourceRGB LED
Scan file formatsDOC, JPEG, PDF, PNG, RTF, TIFF, XLS
Daily duty cycle (max)20000 pages
Maximum duty cycle20000 pages per month
Built-in OCRYes
Calibration functionYes
Scan toCIFS, Cloud, E-mail, Fax, File, Image, OCR, PC, SMB, TWAIN, WIA
Barcode readerYes
Button functionsB/W scan, Color scan, Copy, E-mail, Grayscale scan, Scan
Scan driversISIS, Kofax VRS, SANE, TWAIN, WIA
Scanner error detectionYes
Ultrasonic double sheet detectionYes
Scanning noise level60 dB
Built-in processorYes

Input capacity

Standard input capacity300 sheets
Auto document feeder (ADF) input capacity300 sheets

Paper handling

Maximum ISO A-series paper sizeA4
Scanning media types supportedBusiness Card, Card stock, Envelopes, Photo paper, Plain paper, Plastic Card, Post Card(JPN), Recycled paper, Thick paper, Thin paper
Long-paper modeYes
Multi feed detectionYes
ISO A-series sizes (A0...A9)A4, A5, A6, A7, A8
ISO B-series sizes (B0...B9)B5, B6, B7, B8
LegalYes
LetterYes
Media thickness (min)1.5 mm
Card thickness (max)1.5 mm
Auto Document Feeder (ADF) media weight27 - 433 g/m²
Maximum scan width21.6 cm
Maximum scan length4.06 m
Maximum scan area (Flatbed)216 x 300 mm
Minimum scan area (Flatbed)10 x 10 mm
Maximum scan area (ADF)216 x 4060 mm
Minimum scan area (ADF)63.5 x 71.1 mm

Ports & interfaces

USB portYes
USB version3.2 Gen 1 (3.1 Gen 1)
USB connector typeUSB Type-A, USB Type-B
Optional connectivityEthernet

Network

Ethernet LANYes
Security algorithmsHTTPS, SSL/TLS, TLS
Supported network protocolsTCP/IP, DHCP

Power

Power consumption (typical)50 W
Power supply typeAC
Power consumption (standby)0.3 W
Power consumption (off)0.3 W
AC input frequency50 - 60 Hz
Power consumption (PowerSave)4 W
Sleep modeYes
Input voltage100 - 240 V
Power consumption (sleep)4 W
Power supply50 W
Auto power offYes
Auto power off after120 min

Weight & dimensions

Width457.2 mm
Depth370.8 mm
Height254 mm
Weight16.8 kg

Packaging content

ManualYes
Software CDYes
Warranty cardYes
AC adapter includedYes
ADF paper chuteYes
Cables includedAC, USB
Quick start guideYes
StackerYes
Drivers includedYes
Bundled softwareCapture Pro Limited Edition Smart Touch

Sustainability

Sustainability certificatesENERGY STAR, EPEAT Gold

System requirements

Compatible operating systemsWINDOWS 10 (32 Bit und 64 Bit) WINDOWS 7 SP1 (32 Bit und 64 Bit) WINDOWS 8.1 (32 Bit und 64 Bit) WINDOWS Server 2012 X64 Editionen WINDOWS Server 2016 X64 Editionen WINDOWS Server 2019 X64 Editionen Ubuntu 16.04 64-Bit und 32-Bit Ubuntu 18.04 64-Bit Neokylin-NKLD-V7_U2-ZX64-REL-build54
Linux operating systems supportedUbuntu 16.04, Ubuntu 18.04 LTS
Mac compatibilityNo
Minimum system requirementsINTEL CORE i3, mit @ 3.5 GHz oder mehr, USB-Port 3.0 (Super Speed) oder 2.0 (High Speed), 3.43 GB RAM oder mehr
Server operating systems supportedWindows Server 2012, Windows Server 2016, Windows Server 2019
USB requiredNo
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris

Operational conditions

Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)15 - 80%
Operating temperature (T-T)50 - 95 °F

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes

Other features

Network readyYes
Recommended system requirementsIntel Core i3 3.5 GHz+, USB port 3.0/2.0, 3.43 GB RAM+
Ethernet LAN data rates10,100,1000 Mbit/s
Dimensions (WxDxH)457.2 x 370.84 x 254 mm
Compliance certificatesCE, RoHS, Low Voltage Directive (LVD)
Networking featuresDHCP oder Statische IP
Power managementYes
Scan speed (ADF, A4)85 ppm
CertificationS mark, RCM, cTUVus & ICES-003, CCC, CE, GS Mark, BIS, VCCI, NOM, EAC, KC, BSMI, cTUVus & FCC
Minimum scan size63.5 x 71.1

Technical details

Linear (1D) barcodes supportedCodabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E
PC connectionUSB 3.2 Gen 1 (3.1 Gen 1)
Programming functionYes

Logistics data

Harmonized System (HS) code84716070
