Kodak Alaris Kodak S2060W ADF scanner

Kodak S2060W ADF scanner

600 x 600 DPI A4 Black, White

Model S2060WPart no. 1015114EAN 041771015114

87 specifications

Display8.89 cm (3.5")
Power36 W
Weight7 kg
ColourBlack, White
Maximum scan size216 x 3000 mm
Scanner typeADF scanner

See all specifications

Overview

Display: 8.89 cm (3.5")
Power: 36 W
Weight: 7 kg
Colour: Black, White
Maximum scan size: 216 x 3000 mm
Scanner type: ADF scanner

Brand: Kodak Alaris
Category: Scanner
Model: S2060W
Part number: 1015114
EAN / UPC: 041771015114
Also known as: Kodak S2060W ADF scanner 600 x 600 DPI A4 Black, White

Specifications

87 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	216 x 3000 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Film scanning	No
Greyscale levels	256
ADF scan speed (b/w, A4)	60 ppm
ADF scan speed (greyscale, A4)	60 ppm
ADF scan speed (colour, A4)	60 ppm
Duplex ADF scan speed (b/w, A4)	120 ipm
Duplex ADF scan speed (colour, A4)	120 ipm
Scan speed (b/w, high res, A4)	60 sec/page
Scan speed (b/w, low res, A4)	60 sec/page
Scan speed (colour, high res, A4)	60 sec/page
Scan speed (colour, low res, A4)	60 sec/page
Black/white scanning colour modes	Grayscale

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Black, White
Display	LCD
Display diagonal	8.89 cm (3.5")
Touchscreen	Yes

Performance

Specification	Value
Sensor type	Dual CIS
Light source	RGB LED
Scan file formats	BMP, CSV, DOC, JPG, PDF, PNG, TIFF, TXT, XLS
Daily duty cycle (max)	7000 pages
Built-in translator	No
Scan to	Cloud, E-mail, E-mail Server, File, Image, OCR, PC, TWAIN, WIA
Barcode reader	Yes
Button functions	Cancel, Off, On
Scan drivers	ISIS, TWAIN, WIA
Built-in processor	Yes
Processor frequency	1500 MHz
Text-to-speech technology	No

Input capacity

Specification	Value
Standard input capacity	80 sheets
Auto document feeder (ADF) input capacity	80 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Envelopes, Plain paper, Plastic Card, Recycled paper, Reflective, Thick paper, Thin paper
Multi feed detection	Yes
Legal	Yes
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan width	21.6 cm
Maximum scan length	3 m
Maximum scan area (ADF)	215 x 155.6 mm
Minimum scan area (ADF)	52 x 52 mm

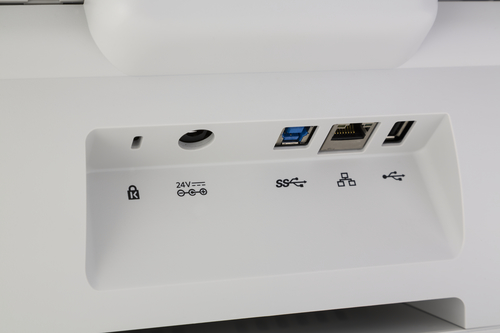

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
Standard interfaces	Ethernet, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes

Power

Specification	Value
Power consumption (typical)	36 W
Power supply type	AC
Power consumption (standby)	3 W
Power consumption (off)	5 W
AC input frequency	50 - 60 Hz
Power consumption (PowerSave)	5 W
Input voltage	100-240 V
Power supply	36 W

Weight & dimensions

Specification	Value
Width	312 mm
Depth	269 mm
Height	182.5 mm
Weight	7 kg

Packaging content

Specification	Value
ADF paper chute	Yes
Cables included	AC, USB
Stacker	Yes
Drivers included	Yes
Bundled software	WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Capture Pro Limited Edition, Smart Touch; LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Minimum RAM	3430 MB
Minimum processor	INTEL CORE i3 - 4150 processor
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Operating temperature (T-T)	50 - 95 °F

Other features

Specification	Value
Downloadable software	Capture Pro Limited Edition, Smart Touch
Selectable background colour	No
Certification	EPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark), CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark), Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B), China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark), EN55022:2010 ITE Emissions (Class B), EN55024

Technical details

Specification	Value
Linear (1D) barcodes supported	Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, PDF417, U.P.C.
Maximum paper size	216 x 3000 mm
PC connection	USB 3.2 Gen 1 (3.1 Gen 1)
Power	36 W
Relative humidity	15 - 80%
Scan technology	Dual CIS

Logistics data

Specification	Value
Harmonized System (HS) code	84716070
