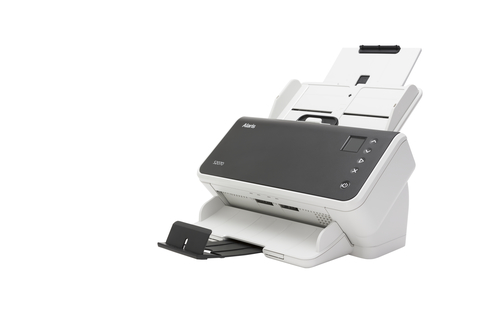

Kodak Alaris S2050 Scanner

S2050 Scanner

Model S2050 ScannerPart no. S2050 Scanner test 3

95 specifications

Display3.81 cm (1.5")
Power36 W
Weight3.3 kg
ColourBlack, White
Maximum scan size216 x 3000 mm
Scanner typeADF scanner

See all specifications

Overview

Display: 3.81 cm (1.5")
Power: 36 W
Weight: 3.3 kg
Colour: Black, White
Maximum scan size: 216 x 3000 mm
Scanner type: ADF scanner

Brand: Kodak Alaris
Category: Scanner
Model: S2050 Scanner
Part number: S2050 Scanner test 3
Also known as: Kodak Alaris Alaris S2050

Specifications

95 specifications in 15 groups

Scanning

Specification	Value
Maximum scan size	216 x 3000 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Film scanning	No
Greyscale levels	256
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (greyscale, A4)	50 ppm
ADF scan speed (colour, A4)	50 ppm
Flatbed scan speed (b/w, A4)	5 sec/page
Duplex ADF scan speed (b/w, A4)	100 ipm
Duplex ADF scan speed (colour, A4)	100 ipm
Black/white scanning colour modes	Grayscale

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Black, White
Display	LCD
Display diagonal	3.81 cm (1.5")
Touchscreen	No

Performance

Specification	Value
Sensor type	CMOS dual CIS
Light source	RGB LED
Scan file formats	BMP, CSV, JPG, OCR, PDF, PNG, RTF, TIFF, TXT, XLS
Daily duty cycle (max)	5000 pages
Built-in translator	No
Scan to	Cloud, E-mail, E-mail Server, File, Image, OCR, PC, TWAIN, WIA
Barcode reader	Yes
Button functions	Cancel, Down, Off, On, Scan, Up
Scan drivers	ISIS, TWAIN, WIA
Scanner error detection	Yes
Ultrasonic double sheet detection	Yes
Scanning noise level	50 dB
Built-in processor	Yes
Processor frequency	1500 MHz
Text-to-speech technology	No

Input capacity

Specification	Value
Standard input capacity	80 sheets
Auto document feeder (ADF) input capacity	80 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
Scanning media types supported	Business Card, Card stock, Envelopes, Plain paper, Plastic Card, Post Card(JPN), Recycled paper, Thick paper, Thin paper
Long-paper mode	Yes
Multi feed detection	Yes
Legal	Yes
Letter	Yes
Auto Document Feeder (ADF) media weight	34 - 413 g/m²
Maximum scan width	21.6 cm
Maximum scan length	3 m
Maximum scan area (ADF)	216 x 356 mm
Minimum scan area (ADF)	52 x 52 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connector type	USB Type-B
Standard interfaces	USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1)

Power

Specification	Value
Power consumption (typical)	36 W
Power supply type	AC
Power consumption (standby)	3 W
Power consumption (off)	0.5 W
AC input frequency	50 - 60 Hz
Power consumption (PowerSave)	3 W
Input voltage	100-240 V
Power supply	36 W
Auto power off	Yes
Auto power off after	240 min

Weight & dimensions

Specification	Value
Width	312 mm
Depth	269 mm
Height	182.5 mm
Weight	3.3 kg

Packaging content

Specification	Value
AC adapter included	Yes
ADF paper chute	Yes
Cables included	AC, USB
Quick start guide	Yes
Stacker	Yes
Drivers included	Yes
Bundled software	WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Alaris Capture Pro Limited, Smart Touch, LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Minimum RAM	3430 MB
Minimum processor	INTEL CORE i3 - 4150 processor
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Operating temperature (T-T)	50 - 95 °F

Certificates

Specification	Value
Green (Eco) compliant	Yes

Other features

Specification	Value
Compliance certificates	RoHS
Downloadable software	Capture Pro Limited Edition, Smart Touch
Selectable background colour	No
Certification	EPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark), CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark), Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B), China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark), EN55022:2010 ITE Emissions (Class B), EN55024

Technical details

Specification	Value
Linear (1D) barcodes supported	Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, U.P.C.
Maximum paper size	216 x 3000 mm
PC connection	USB 3.2 Gen 1 (3.1 Gen 1)
Power	36 W
Programming function	Yes
Relative humidity	15 - 80%
Scan technology	Dual CIS
