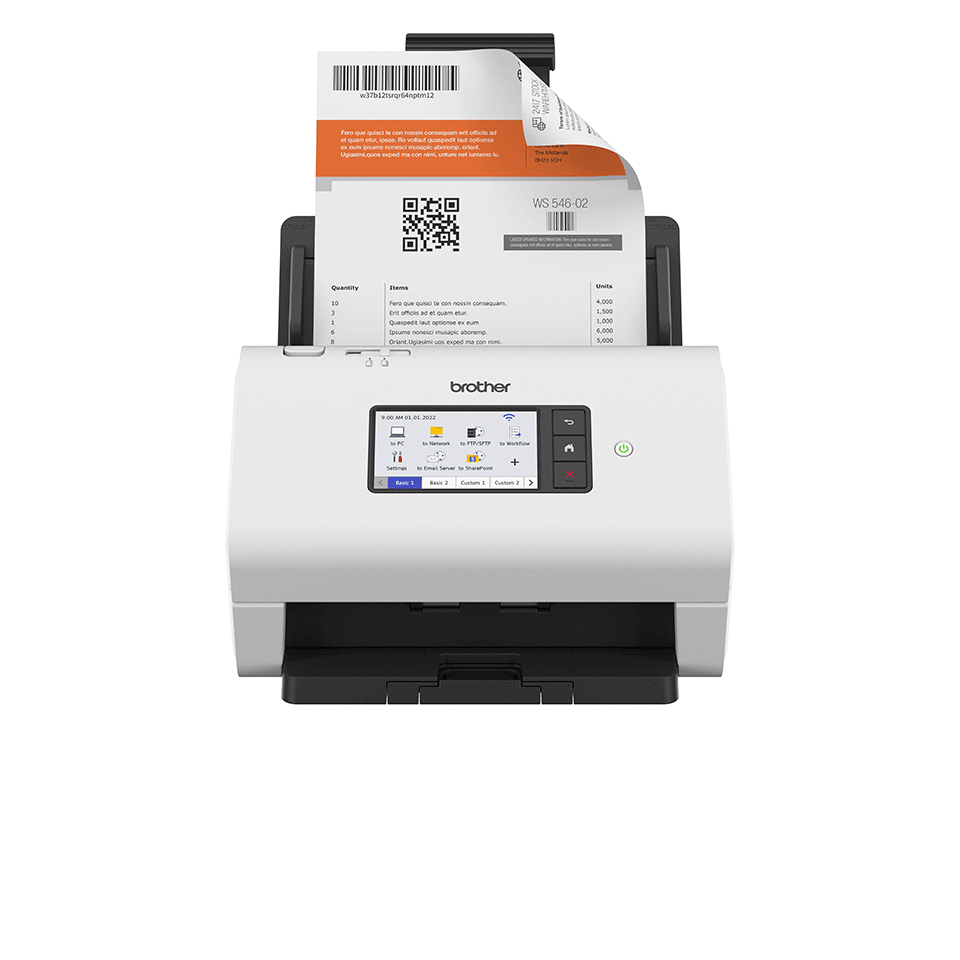

ADS-4900W scanner ADF + Sheet-fed scanner

ADS-4900W scanner ADF + Sheet-fed scanner

600 x 600 DPI A4 Black, White

Model ADS-4900WPart no. ADS4900WZU1NWLTEAN 3234424900050

88 specifications

Display10.9 cm (4.3")
Weight3.81 kg
ColourBlack, White
Maximum scan size215.9 x 355.6 mm
Scanner typeADF + Sheet-fed scanner
Sensor typeDual CIS

See all specifications

Overview

Display: 10.9 cm (4.3")
Weight: 3.81 kg
Colour: Black, White
Maximum scan size: 215.9 x 355.6 mm
Scanner type: ADF + Sheet-fed scanner
Sensor type: Dual CIS

Brand: Brother
Category: Scanner
Model: ADS-4900W
Part numbers: ADS4900WZU1NWLT, ADS-4900W, ADS4900WZU1, ADS4900WT, ADS4900WF5
EAN / UPC: 3234424900050, 012502666363, 4977766814768, 4977766814775 +2 more
Also known as: Brother ADS-4900W scanner ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White

Specifications

88 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	215.9 x 355.6 mm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	60 ppm
ADF scan speed (colour, A4)	60 ppm
Duplex ADF scan speed (b/w, A4)	120 ipm
Duplex ADF scan speed (colour, A4)	120 ipm

Design

Specification	Value
Scanner type	ADF + Sheet-fed scanner
Built-in display	Yes
Product colour	Black, White
Display	LCD
Display diagonal	10.9 cm (4.3")
Touchscreen	Yes
Colour display	Yes
Control type	Touch

Performance

Specification	Value
Sensor type	Dual CIS
Light source	LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	9000 pages
Maximum duty cycle	180000 pages per month
Scan to	E-mail Server, FTP, HTTP, PC, SMB
Scan drivers	ISIS, SANE, TWAIN, WIA
Ultrasonic sensor	Yes
Scanning noise level	62 dB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode	Yes
Media thickness (min)	0.08 mm
Card thickness (max)	1.32 mm
Paper tray media weight	25 - 413 g/m²
Auto Document Feeder (ADF) media weight	25 - 413 g/m²
Maximum scan width	21.6 cm
Maximum scan length	5 m

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Security algorithms	AES, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, TLS, WEP, WPA-PSK, WPA2-AES, WPA2-PSK, WPA3
IPv6 support	Yes
Supported network protocols (IPv4)	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
Supported network protocols (IPv6)	RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6

Power

Specification	Value
Power consumption (typical)	34 W
Power supply type	AC
Power consumption (standby)	7.7 W
Power consumption (off)	0.1 W
Sleep mode	Yes
Power consumption (sleep)	1.7 W
Output current	1.9 A
Output voltage	24 V
Auto power off	Yes

Weight & dimensions

Specification	Value
Width	288 mm
Depth	334 mm
Height	393 mm
Weight	3.81 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	393 mm
Package depth	288 mm
Package height	334 mm
Package weight	4.6 kg

Packaging content

Specification	Value
Cables included	AC, USB

System requirements

Specification	Value
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Other features

Specification	Value
Cable lock slot	Yes
Spare part retention	5 year(s)
Certification	GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0

Technical details

Specification	Value
Pallet type	800 x 1200 mm

Logistics data

Specification	Value
Products per pallet	40 pc(s)
Country of origin	China
Harmonized System (HS) code	84716070
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	40 pc(s)
Master (outer) cases per pallet layer	8 pc(s)
Pallet gross height	18.1 cm
Pallet gross weight	186 kg
