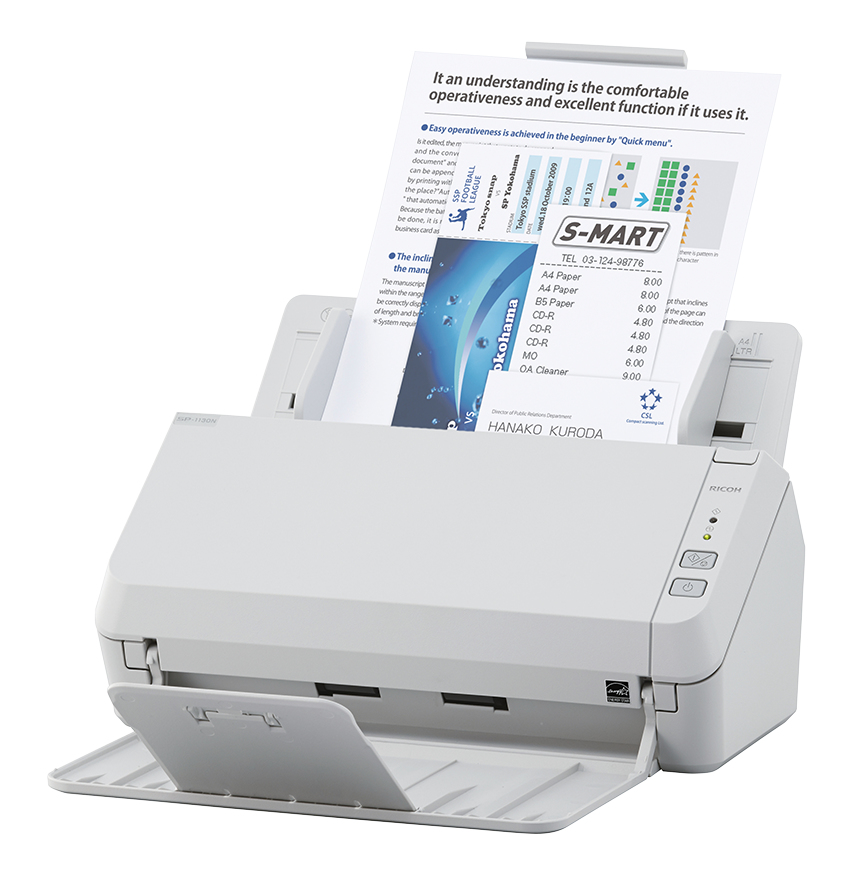

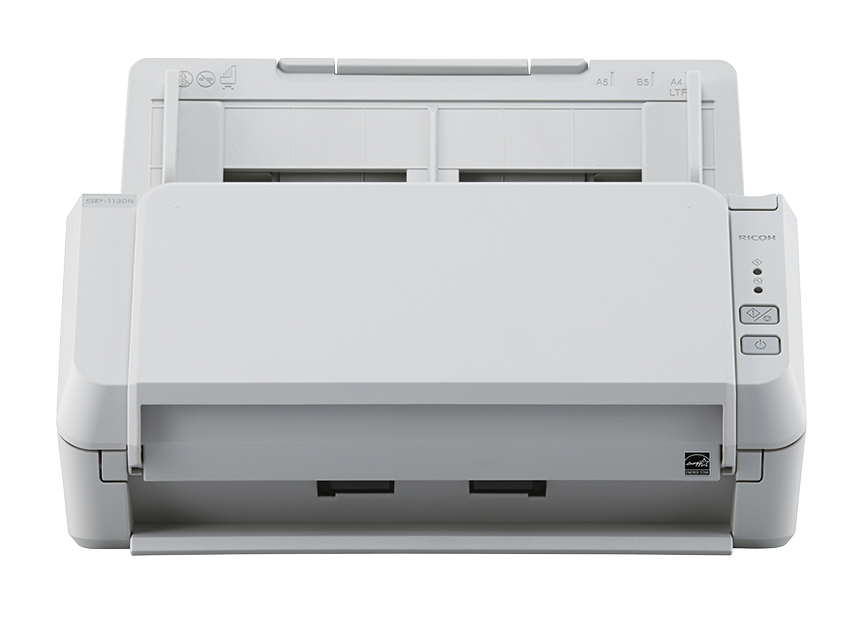

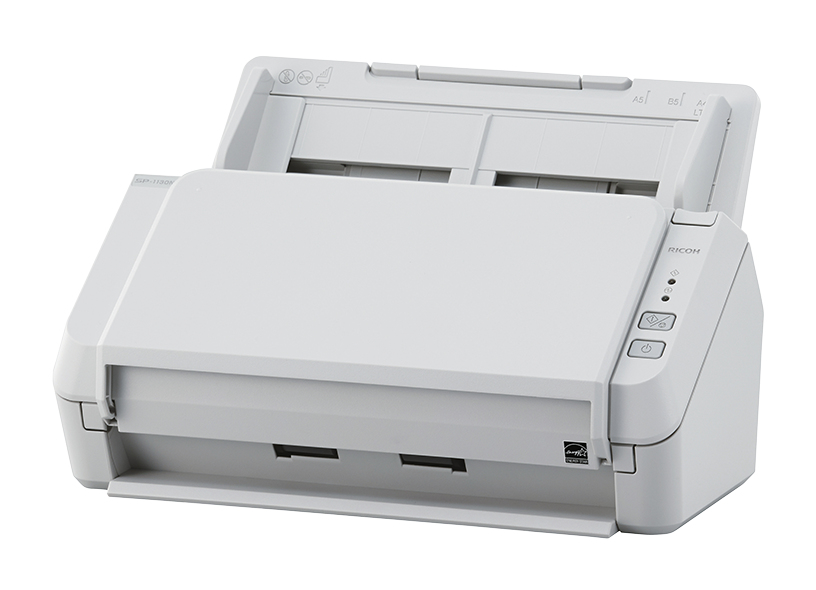

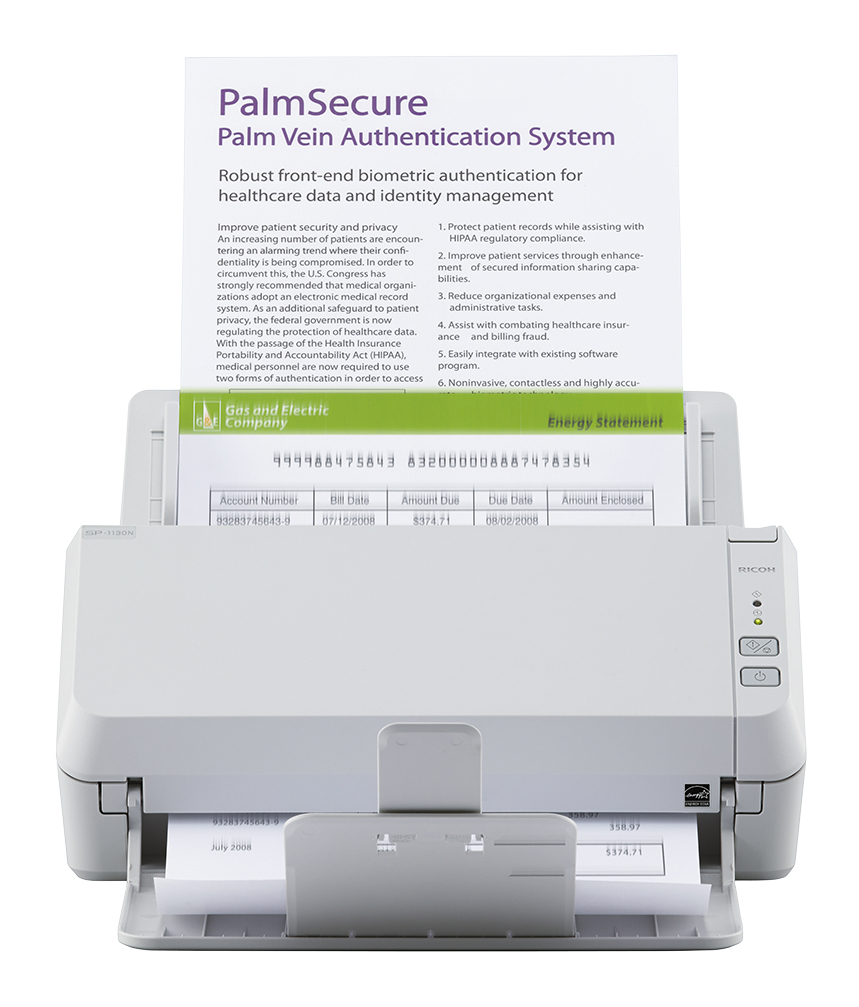

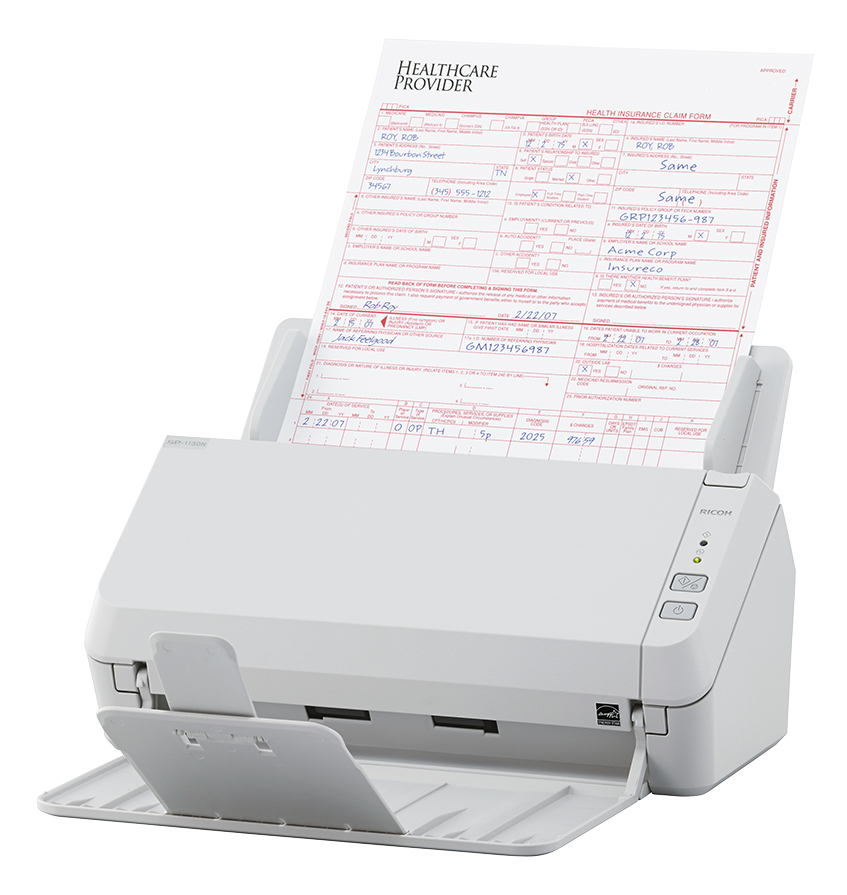

SP-1130N ADF scanner
600 x 600 DPI A4 Grey
Model SP-1130NPart no. PA03811-B025EAN 097564309687
35 specifications
- Weight2.5 kg
- ColourGrey
- Maximum scan size210 x 297 mm
- Scanner typeADF scanner
- Sensor typeCMOS dual CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.5 kg
- Colour
- Grey
- Maximum scan size
- 210 x 297 mm
- Scanner type
- ADF scanner
- Sensor type
- CMOS dual CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Ricoh
- Category
- Scanner
- Model
- SP-1130N
- Part numbers
- PA03811-B025, PA03811-B021
- EAN / UPC
- 097564309687, 4939761311642
- Also known as
- Ricoh SP-1130N ADF scanner 600 x 600 DPI A4 Grey
Specifications
35 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 210 x 297 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 30 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | No |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS dual CIS |
| Light source | RGB LED |
| Scan file formats | |
| Scan drivers | ISIS, TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power supply type | AC |
| Power consumption (off) | 0.3 W |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 298 mm |
| Depth | 135 mm |
| Height | 133 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
