ScanSnap SV600
Model ScanSnap SV600Part no. PA03641-B301EAN 4939761308734
71 specifications
- Weight3 kg
- ColourBlack, White
- Maximum scan size432 x 300 mm
- Scanner typeOverhead scanner
- Sensor typeCCD
- Maximum ISO A-series paper sizeA3
Overview
- Weight
- 3 kg
- Colour
- Black, White
- Maximum scan size
- 432 x 300 mm
- Scanner type
- Overhead scanner
- Sensor type
- CCD
- Maximum ISO A-series paper size
- A3
- Brand
- Ricoh
- Category
- Scanner
- Model
- ScanSnap SV600
- Part number
- PA03641-B301
- EAN / UPC
- 4939761308734, 4058154030714, 4939761305412, 5052916817314 +1 more
- Also known as
- Ricoh ScanSnap SV600 Overhead scanner 285 x 218 DPI A3 Black, White
Specifications
71 specifications in 15 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 432 x 300 mm |
| Optical scanning resolution | 285 x 218 DPI |
| Colour scanning | Yes |
| Duplex scanning | No |
| Film scanning | No |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Overhead scanner |
| Built-in display | No |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | White LED (2x) |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |

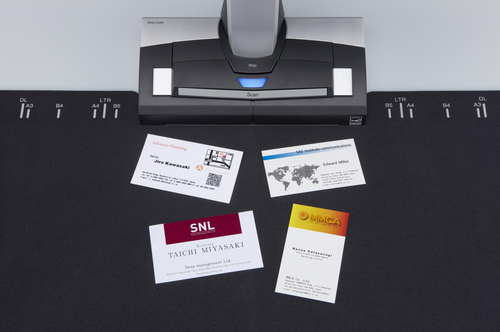

| Scanning media types supported | Business Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Legal | Yes |
| Letter | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Socket connector type | C7 |
| Standard interfaces | USB 1.1, USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power supply type | AC |
| Power consumption (standby) | 2.6 W |
| Power consumption (off) | 0.4 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 156 mm |
| Height | 383 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 301 mm |
| Package depth | 500 mm |
| Package height | 365 mm |
| Package weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Bundled software | Nuance Power PDF (Win) Nuance Power PDF Converter (Mac) |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Certificates
| Specification | Value |
|---|---|
| Green (Eco) compliant | Yes |
Other features
| Specification | Value |
|---|---|
| Scan time | 3 s |
| Automatic colour mode detection | Yes |
| Compliance certificates | RoHS |
| Horizontal optical scanning resolution (max) | 285 DPI |
| Horizontal optical scanning resolution (min) | 218 DPI |
| Media thickness | 30 mm |
| Vertical optical scanning resolution (max) | 283 DPI |
| Vertical optical scanning resolution (min) | 152 DPI |
| Vertical scanning magnification | ±1.5%% |
| Minimum scan size | 25.4 x 25.4 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Cardboard packaging weight | 1.2 kg |
| Foil packaging weight | 15 g |
| Glass packaging weight | 0 g |
| Harmonized System (HS) code | 8471607000 |
| Metal packaging weight | 0 g |
| Pallet gross length | 101.6 cm |
| Pallet gross width | 121.9 cm |
| Pallet height (air) | 124.5 cm |
| Pallet height (sea) | 197.5 cm |
| Paper packaging weight | 2.4 kg |
| Plastic packaging weight | 15 g |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Products per pallet (air) | 24 pc(s) |
| Products per pallet (sea) | 40 pc(s) |
| Wood packaging weight | 0 g |
