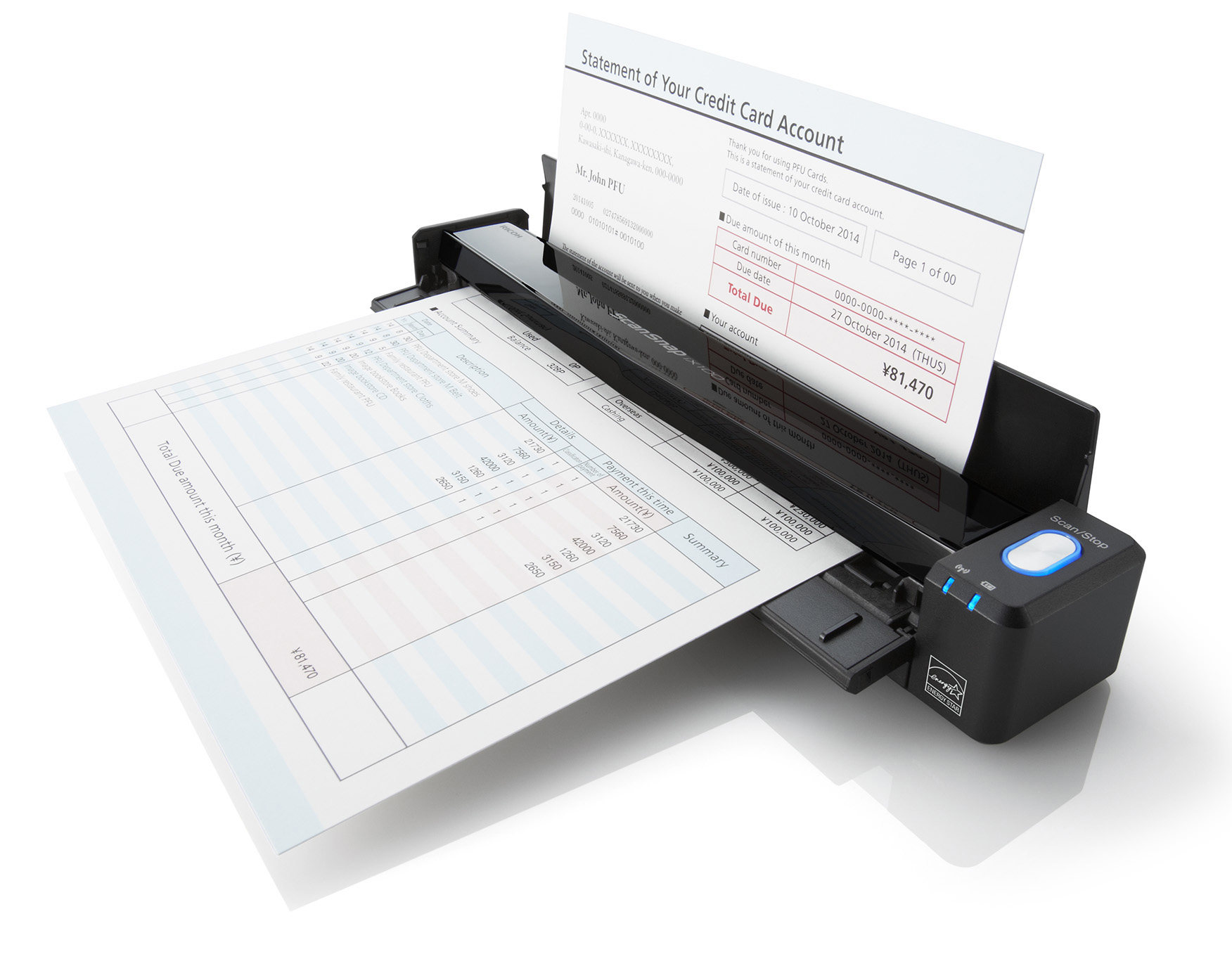

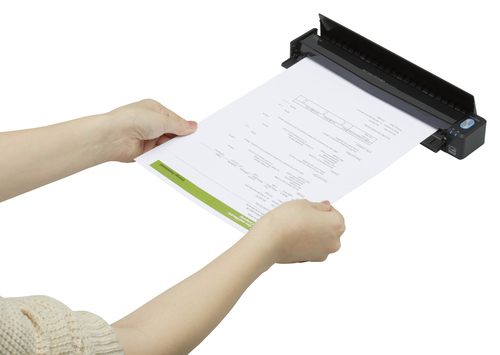

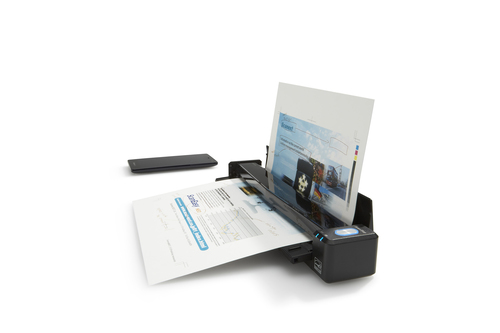

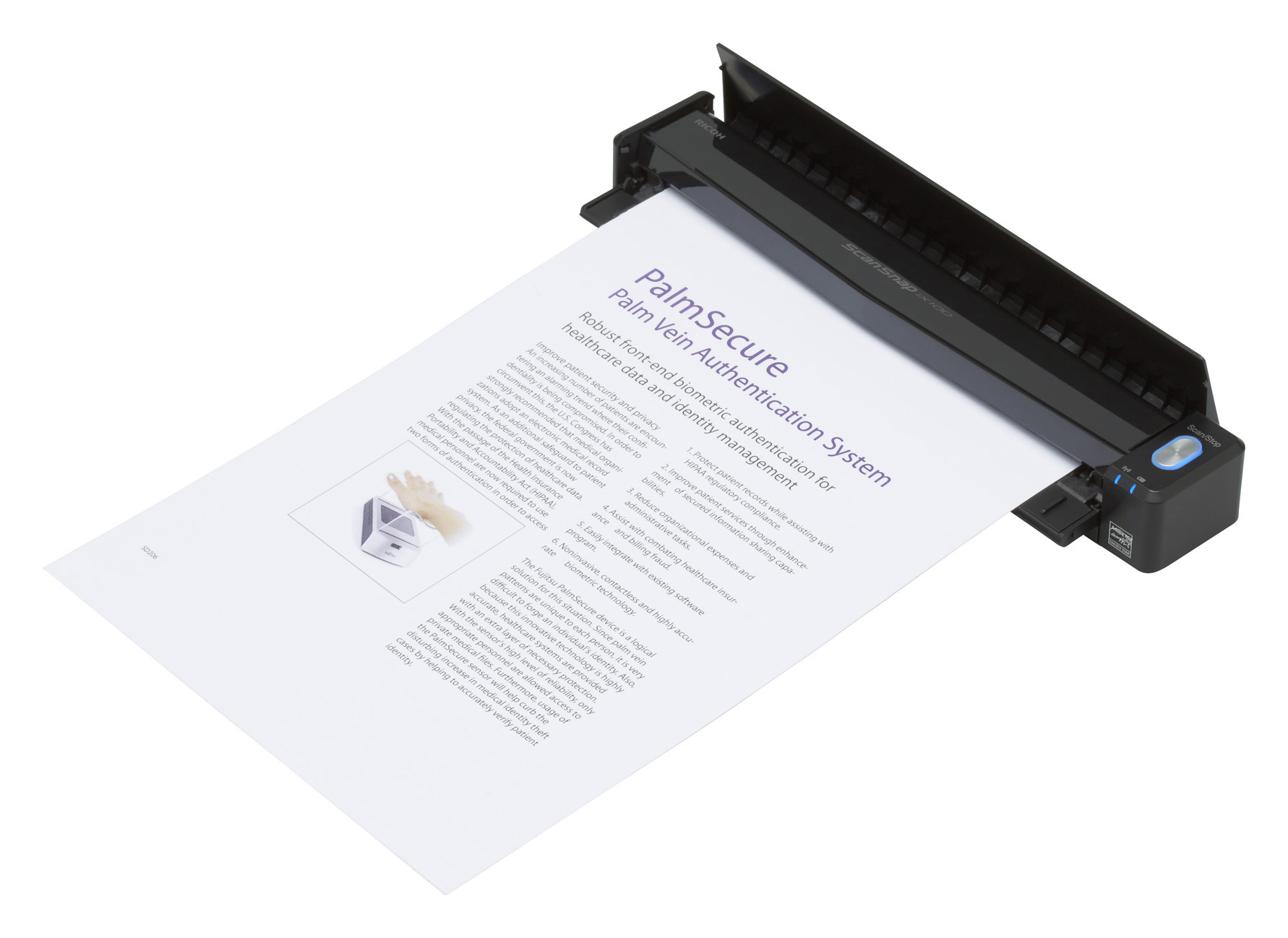

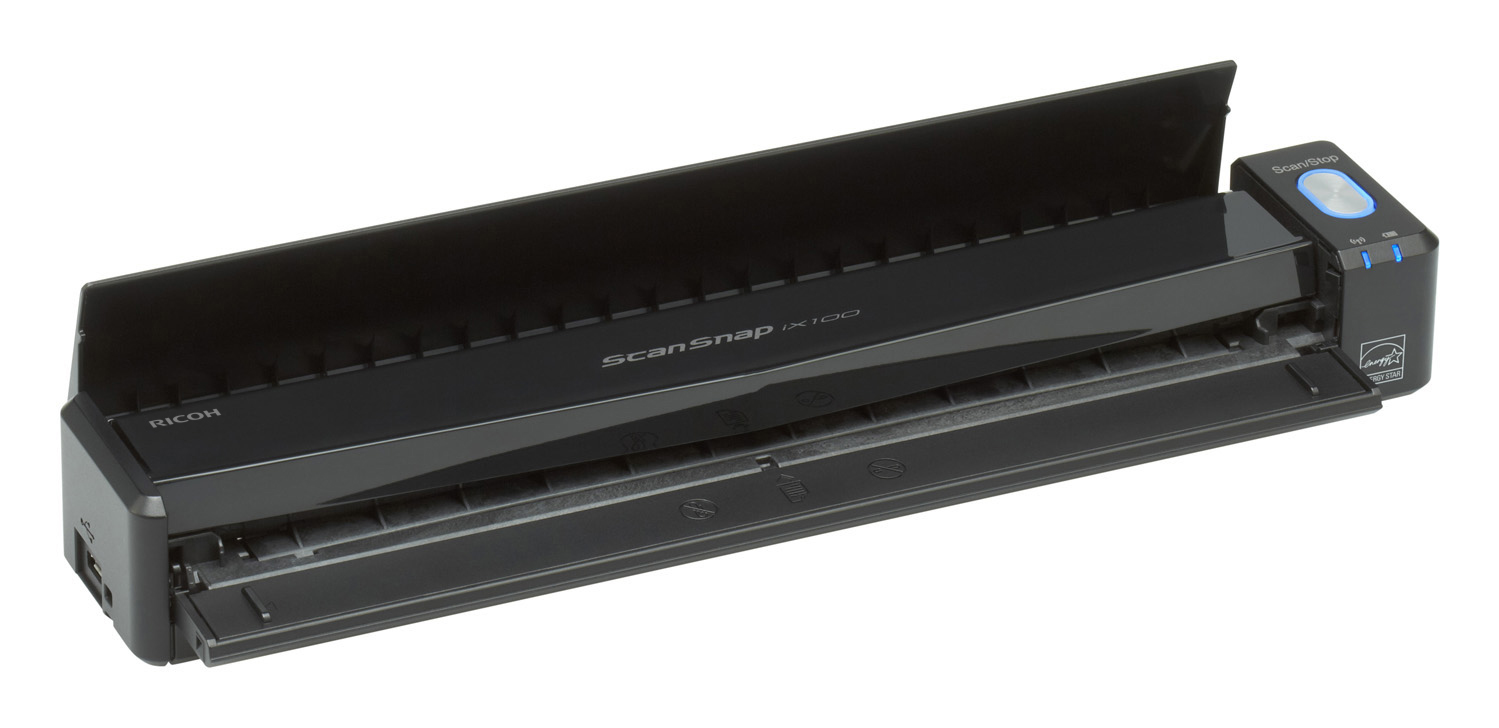

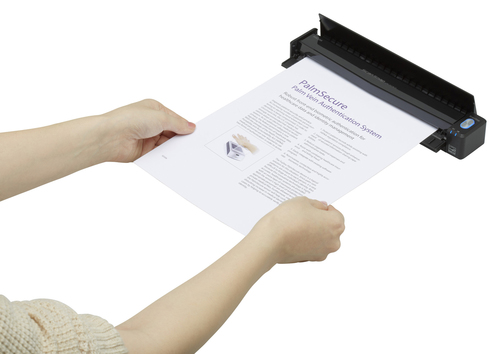

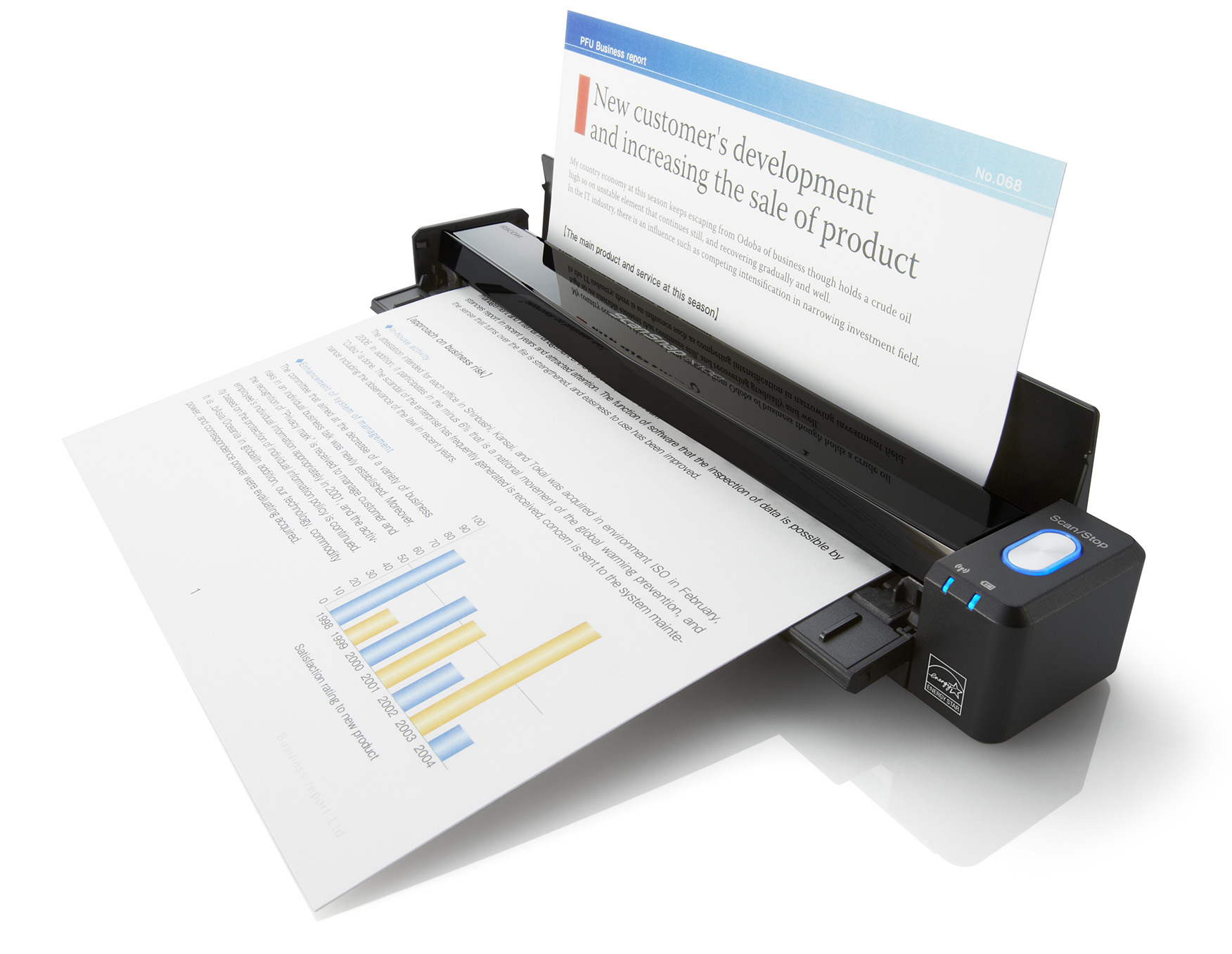

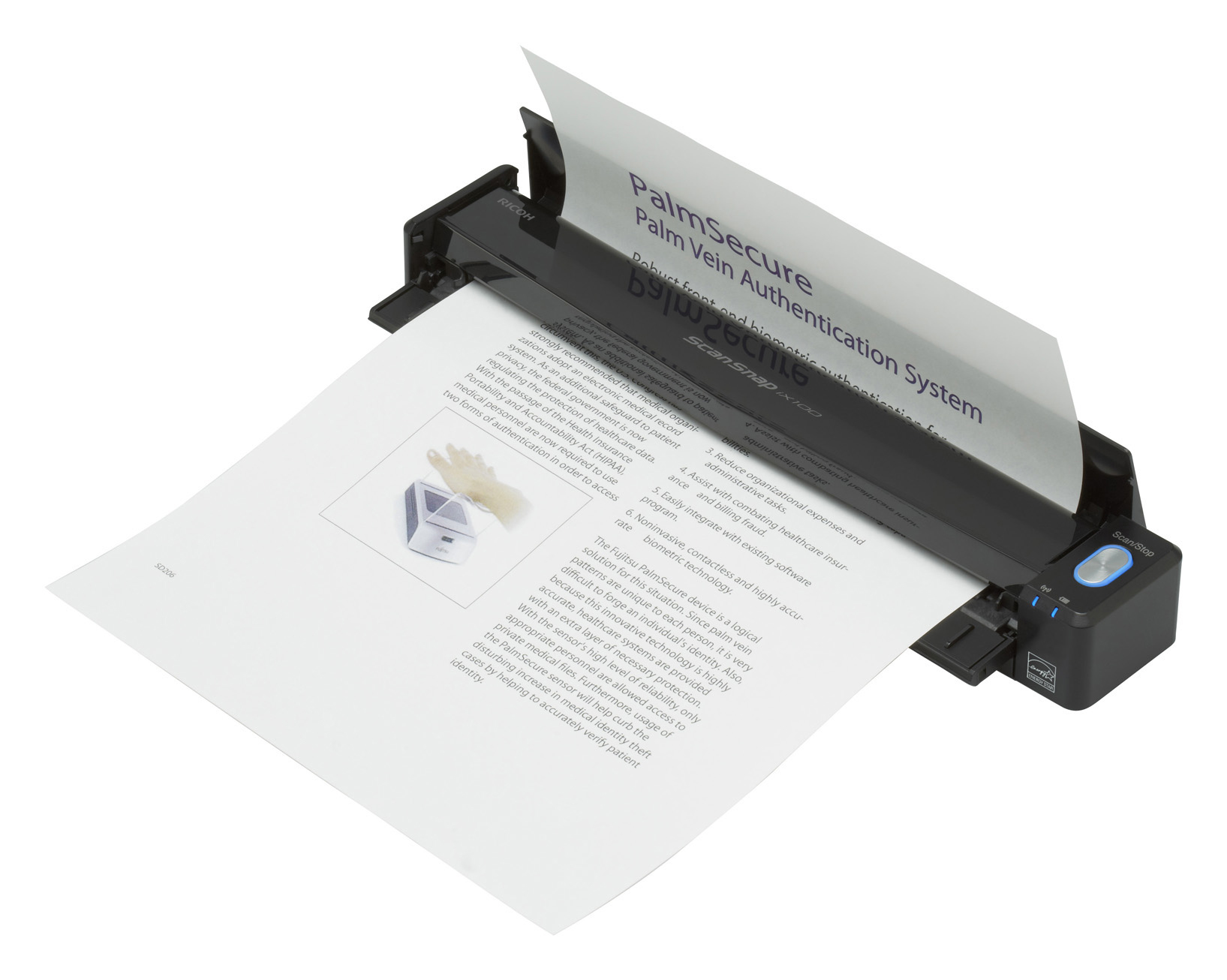

Ricoh ScanSnap iX100 Specs

Overview

Battery: 720 mAh
Weight: 400 g
Colour: Black
Maximum scan size: 216 x 360 mm
Scanner type: CDF + Sheet-fed scanner
Sensor type: CIS

Brand: Ricoh
Category: Scanner
Model: ScanSnap iX100
Part numbers: PA03688-B005, PA03688-B001
EAN / UPC: 975643084444, 4053162512894, 4939761307195, 5054484705086 +4 more
Also known as: Ricoh ScanSnap iX100 CDF + Sheet-fed scanner 600 x 600 DPI A4 Black

Specifications

70 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	216 x 360 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	No
Flatbed scan speed (b/w, A4)	5 sec/page
Black/white scanning colour modes	Grayscale, Monochrome

Design

Specification	Value
Scanner type	CDF + Sheet-fed scanner
Built-in display	No
Product colour	Black

Performance

Specification	Value
Sensor type	CIS
Light source	RGB LED
Built-in processor	GI

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Photo paper, Plain paper, Post Card(JPN)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Legal	Yes
Letter	Yes

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Power

Specification	Value
Power consumption (typical)	4.7 W
Power supply type	AC/Battery
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
Power consumption (PowerSave)	2.2 W
Input voltage	5 V
Current	0.5 A

Weight & dimensions

Specification	Value
Width	273 mm
Depth	47.5 mm
Height	36 mm
Weight	400 g

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	141 mm
Package depth	314 mm
Package height	74 mm
Package weight	400 g

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	USB
Quick start guide	Yes
Drivers included	Yes
Bundled software	ScanSnap Manager 6.3 ScanSnap Organizer CardMinder 5.2 ABBYY FineReader for ScanSnap 5.0 Scan to Microsoft SharePoint

Battery

Specification	Value
Battery capacity	720 mAh
Battery technology	Lithium-Ion (Li-Ion)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Compliance certificates	RoHS
Scan media weight	52 - 209 g/m²
Minimum scan size	25.4 x 25.4mm

Logistics data

Specification	Value
Country of origin	China
Cardboard packaging weight	1.2 kg
Foil packaging weight	15 g
Glass packaging weight	0 g
Harmonized System (HS) code	8471607000
Metal packaging weight	0 g
Pallet gross length	101.6 cm
Pallet gross width	121.9 cm
Pallet height (air)	120.5 cm
Pallet height (sea)	180.5 cm
Paper packaging weight	2.4 kg
Plastic packaging weight	15 g
Polystyrene (EPS/EPP) packaging weight	200 g
Products per pallet (air)	288 pc(s)
Products per pallet (sea)	480 pc(s)
Wood packaging weight	0 g

Energy efficiency

ENERGY STAR certified

Imaging equipment · model IX100 · certified Dec 23, 2022 · United States, Japan, Canada, Taiwan, Switzerland

Measurement	Value
Sleep-mode power	1.54 W
Standby power	0.02 W
