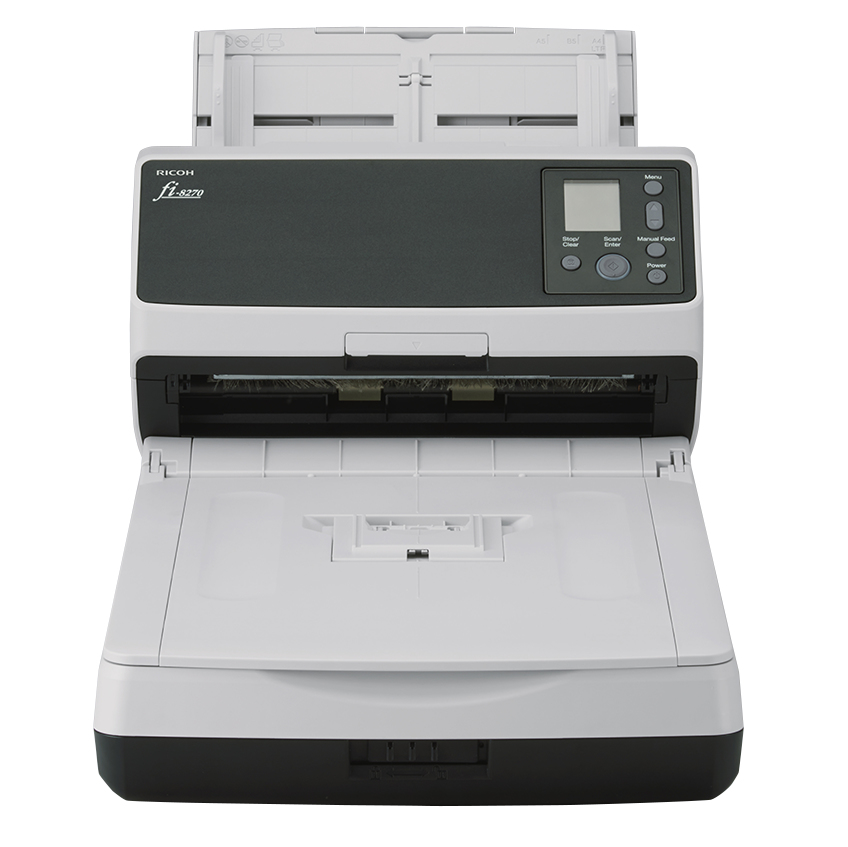

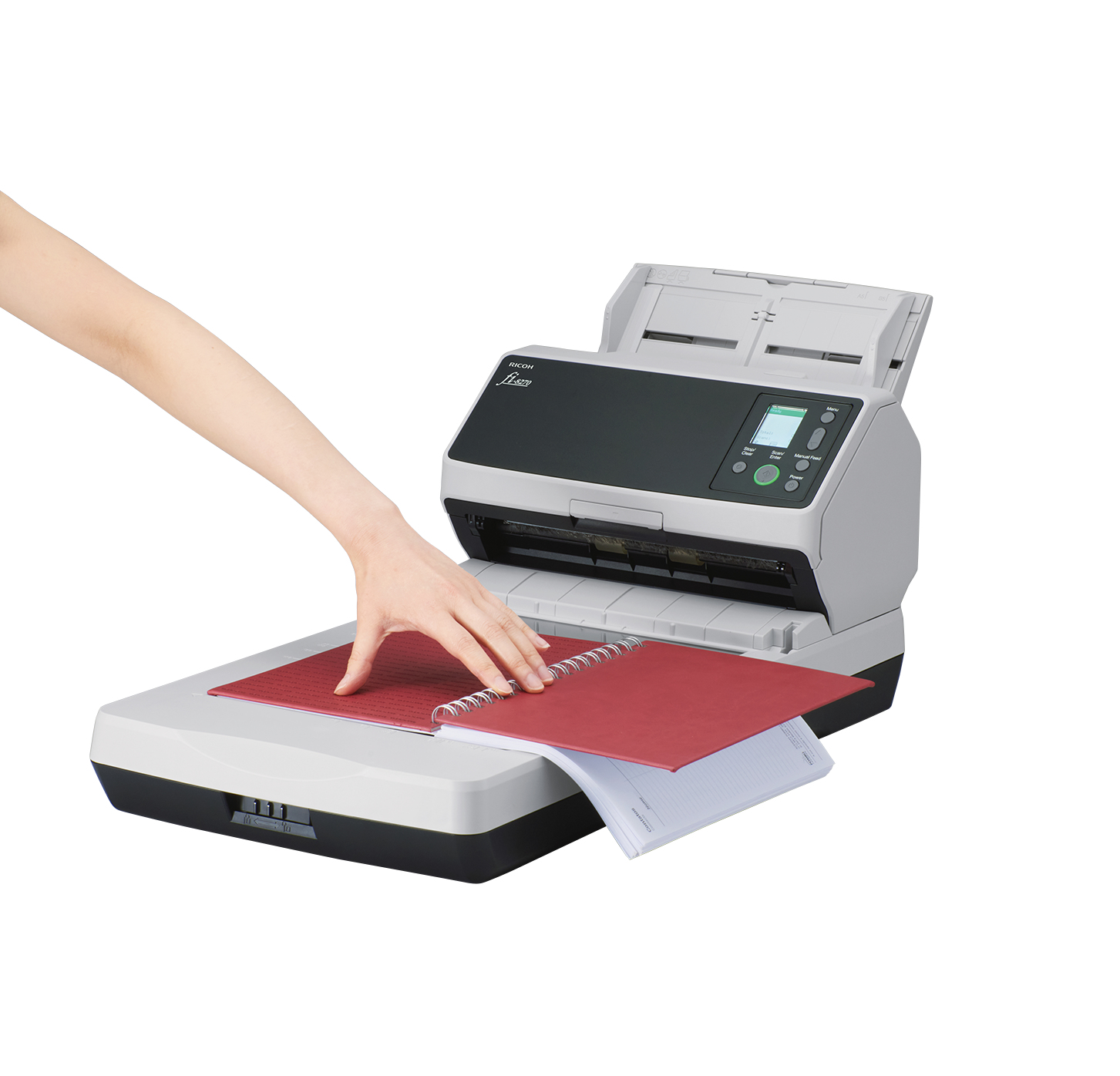

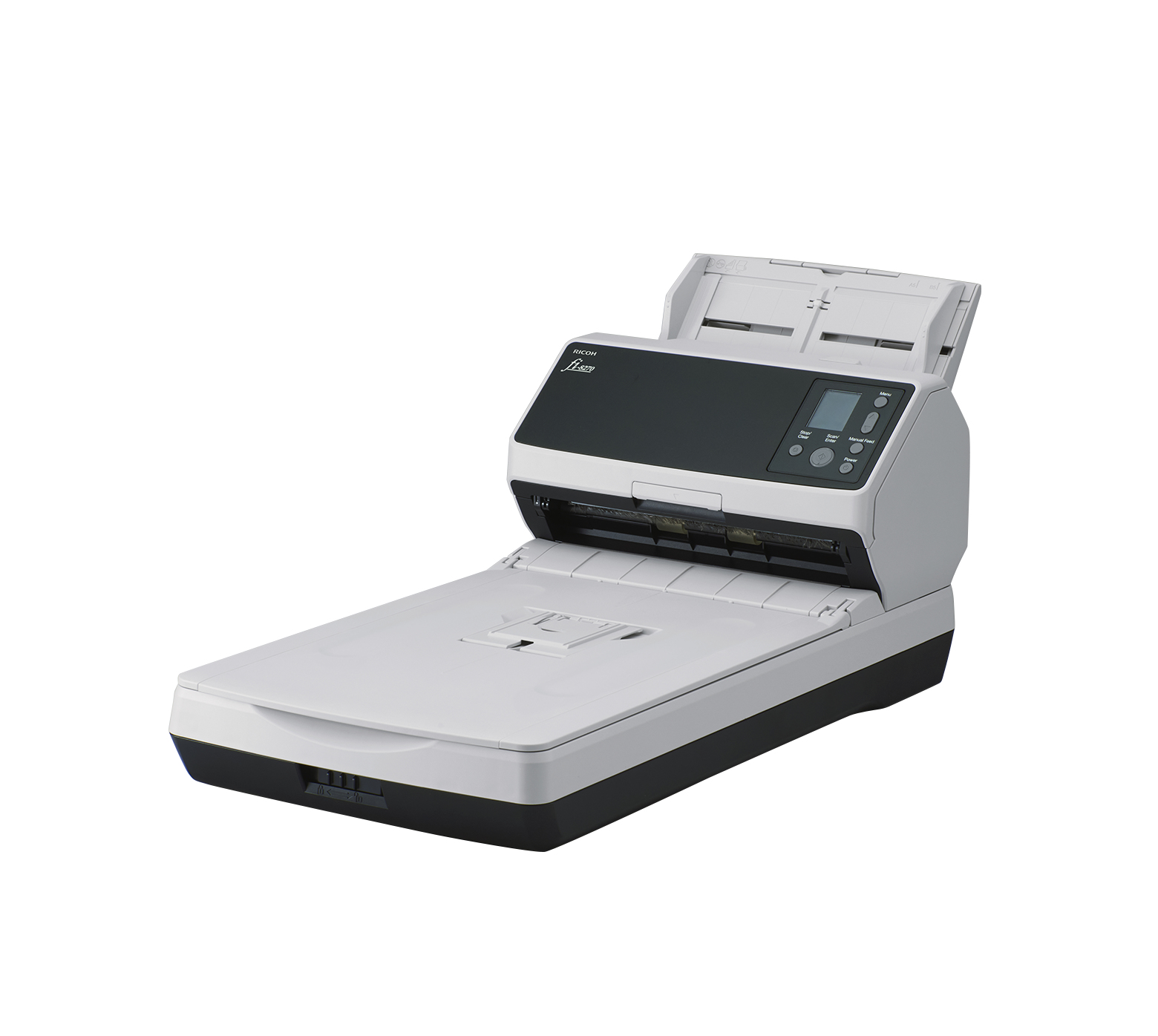

fi-8270 ADF + Manual feed scanner
600 x 600 DPI A4 Black, Grey
Model fi-8270Part no. CG01000-303601?LAEAN 097564309854
49 specifications
- Weight8.8 kg
- ColourBlack, Grey
- Maximum scan size216 x 355.6 mm
- Scanner typeADF + Manual feed scanner
- Sensor typeDual CIS/CCD
- Auto document feeder (ADF) input capacity100 sheets
Overview
- Weight
- 8.8 kg
- Colour
- Black, Grey
- Maximum scan size
- 216 x 355.6 mm
- Scanner type
- ADF + Manual feed scanner
- Sensor type
- Dual CIS/CCD
- Auto document feeder (ADF) input capacity
- 100 sheets
- Brand
- Ricoh
- Category
- Scanner
- Model
- fi-8270
- Part numbers
- CG01000-303601?LA, PA03810-B555, PA03810-B551
- EAN / UPC
- 097564309854, 4939761312281
- Also known as
- Ricoh fi-8270 ADF + Manual feed scanner 600 x 600 DPI A4 Black, Grey
Specifications
49 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 355.6 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| ADF scan speed (b/w, A4) | 70 ppm |
| Duplex ADF scan speed (b/w, A4) | 140 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Manual feed scanner |
| Built-in display | Yes |
| Product colour | Black, Grey |
| Control type | Buttons |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS/CCD |
| Light source | LED |
| Scan file formats | JPEG, PDF, PNG, TIFF |
| Scan drivers | ISIS, TWAIN |
| Scanner smart software features | Blank page detection |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| ID-cards (ISO/IEC 7810) compliant | Yes |
| Legal | Yes |
| Letter | Yes |
| Card thickness (max) | 1.4 mm |
| Paper tray media weight | 20 - 465 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-B |
| Socket connector type | C5 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 28 W |
| Power supply type | AC |
| Power consumption (standby) | 0.2 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 577 mm |
| Depth | 234 mm |
| Height | 300 mm |
| Weight | 8.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 500 mm |
| Package depth | 700 mm |
| Package height | 375 mm |
| Package weight | 13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
