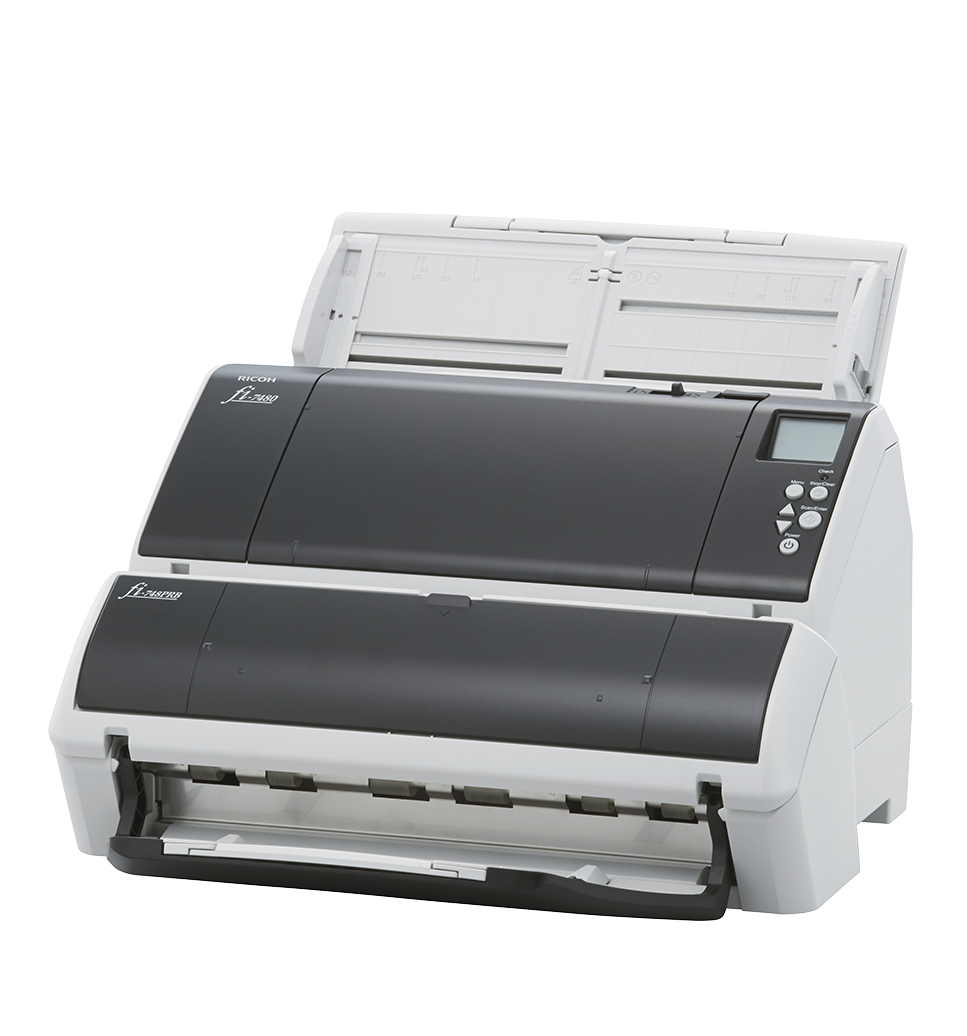

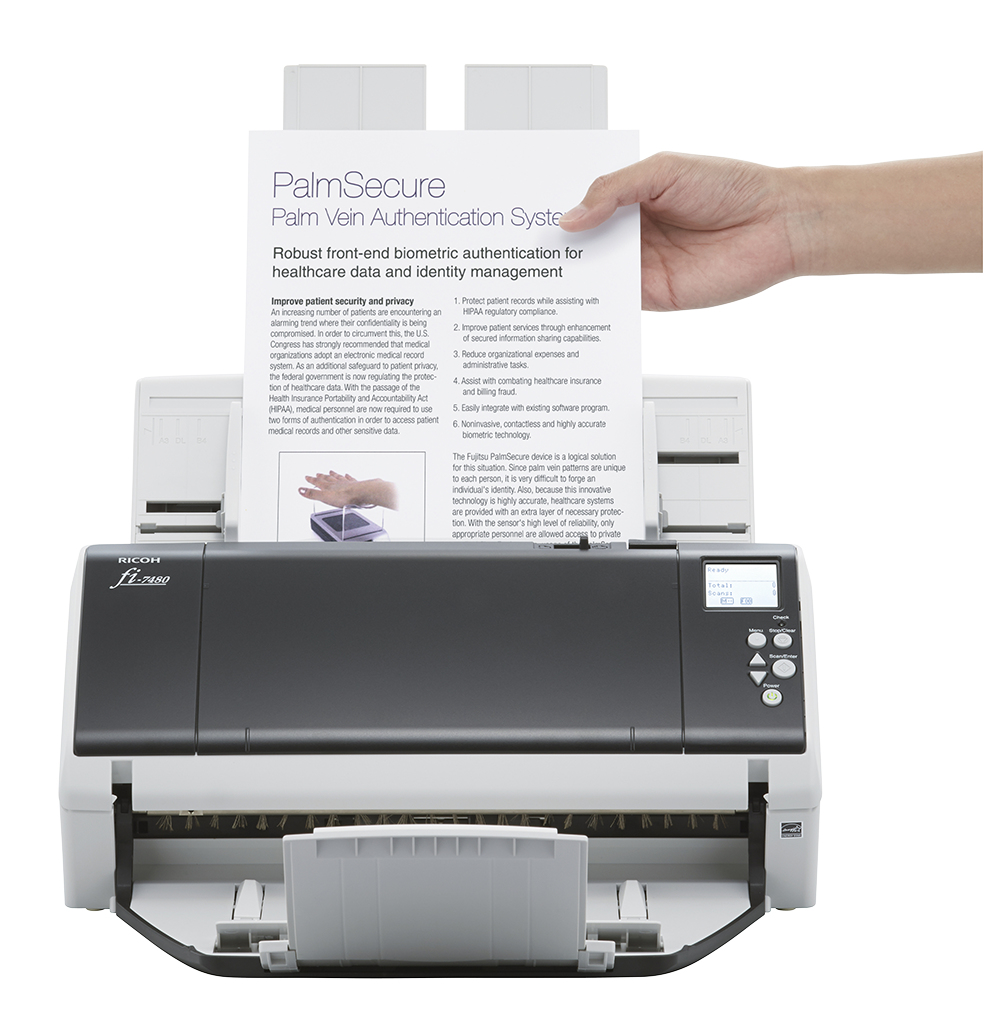

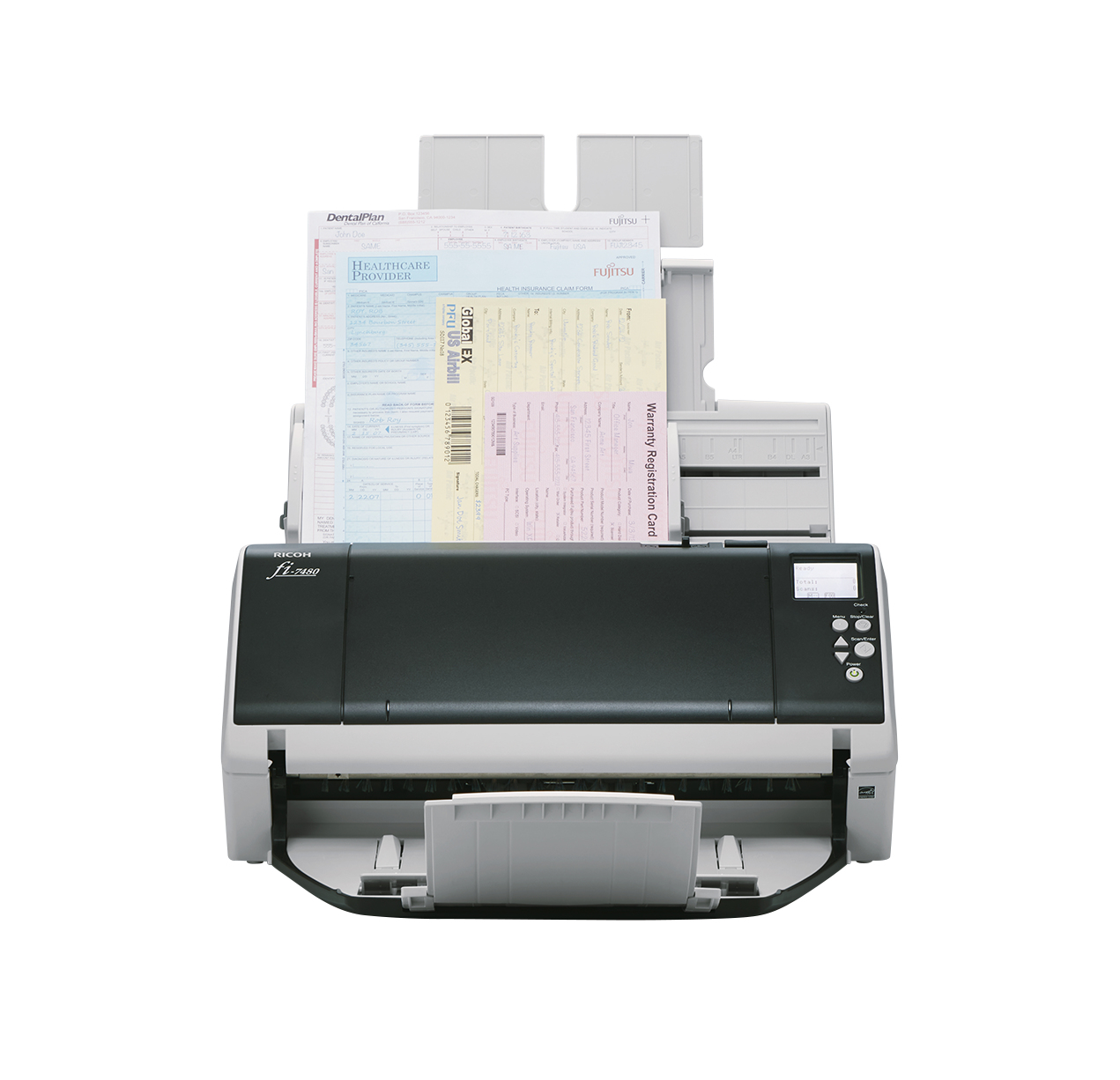

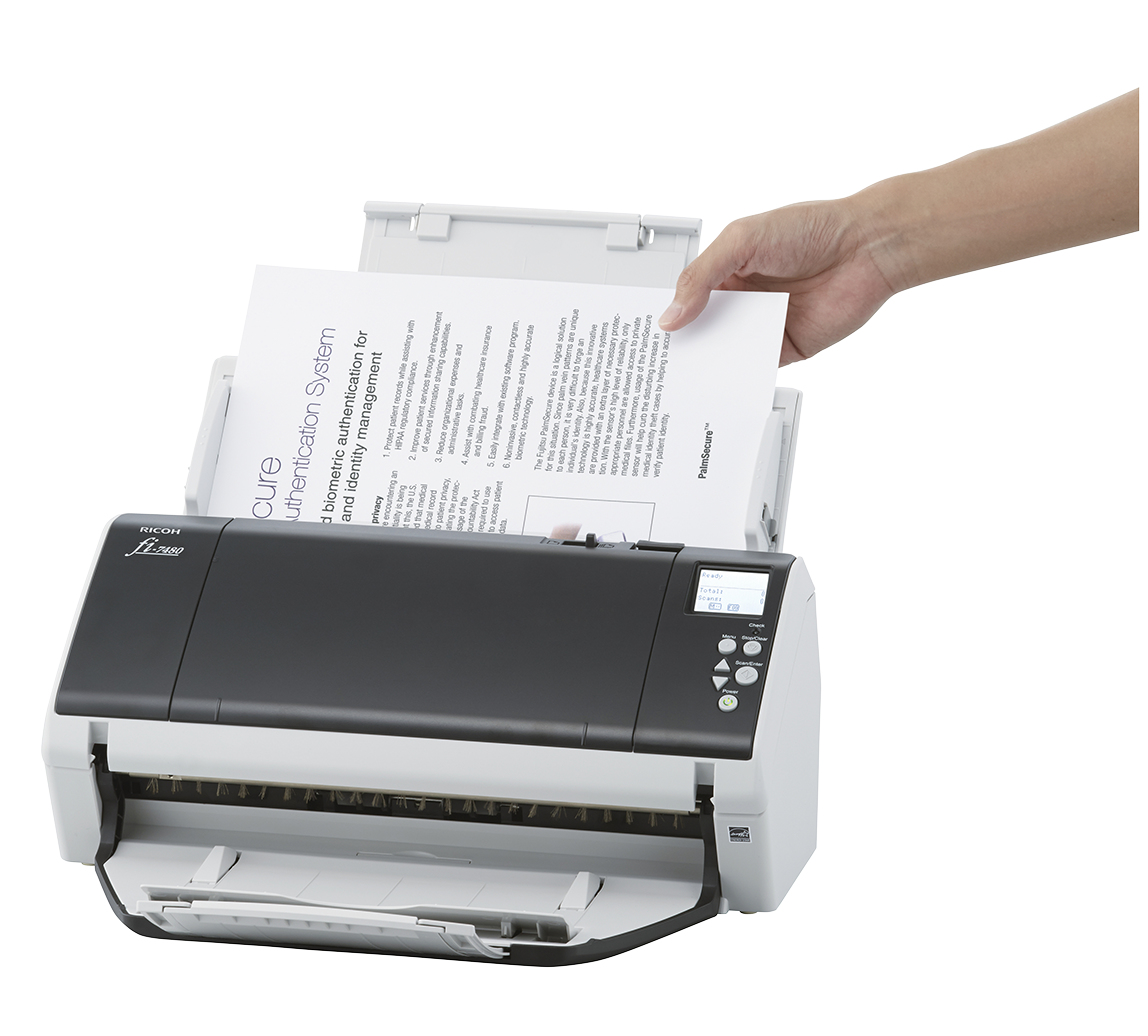

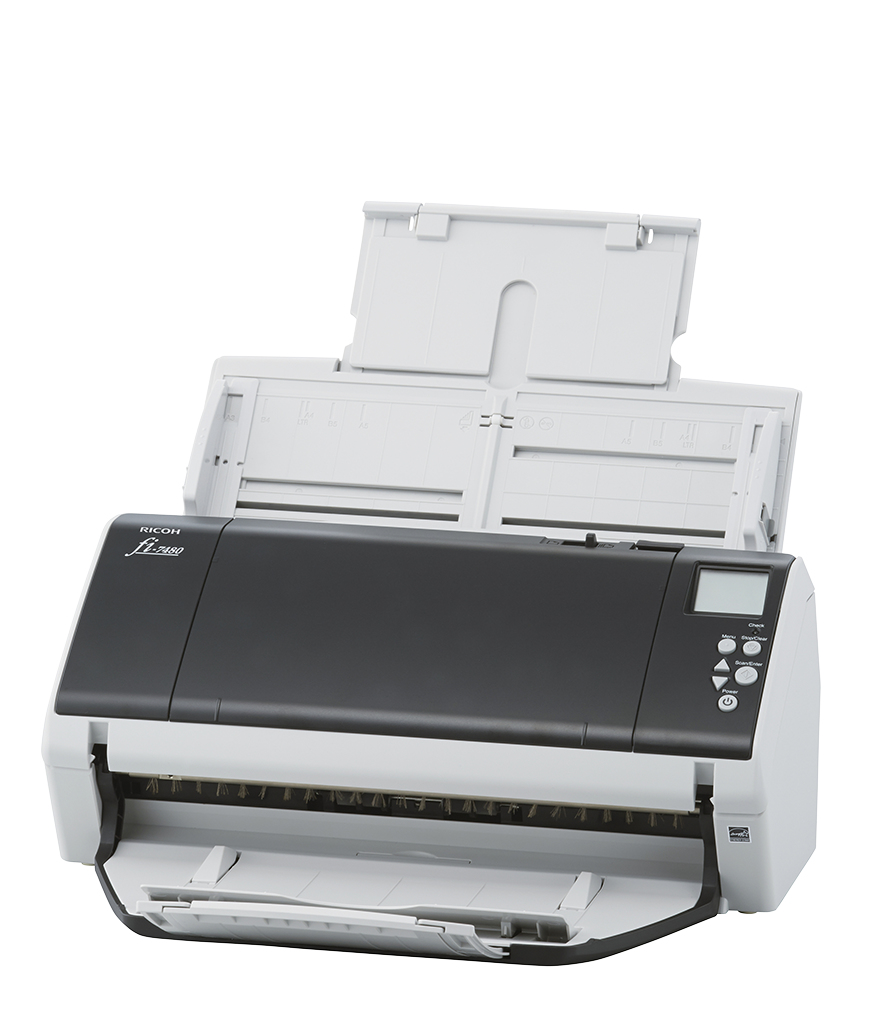

Ricoh fi-7480 ADF scanner

Ricoh fi-7480 ADF scanner

600 x 600 DPI A3 Grey, White

Model fi-7480Part no. PA03710-B001EAN 4058154054932

80 specifications

Weight7.6 kg
ColourGrey, White
Maximum scan size304.8 x 5588 mm
Scanner typeADF scanner
Sensor typeDual CCD
Auto document feeder (ADF) input capacity100 sheets

See all specifications

Overview

Weight: 7.6 kg
Colour: Grey, White
Maximum scan size: 304.8 x 5588 mm
Scanner type: ADF scanner
Sensor type: Dual CCD
Auto document feeder (ADF) input capacity: 100 sheets

Brand: Ricoh
Category: Scanner
Model: fi-7480
Part number: PA03710-B001
EAN / UPC: 4058154054932, 4939761308444
Also known as: Ricoh fi-7480 ADF scanner 600 x 600 DPI A3 Grey, White

Specifications

80 specifications in 15 groups

Scanning

Specification	Value
Maximum scan size	304.8 x 5588 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Film scanning	No
ADF scan speed (b/w, A4)	80 ppm
ADF scan speed (colour, A4)	80 ppm
Duplex ADF scan speed (b/w, A4)	160 ipm
Duplex ADF scan speed (colour, A4)	160 ipm
Black/white scanning colour modes	Grayscale, Monochrome

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Grey, White

Performance

Specification	Value
Sensor type	Dual CCD
Light source	White LED (4x)
Scan drivers	ISIS, TWAIN

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
Scanning media types supported	Plastic Card
Multi feed detection	Yes
ISO A-series sizes (A0...A9)	A3, A4, A8
Media thickness (min)	1.4 mm
Plastic card media weight	27 - 413 g/m²
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan width	30.5 cm
Maximum scan length	5.588 mm
Maximum scan area (ADF)	304.8 x 431.8 mm
Minimum scan area (ADF)	50.8 x 69 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-B
Socket connector type	C5
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)

Power

Specification	Value
Power consumption (typical)	43 W
Power supply type	AC
Power consumption (standby)	0.35 W
Power consumption (off)	0.35 W
Power consumption (PowerSave)	1.4 W
Input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	380 mm
Depth	209 mm
Height	168 mm
Weight	7.6 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	505 mm
Package depth	302 mm
Package height	330 mm
Package weight	9.9 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Quick start guide	Yes
Drivers included	Yes
Bundled software	PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools, ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode for PaperStream

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Windows operating systems supported	Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windo

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Compliance certificates	RoHS
Selectable background colour	Yes
Background colours	Black, White

Logistics data

Specification	Value
Country of origin	Indonesia
Cardboard packaging weight	1.2 kg
Foil packaging weight	15 g
Glass packaging weight	0 g
Harmonized System (HS) code	8471607000
Metal packaging weight	0 g
Pallet gross length	121.9 cm
Pallet gross width	101.6 cm
Pallet height (air)	114 cm
Pallet height (sea)	180 cm
Paper packaging weight	2.4 kg
Plastic packaging weight	15 g
Polystyrene (EPS/EPP) packaging weight	200 g
Products per pallet (air)	24 pc(s)
Products per pallet (sea)	40 pc(s)
Wood packaging weight	0 g
