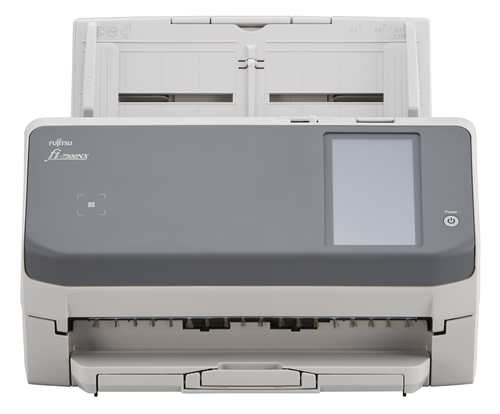

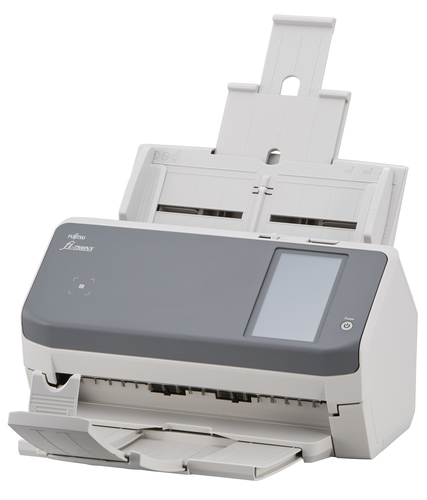

Ricoh fi-7300NX ADF scanner

fi-7300NX ADF scanner

600 x 600 DPI A4 Grey, White

Model fi-7300NXPart no. PA03768-B001EAN 4939761309632

80 specifications

Display10.9 cm (4.3")
Weight49 kg
ColourGrey, White
Maximum scan size216 x 5588 mm
Scanner typeADF scanner
Sensor typeDual CCD

See all specifications

Overview

Display: 10.9 cm (4.3")
Weight: 49 kg
Colour: Grey, White
Maximum scan size: 216 x 5588 mm
Scanner type: ADF scanner
Sensor type: Dual CCD

Brand: Ricoh
Category: Scanner
Model: fi-7300NX
Part number: PA03768-B001
EAN / UPC: 4939761309632
Also known as: Ricoh fi-7300NX ADF scanner 600 x 600 DPI A4 Grey, White

Specifications

80 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	216 x 5588 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Duplex ADF scan speed (colour, A4)	120 ipm
Black/white scanning colour modes	Grayscale, Monochrome

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Grey, White
Display	TFT
Display diagonal	10.9 cm (4.3")
Touchscreen	Yes

Performance

Specification	Value
Sensor type	Dual CCD
Light source	White LED (2x)
Daily duty cycle (max)	4000 pages
Scan drivers	ScanSnap, TWAIN, WIA
Ultrasonic double sheet detection	Yes

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	80 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Plain paper, Plastic Card
Long-paper mode	Yes
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan width	21.6 cm
Maximum scan length	5.59 m
Minimum scan area (ADF)	50.8 x 54 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
Socket connector type	C5
Standard interfaces	Ethernet, USB 1.1, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Supported network protocols	IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS

Power

Specification	Value
Power consumption (typical)	42 W
Power supply type	AC
Power consumption (off)	0.35 W
Power consumption (PowerSave)	2.4 W
Input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width	300 mm
Depth	202 mm
Height	170 mm
Weight	49 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	400 mm
Package height	305 mm
Package weight	7.2 kg

Packaging content

Specification	Value
AC adapter included	Yes
ADF paper chute	Yes
Cables included	AC, USB
Drivers included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Minimum processor	3.5 GHz
Minimum storage drive space	120000 MB
Server operating systems supported	Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	41 - 95 °F

Other features

Specification	Value
Compliance certificates	RoHS
Background colours	Black, White

Logistics data

Specification	Value
Country of origin	Indonesia
Cardboard packaging weight	1.2 kg
Foil packaging weight	15 g
Glass packaging weight	0 g
Harmonized System (HS) code	8471607000
Metal packaging weight	0 g
Pallet gross length	121.9 cm
Pallet gross width	101.6 cm
Pallet height (air)	137 cm
Pallet height (sea)	198 cm
Paper packaging weight	2.4 kg
Plastic packaging weight	15 g
Polystyrene (EPS/EPP) packaging weight	200 g
Products per pallet (air)	40 pc(s)
Products per pallet (sea)	60 pc(s)
Wood packaging weight	0 g
