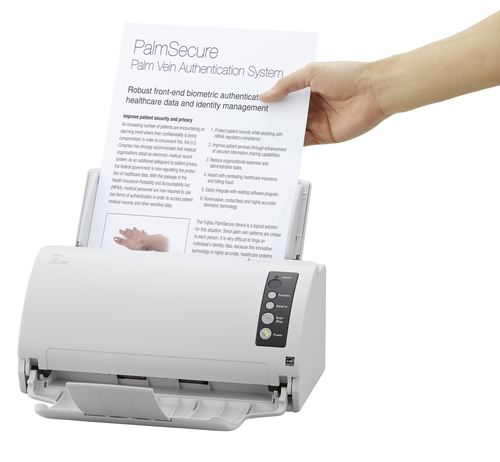

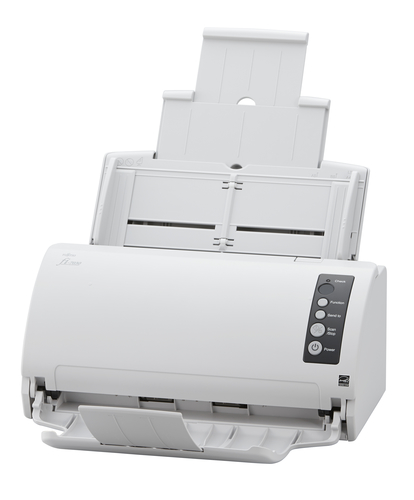

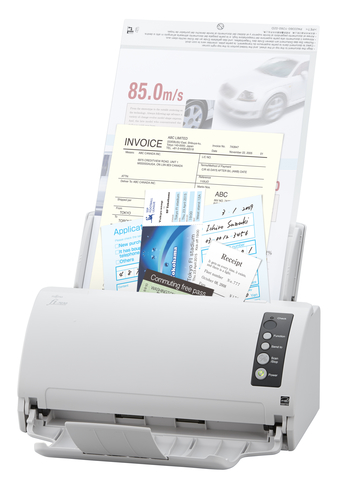

Ricoh fi-7030 ADF scanner
600 x 600 DPI A4 White
Model fi-7030Part no. PA03750-B001EAN 4058154095782
53 specifications
- Weight2.9 kg
- ColourWhite
- Maximum scan size216 x 5588 mm
- Scanner typeADF scanner
- Sensor typeColour CIS
- Standard input capacity50 sheets
Overview
- Weight
- 2.9 kg
- Colour
- White
- Maximum scan size
- 216 x 5588 mm
- Scanner type
- ADF scanner
- Sensor type
- Colour CIS
- Standard input capacity
- 50 sheets
- Brand
- Ricoh
- Category
- Scanner
- Model
- fi-7030
- Part number
- PA03750-B001
- EAN / UPC
- 4058154095782, 4939761308956
- Also known as
- Ricoh fi-7030 ADF scanner 600 x 600 DPI A4 White
Specifications
53 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5588 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Film scanning | No |
| ADF scan speed (colour, A4) | 24 ppm |
| Duplex ADF scan speed (colour, A4) | 54 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | Colour CIS |
| Light source | RGB LED |
| Scan to | File |
| Scan drivers | ISIS, TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A4 |
| Media thickness (min) | 0.76 mm |
| Plastic card media weight | 127 - 209 g/m² |
| Auto Document Feeder (ADF) media weight | 0 - 80 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Standard interfaces | USB 1.1, USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 17 W |
| Power supply type | AC |
| Power consumption (standby) | 1.1 W |
| Power consumption (off) | 0.15 W |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 146 mm |
| Height | 130 mm |
| Weight | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Drivers included | Yes |
| Bundled software | PaperStream IP (TWAIN /TWAIN x64 /ISIS) PaperStream Capture Software Operation Panel Error Recovery Guide ScanSnap Manager Scan to Microsoft SharePoint ABBYY FineReader Scanner Central Admin Agent |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Ubuntu 14.04, Ubuntu 16.04 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Background colours | White |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
