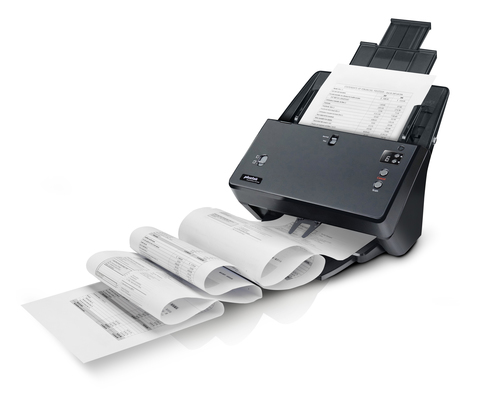

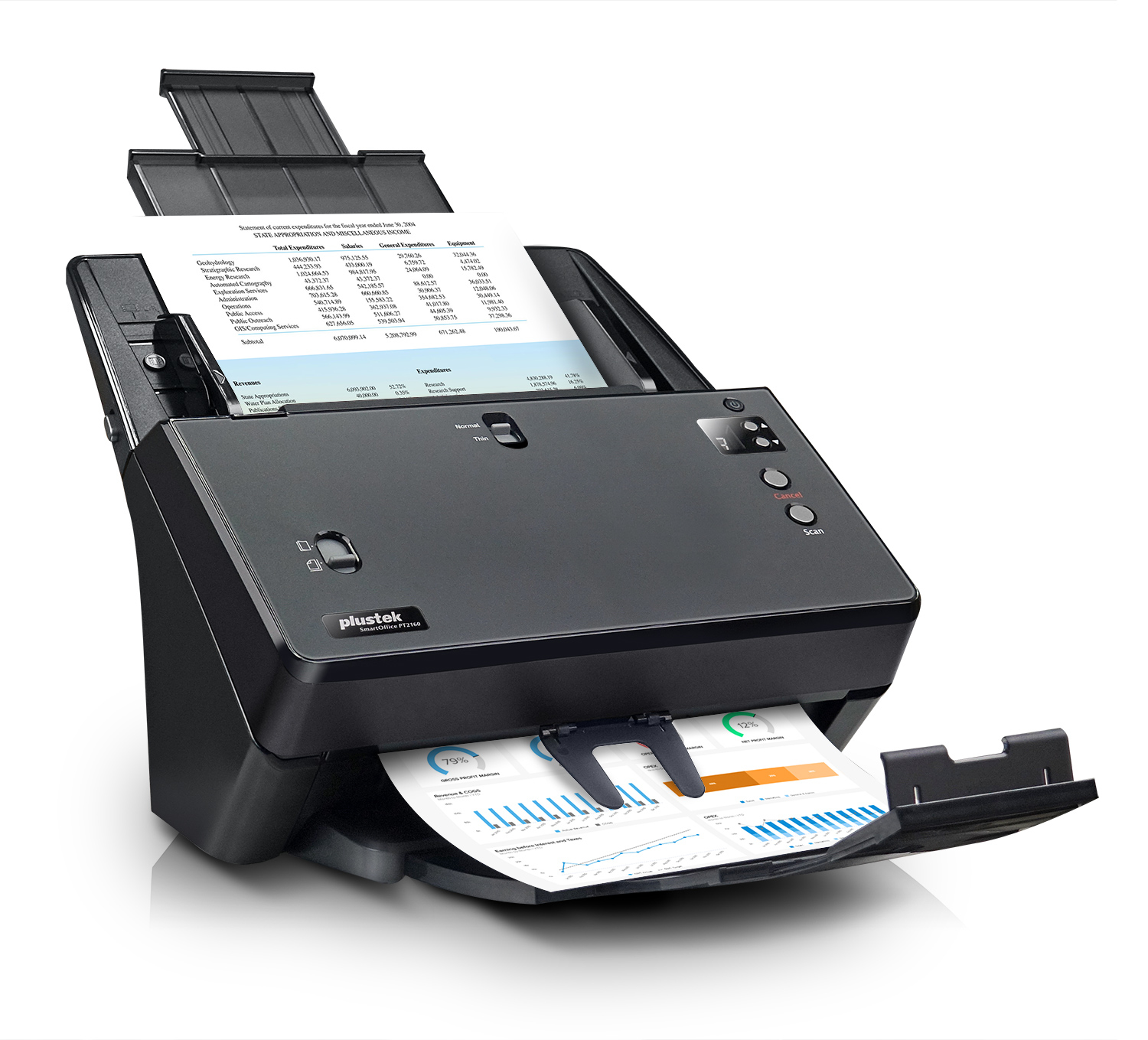

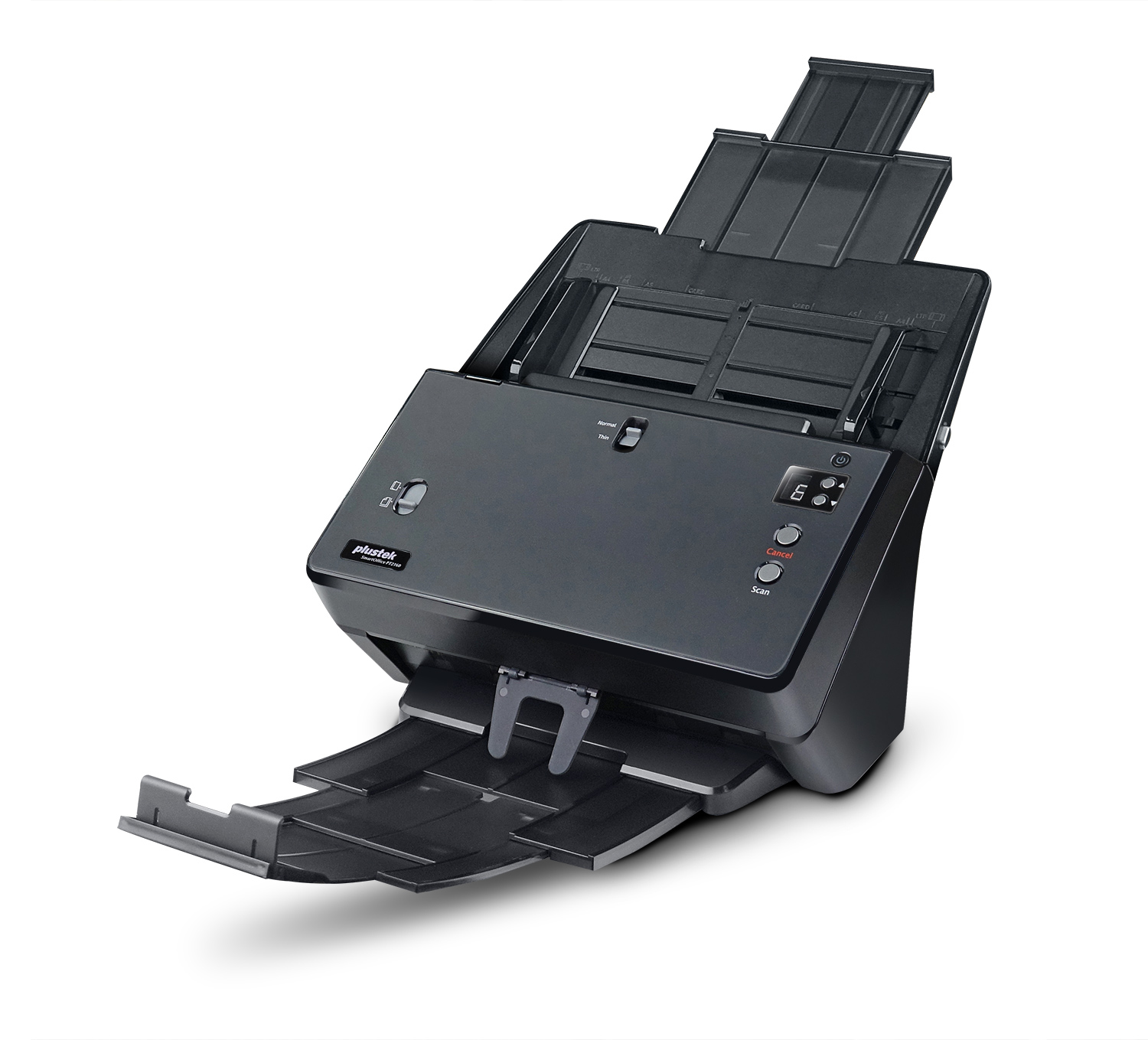

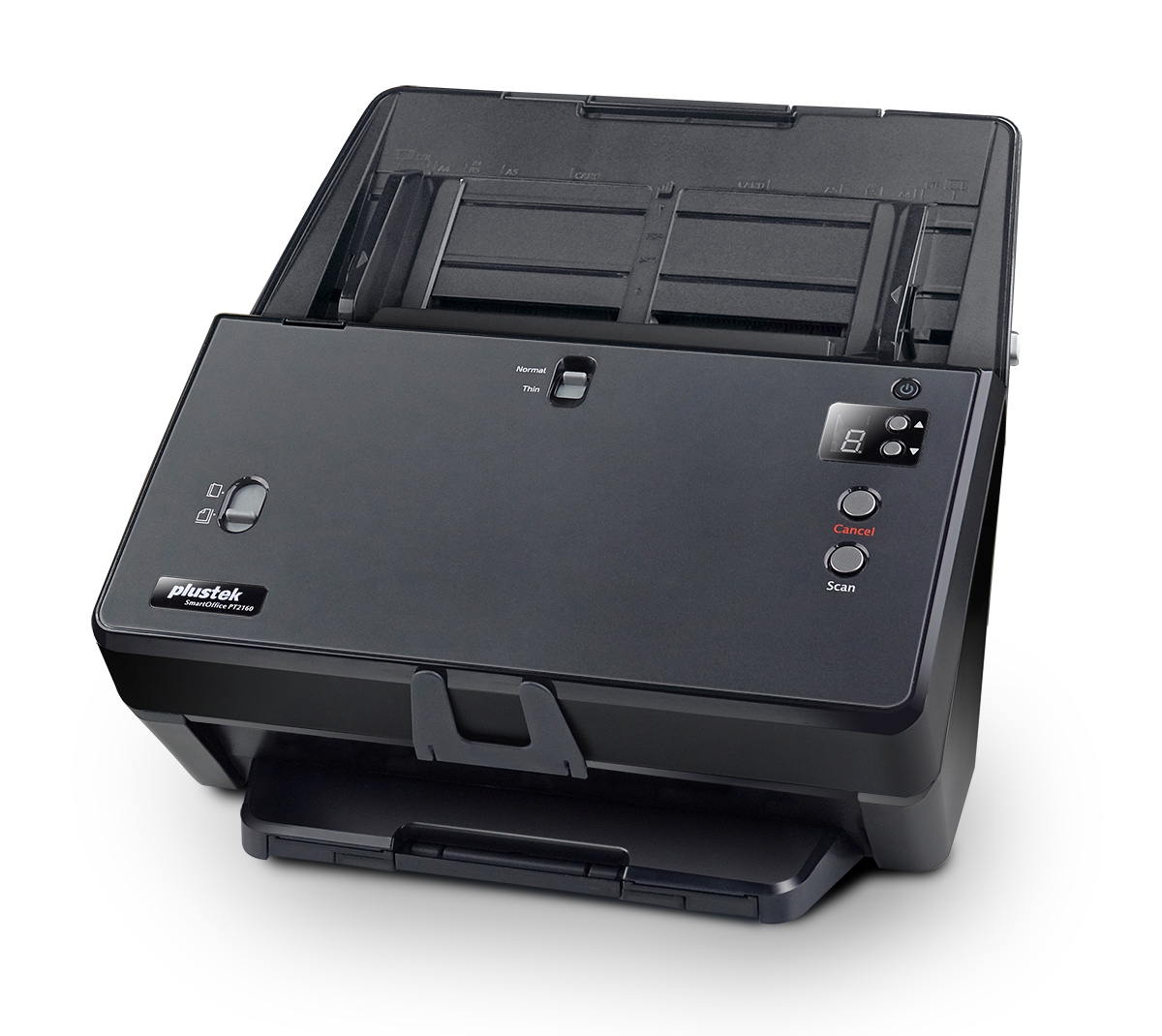

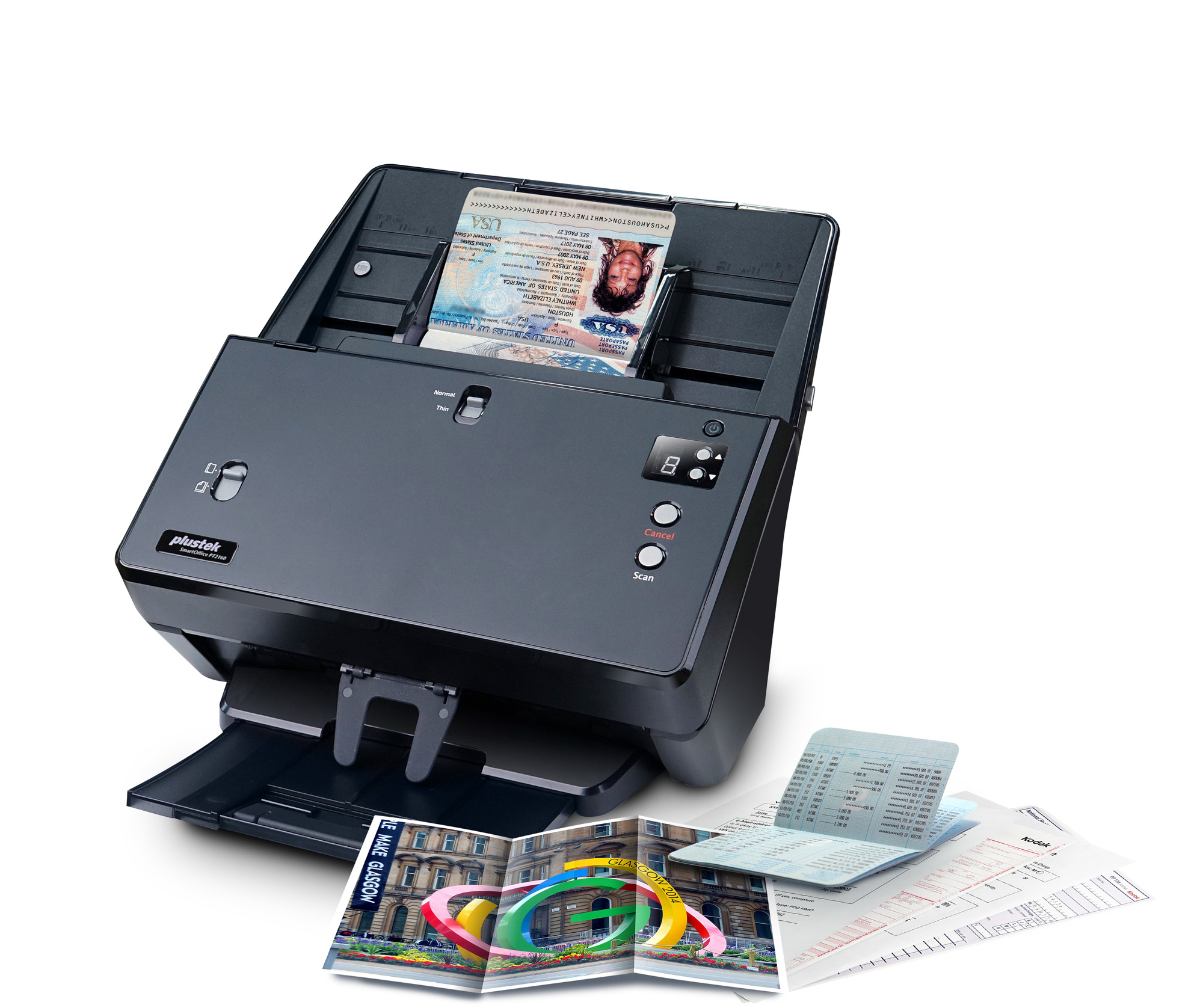

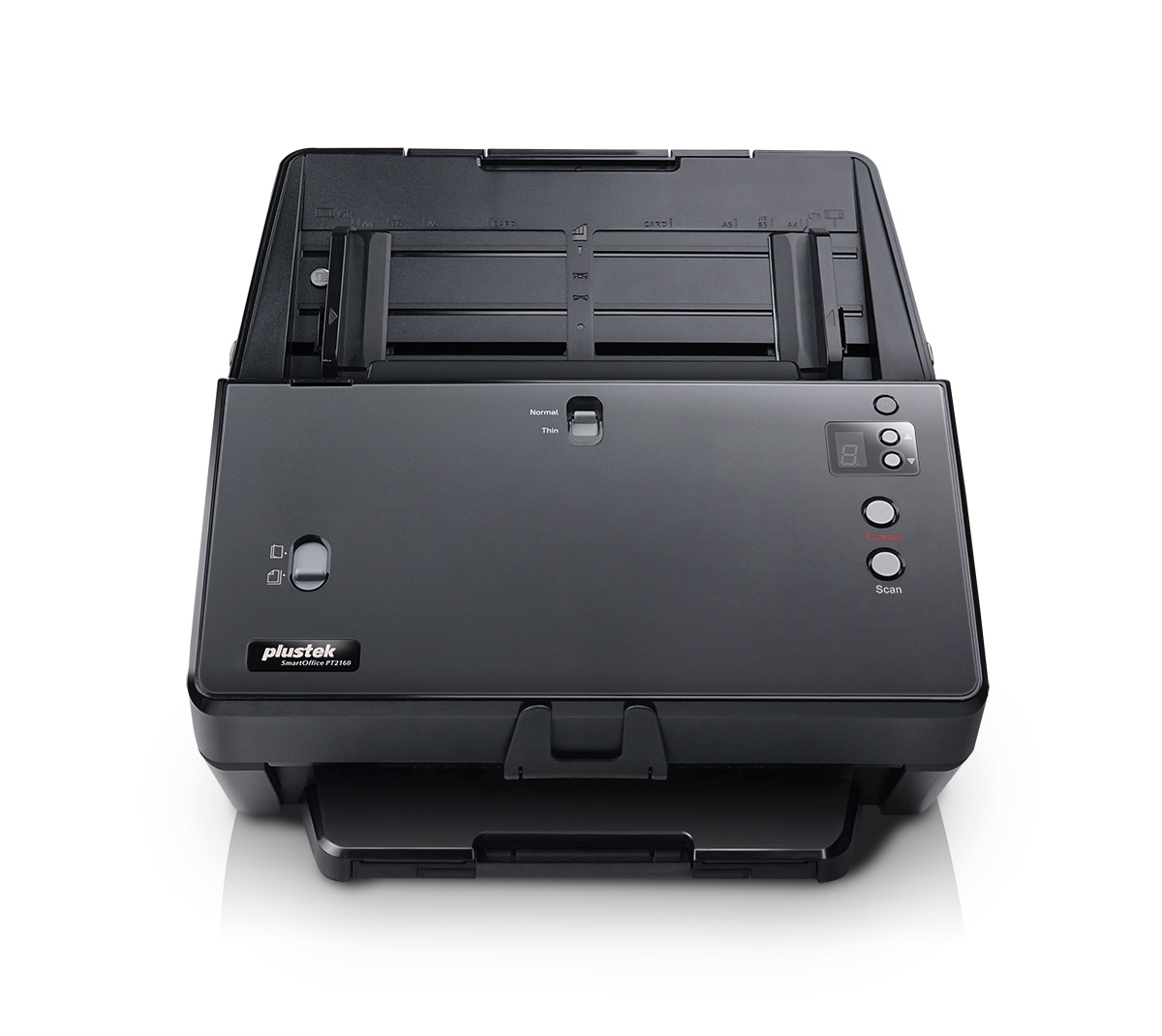

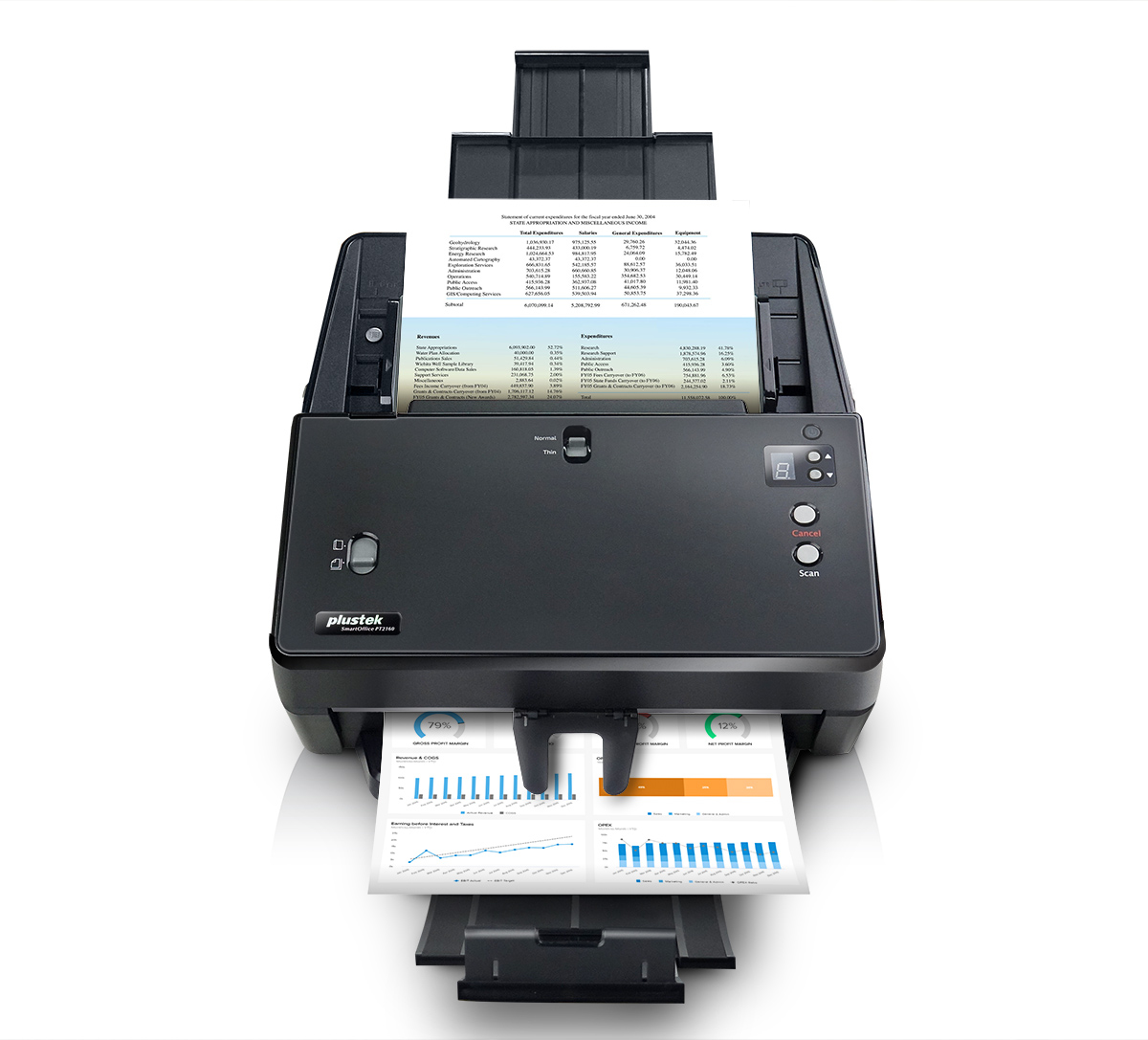

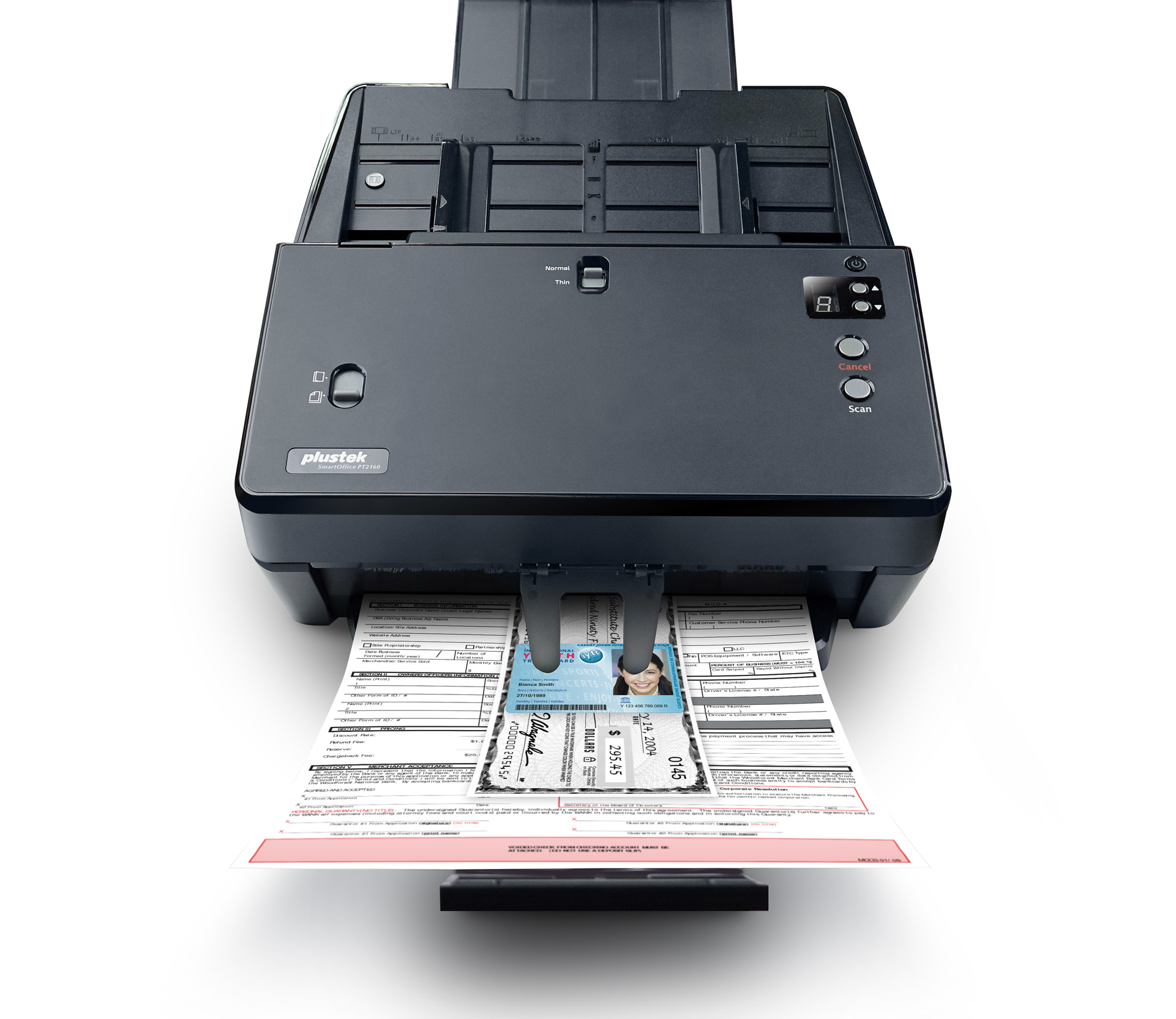

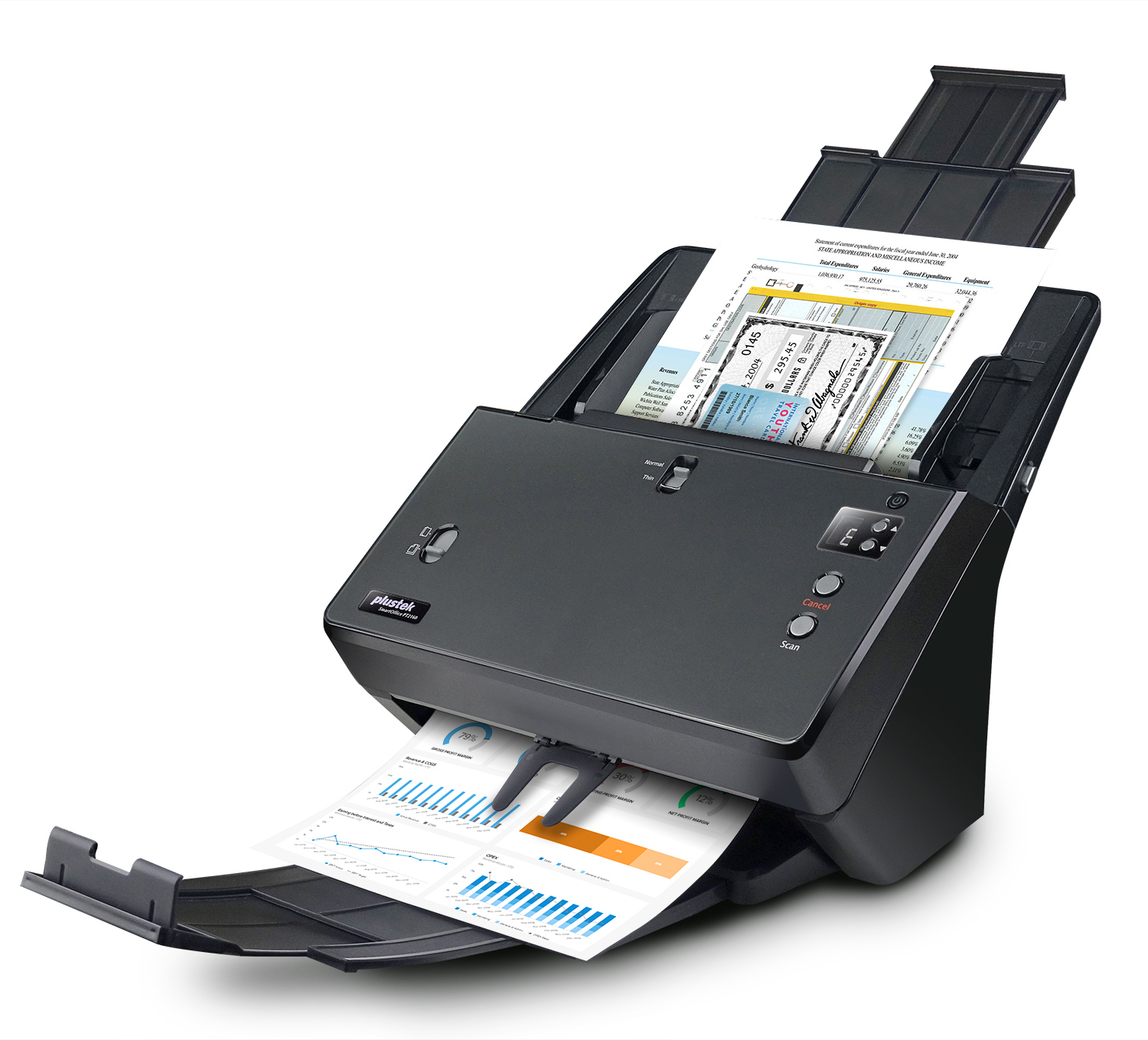

SmartOffice PT2160 ADF scanner
600 x 600 DPI A3 Black
Model PT2160Part no. 0308EAN 4042485718878
56 specifications
- Weight4.1 kg
- ColourBlack
- Maximum scan size216 x 5080 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
- Auto document feeder (ADF) input capacity100 sheets
Overview
- Weight
- 4.1 kg
- Colour
- Black
- Maximum scan size
- 216 x 5080 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Auto document feeder (ADF) input capacity
- 100 sheets
- Brand
- Plustek
- Category
- Scanner
- Model
- PT2160
- Part numbers
- 0308, PT2160
- EAN / UPC
- 4042485718878, 783064718875
- Also known as
- Plustek SmartOffice PT2160 ADF scanner 600 x 600 DPI A3 Black
Specifications
56 specifications in 13 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Film scanning | No |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (greyscale, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Pad lifetime | 100000 pages |
| Roller lifetime | 300000 pages |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Light source | LED |
| Scan file formats | |
| Daily duty cycle (max) | 8000 pages |
| Button functions | Down, Scan, Standby, Up |
| Scan drivers | TWAIN |
| Ultrasonic double sheet detection | Yes |
| Ultrasonic sensor | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A3, A4 |
| Letter | Yes |
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan area (ADF) | 216 x 5080 mm |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Input voltage | 24 V |
| Current | 1.25 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 319.9 mm |
| Depth | 298.2 mm |
| Height | 236.6 mm |
| Weight | 4.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Plustek OCR Plustek DocAction Plustek DocTWAIN |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 4096 MB |
| Minimum processor | Intel Core i5 2.5 GHz |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Other features
| Specification | Value |
|---|---|
| Maximum media length | 5.08 m |
| Maximum media width | 244 |
