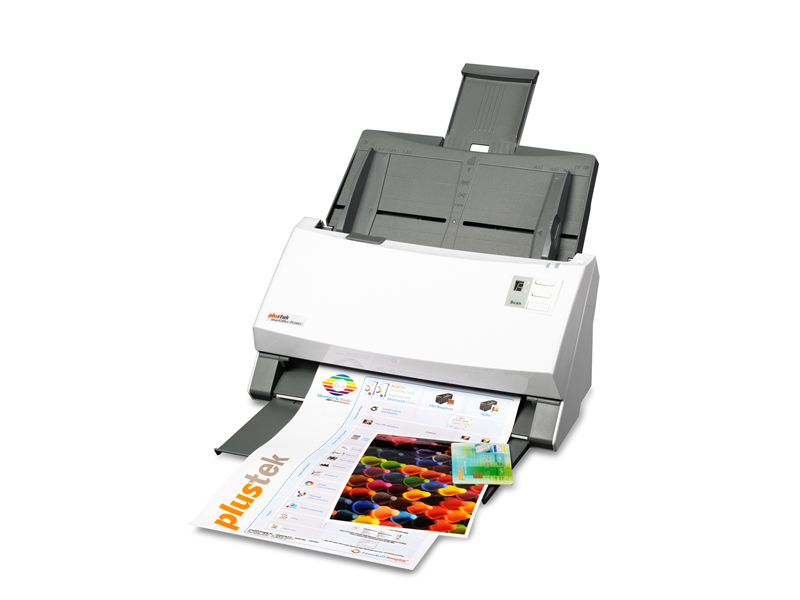

Plustek SmartOffice PS506U ADF scanner

Plustek SmartOffice PS506U ADF scanner

600 x 600 DPI A4 White

Model PS506UPart no. 0242UKEAN 5052184185498

36 specifications

Weight2.7 kg
ColourWhite
Maximum scan size216 x 5080 mm
Scanner typeADF scanner
Sensor typeCCD
Auto document feeder (ADF) input capacity100 sheets

See all specifications

Overview

Weight: 2.7 kg
Colour: White
Maximum scan size: 216 x 5080 mm
Scanner type: ADF scanner
Sensor type: CCD
Auto document feeder (ADF) input capacity: 100 sheets

Brand: Plustek
Category: Scanner
Model: PS506U
Part number: 0242UK
EAN / UPC: 5052184185498, 783064425766, 4042485425769, 5054484586753 +1 more
Also known as: Plustek SmartOffice PS506U ADF scanner 600 x 600 DPI A4 White

Specifications

36 specifications in 10 groups

Scanning

Specification	Value
Maximum scan size	216 x 5080 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Film scanning	No
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (colour, A4)	45 ppm
Black/white scanning colour modes	Grayscale

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	No
Product colour	White

Performance

Specification	Value
Sensor type	CCD
Light source	LED
Daily duty cycle (max)	6000 pages
Button functions	Down, Scan, Up
Scan drivers	ISIS, TWAIN

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card
Multi feed detection	Yes
Letter	Yes
Auto Document Feeder (ADF) media weight	40 - 220 g/m²
Maximum scan area (ADF)	216 x 2500 mm
Minimum scan area (ADF)	13.2 x 13.2 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0

Weight & dimensions

Specification	Value
Width	318.7 mm
Depth	230.7 mm
Height	228.3 mm
Weight	2.7 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Minimum RAM	1024 MB
Minimum processor	Pentium IV 2.0 GHz
Minimum storage drive space	800 MB
Windows operating systems supported	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84716070
