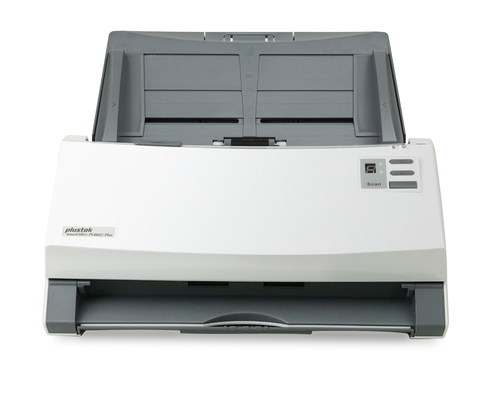

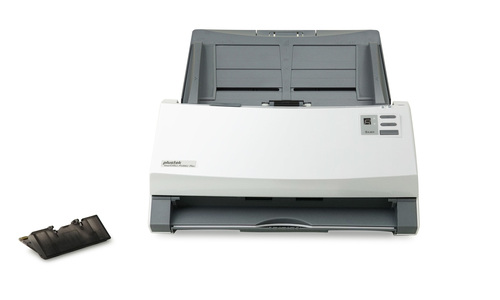

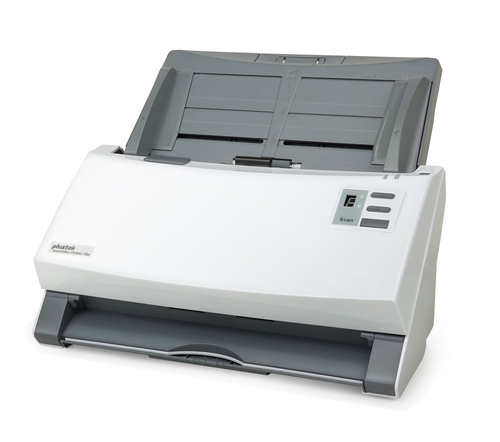

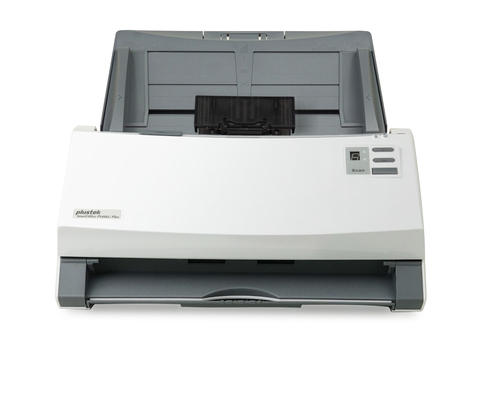

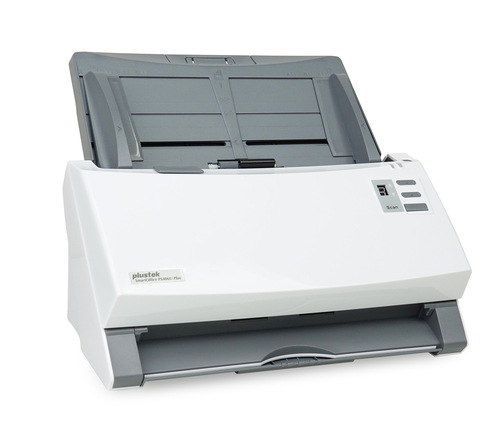

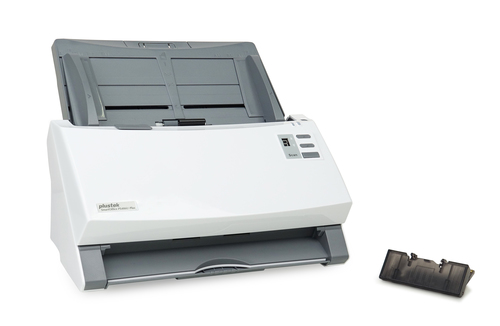

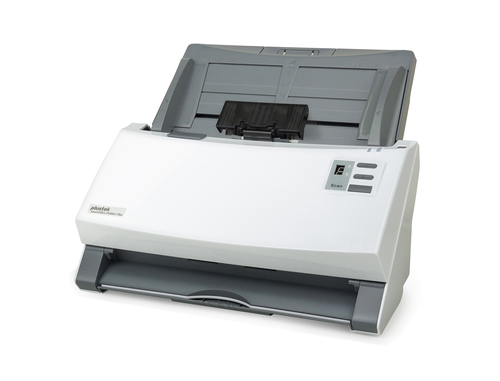

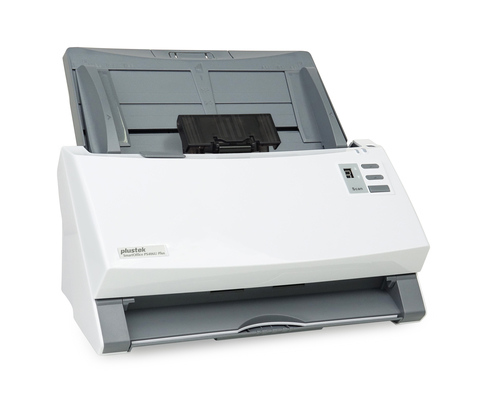

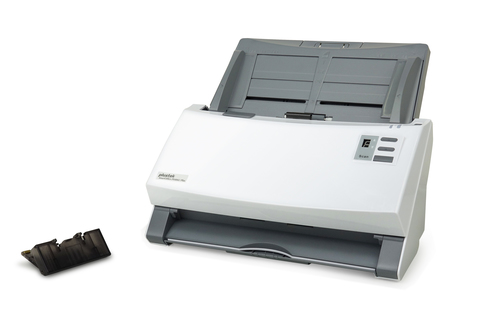

PS406U Plus
Model PS406U PlusPart no. PS406U PLUSEAN 4042485568664
50 specifications
- Weight2.7 kg
- ColourGrey, White
- Maximum scan size216 x 5080 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
- Auto document feeder (ADF) input capacity100 sheets
Overview
- Weight
- 2.7 kg
- Colour
- Grey, White
- Maximum scan size
- 216 x 5080 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Auto document feeder (ADF) input capacity
- 100 sheets
- Brand
- Plustek
- Category
- Scanner
- Model
- PS406U Plus
- Part numbers
- PS406U PLUS, 0296
- EAN / UPC
- 4042485568664
- Also known as
- Plustek SmartOffice PS406U Plus ADF scanner 600 x 600 DPI A4 Grey, White
Specifications
50 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Hardware resolution | 600 x 600 pixels |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Grey, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Light source | LED |
| Daily duty cycle (max) | 4000 pages |
| Button functions | Down, Scan, Standby, Up |
| Scan drivers | TWAIN |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plastic Card, Thick paper, Thin paper |
| Multi feed detection | Yes |
| Letter | Yes |
| Card thickness (max) | 1.2 mm |
| Plastic card media weight | 40 - 220 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.08 m |
| Maximum scan area (ADF) | 216 x 5080 mm |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Input voltage | 24 V |
| Current | 1.25 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 318.7 mm |
| Depth | 230.7 mm |
| Height | 228.3 mm |
| Weight | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Minimum RAM | 1024 MB |
| Minimum processor | PentiumR IV 2.4 GHz |
| Minimum storage drive space | 2000 MB |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE |
