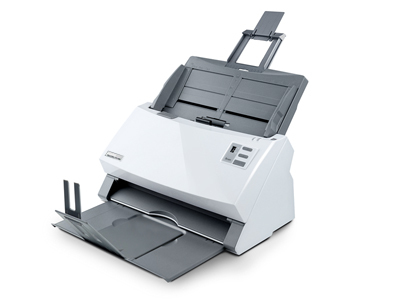

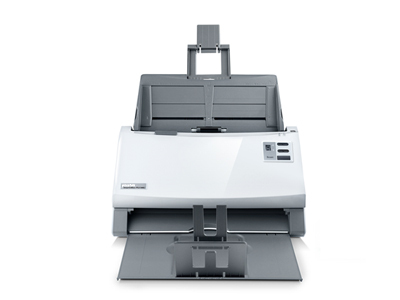

PS3180U scanner
600 x 1200 DPI A4 Grey
Model PS3180UEAN 783064427449
28 specifications
- Weight2.7 kg
- ColourGrey
- Maximum scan size216 x 5080 mm
- Built-in displayNo
- Sensor typeCIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.7 kg
- Colour
- Grey
- Maximum scan size
- 216 x 5080 mm
- Built-in display
- No
- Sensor type
- CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Plustek
- Category
- Scanner
- Model
- PS3180U
- Part number
- PS3180U
- EAN / UPC
- 783064427449
- Also known as
- Plustek PS3180U scanner 600 x 1200 DPI A4 Grey
Specifications
28 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 1200 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (greyscale, A4) | 80 ppm |
| ADF scan speed (colour, A4) | 45 ppm |
| Duplex ADF scan speed (b/w, A4) | 160 ipm |
| Duplex ADF scan speed (colour, A4) | 90 ipm |
Design
| Specification | Value |
|---|---|
| Built-in display | No |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Daily duty cycle (max) | 80000 pages |
| Scan to | TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 318.7 mm |
| Depth | 230.7 mm |
| Height | 228.3 mm |
| Weight | 2.7 kg |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
| Windows operating systems supported | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11 |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model PS3180U · certified Dec 5, 2016 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 0.29 W |
| Standby power | 0.03 W |
