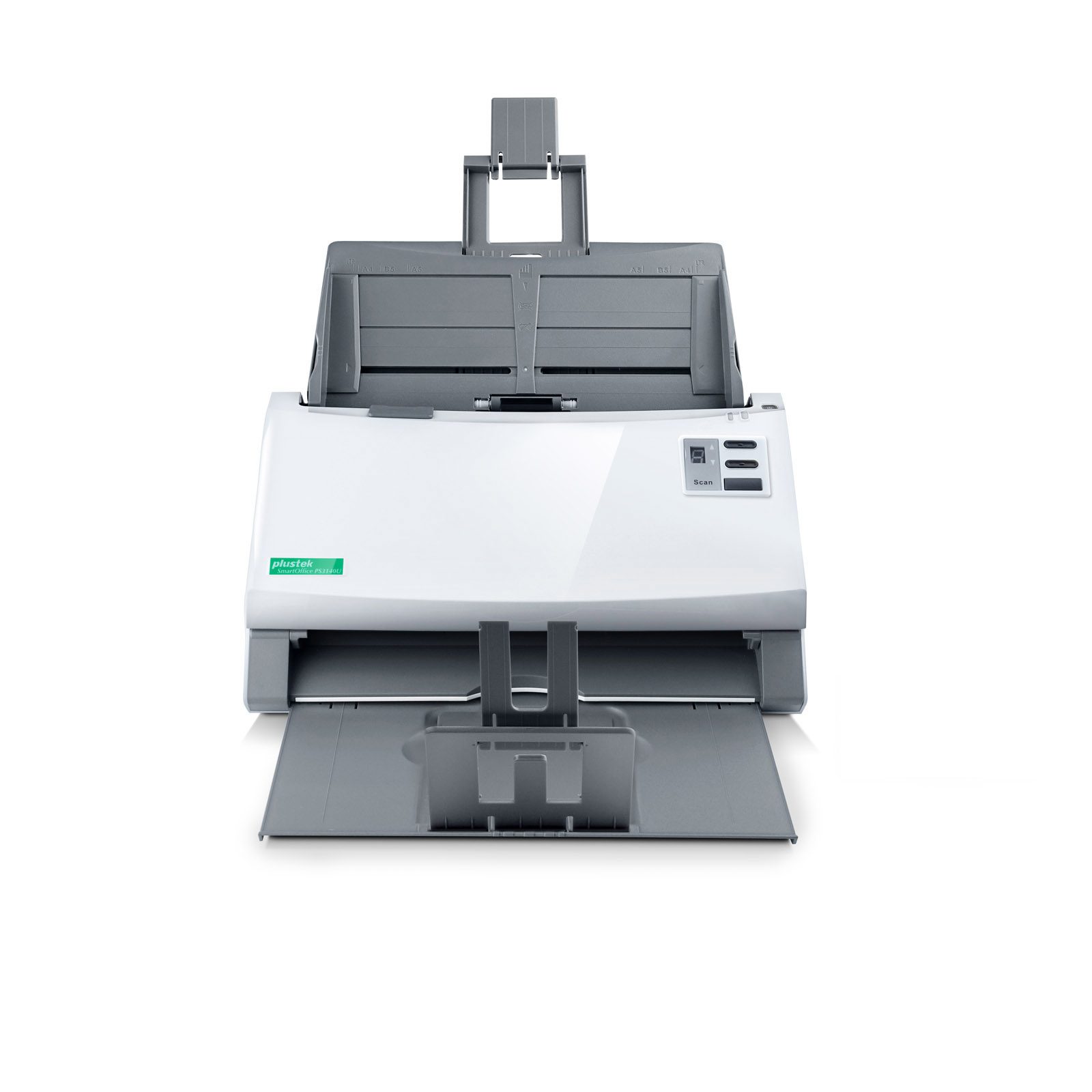

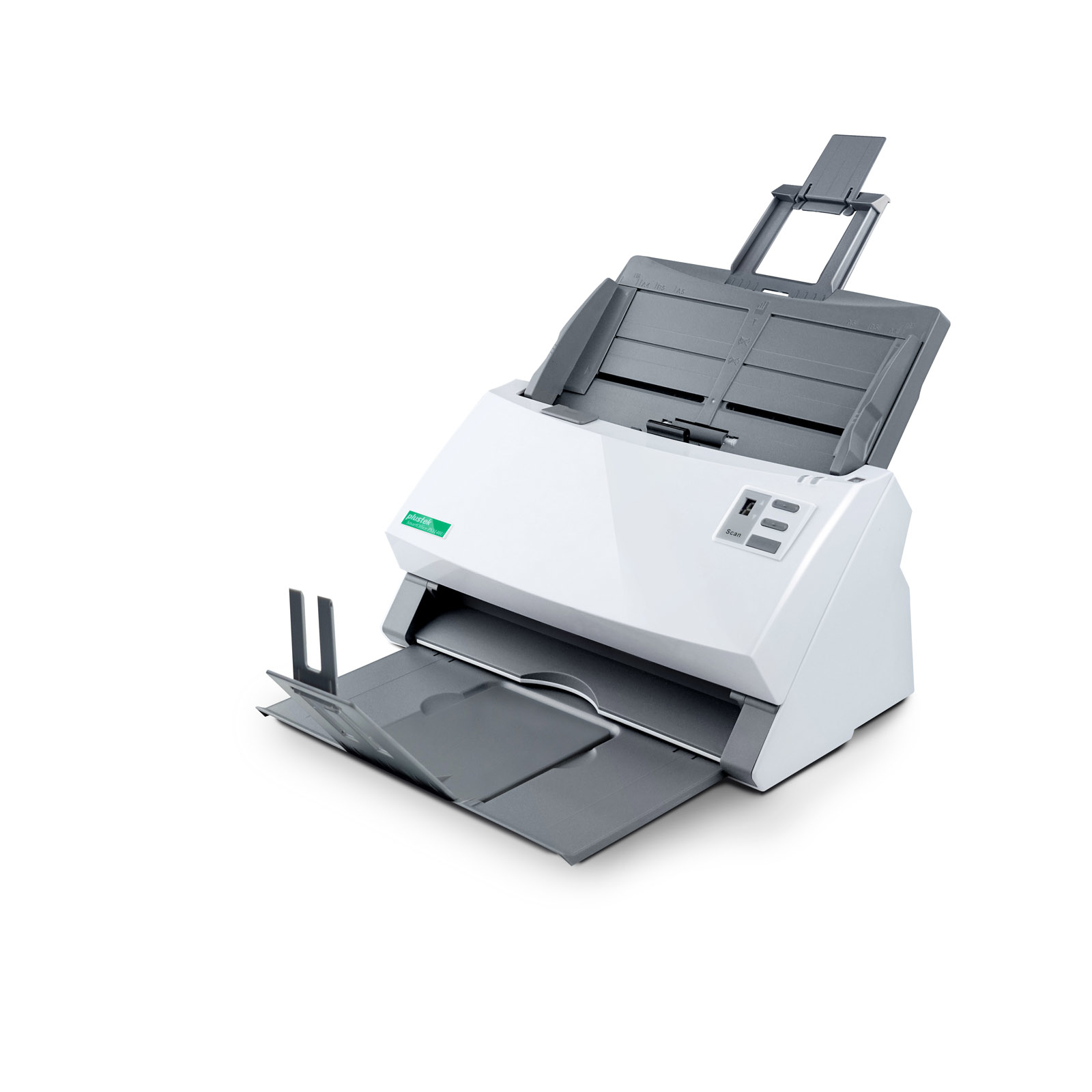

SmartOffice PS3140U ADF scanner
600 x 600 DPI A4 Grey, White
Model PS3140UPart no. 0297TSEAN 783064427463
48 specifications
- Weight2.7 kg
- ColourGrey, White
- Maximum scan size216 x 5080 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
- Auto document feeder (ADF) input capacity100 sheets
Overview
- Weight
- 2.7 kg
- Colour
- Grey, White
- Maximum scan size
- 216 x 5080 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Auto document feeder (ADF) input capacity
- 100 sheets
- Brand
- Plustek
- Category
- Scanner
- Model
- PS3140U
- Part numbers
- 0297TS, PS3140U
- EAN / UPC
- 783064427463, 4042485427466
- Also known as
- Plustek SmartOffice PS3140U ADF scanner 600 x 600 DPI A4 Grey, White
Specifications
48 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (greyscale, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Pad lifetime | 100000 pages |
| Roller lifetime | 300000 pages |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Grey, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Light source | LED |
| Daily duty cycle (max) | 4000 pages |
| Button functions | Down, Scan, Standby, Up |
| Scan drivers | TWAIN |
| Ultrasonic double sheet detection | Yes |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Long-paper mode | Yes |
| Multi feed detection | Yes |
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 40 - 220 g/m² |
| Maximum scan area (ADF) | 216 x 5080 mm |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Output current | 1.25 A |
| Output voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 318.7 mm |
| Depth | 230.7 mm |
| Height | 228.3 mm |
| Weight | 2.7 kg |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Minimum RAM | 1024 MB |
| Minimum processor | PentiumR IV 2.4 GHz |
| Minimum storage drive space | 2048 MB |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
Technical details
| Specification | Value |
|---|---|
| Maximum paper size | 216 x 5080 mm |
