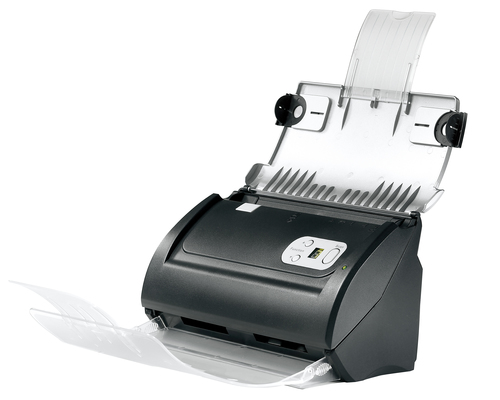

SmartOffice PS186 ADF scanner
600 x 600 DPI A4 Black, Silver
Model PS186Part no. 0285EAN 4042485708114
41 specifications
- Weight1.66 kg
- ColourBlack, Silver
- Maximum scan size216 x 2500 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
- Auto document feeder (ADF) input capacity50 sheets
Overview
- Weight
- 1.66 kg
- Colour
- Black, Silver
- Maximum scan size
- 216 x 2500 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Auto document feeder (ADF) input capacity
- 50 sheets
- Brand
- Plustek
- Category
- Scanner
- Model
- PS186
- Part numbers
- 0285, PS186
- EAN / UPC
- 4042485708114
- Also known as
- Plustek SmartOffice PS186 ADF scanner 600 x 600 DPI A4 Black, Silver
Specifications
41 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 2500 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| ADF scan speed (b/w, A4) | 25 ppm |
| ADF scan speed (colour, A4) | 8 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Daily battery life | 1500 pages |
| Pad lifetime | 20000 pages |
| Roller lifetime | 100000 pages |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | No |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Light source | LED |
| Daily duty cycle (max) | 1500 pages |
| Button functions | Down, Scan, Up |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper |
| Card thickness (max) | 5 mm |
| Auto Document Feeder (ADF) media weight | 50 - 105 g/m² |
| Maximum scan area (ADF) | 216 x 2500 mm |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Input voltage | 24 V |
| Current | 0.75 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 263 mm |
| Depth | 127.5 mm |
| Height | 148 mm |
| Weight | 1.66 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Minimum RAM | 1024 MB |
| Minimum processor | PentiumR IV 2.4 GHz |
| Minimum storage drive space | 2000 MB |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Other features
| Specification | Value |
|---|---|
| Maximum media length | 2.5 m |
| Maximum media width | 220 |
