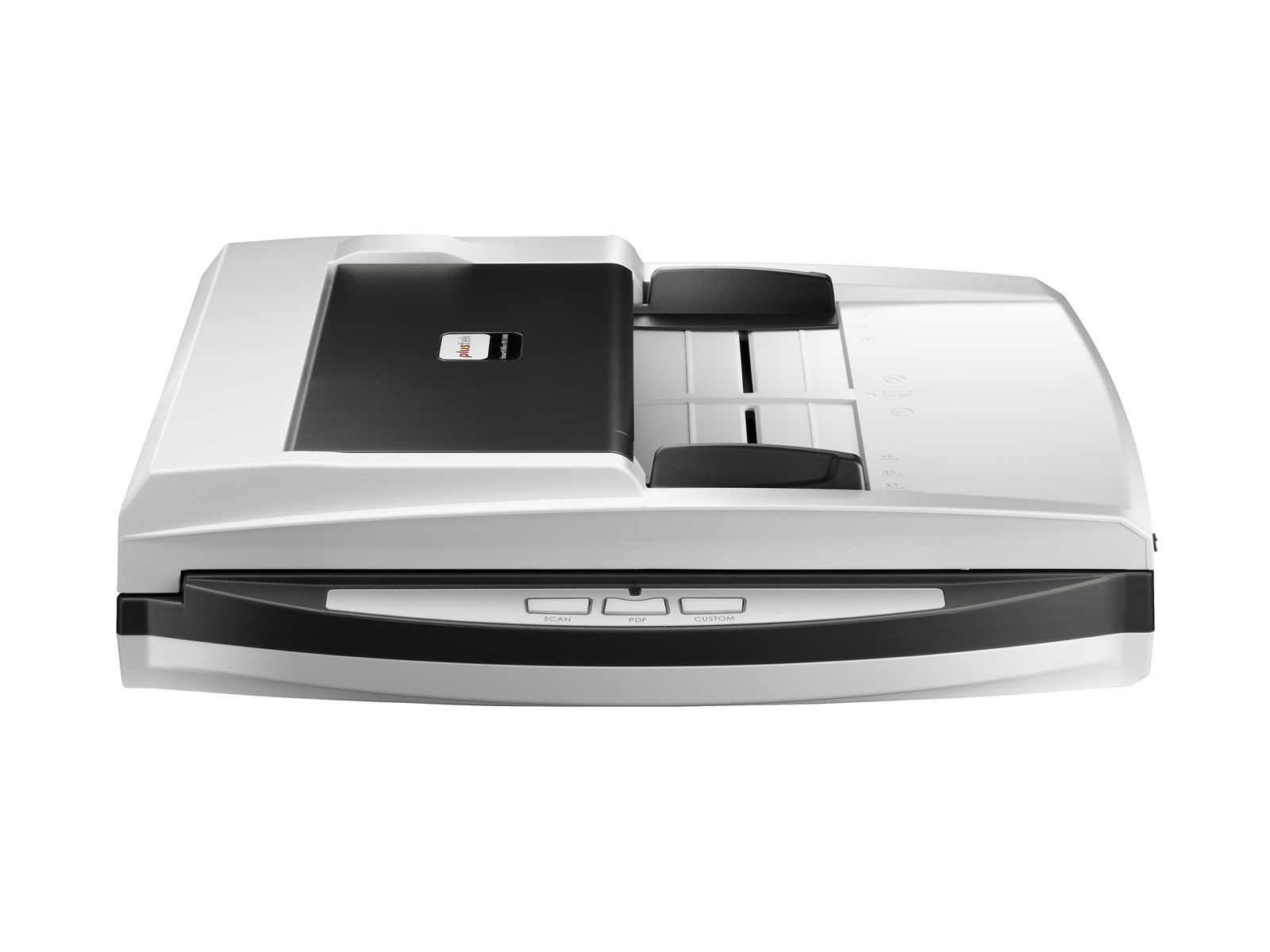

Plustek SmartOffice PN2040 Flatbed & ADF scanner

Plustek SmartOffice PN2040 Flatbed & ADF scanner

600 x 600 DPI A4 Black, White

Model PN2040Part no. 0204EAN 4042485595097

52 specifications

Weight3.78 kg
ColourBlack, White
Maximum scan size216 x 356 mm
Scanner typeFlatbed & ADF scanner
Sensor typeCIS
Auto document feeder (ADF) input capacity50 sheets

See all specifications

Overview

Weight: 3.78 kg
Colour: Black, White
Maximum scan size: 216 x 356 mm
Scanner type: Flatbed & ADF scanner
Sensor type: CIS
Auto document feeder (ADF) input capacity: 50 sheets

Brand: Plustek
Category: Scanner
Model: PN2040
Part number: 0204
EAN / UPC: 4042485595097
Also known as: Plustek SmartOffice PN2040 Flatbed & ADF scanner 600 x 600 DPI A4 Black, White

Specifications

52 specifications in 13 groups

Scanning

Specification	Value
Maximum scan size	216 x 356 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	20 ppm
ADF scan speed (colour, A4)	9 ppm
Duplex ADF scan speed (b/w, A4)	40 ipm
Duplex ADF scan speed (colour, A4)	10 ipm

Design

Specification	Value
Scanner type	Flatbed & ADF scanner
Built-in display	No
Product colour	Black, White

Performance

Specification	Value
Sensor type	CIS
Scan file formats	DOC, JPG, PDF, TIFF, XLS, XLSX
Daily duty cycle (max)	1000 pages
Button functions	Scan
Scan drivers	TWAIN

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	50 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Card stock, Plain paper
ISO A-series sizes (A0...A9)	A4
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Maximum scan width	21.6 cm
Maximum scan length	35.6 cm
Maximum scan area (ADF)	216 x 356 mm
Minimum scan area (ADF)	13.2 x 13.2 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	RJ-45, USB 2.0

Network

Specification	Value
Ethernet LAN	Yes

Power

Specification	Value
Power supply type	DC
Input voltage	24 V
Current	0.75 A

Weight & dimensions

Specification	Value
Width	418 mm
Depth	326 mm
Height	101 mm
Weight	3.78 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	LAN (RJ-45), USB
Quick start guide	Yes
Drivers included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Linux operating systems supported	Yes
Minimum RAM	1024 MB
Minimum processor	Pentium IV 2.4 GHz
Minimum storage drive space	2000 MB
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi

Other features

Specification	Value
Image formats supported	BMP, JPG, PCX, TIF
Certification	WEEE, RoHS, FCC, CE
