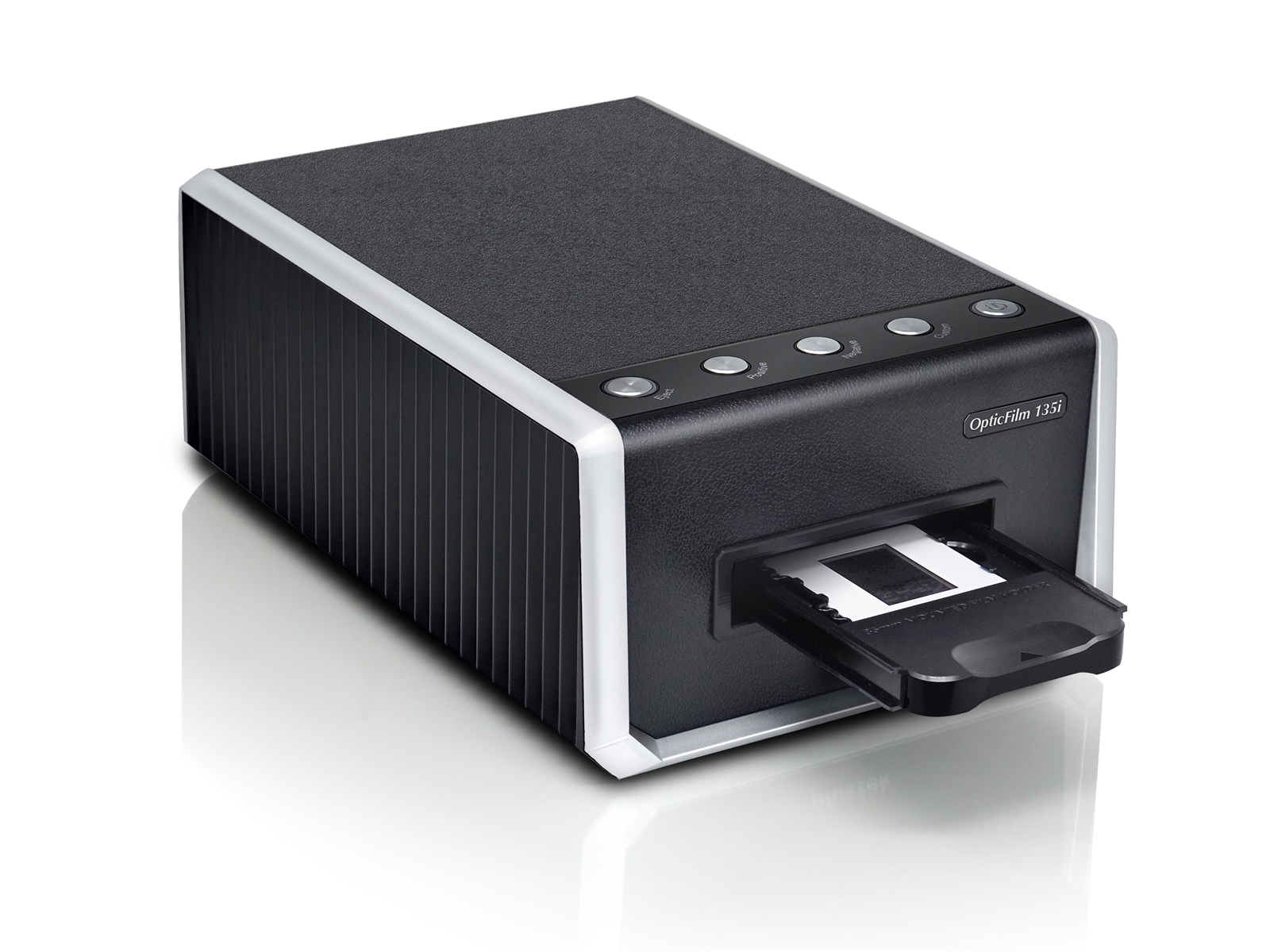

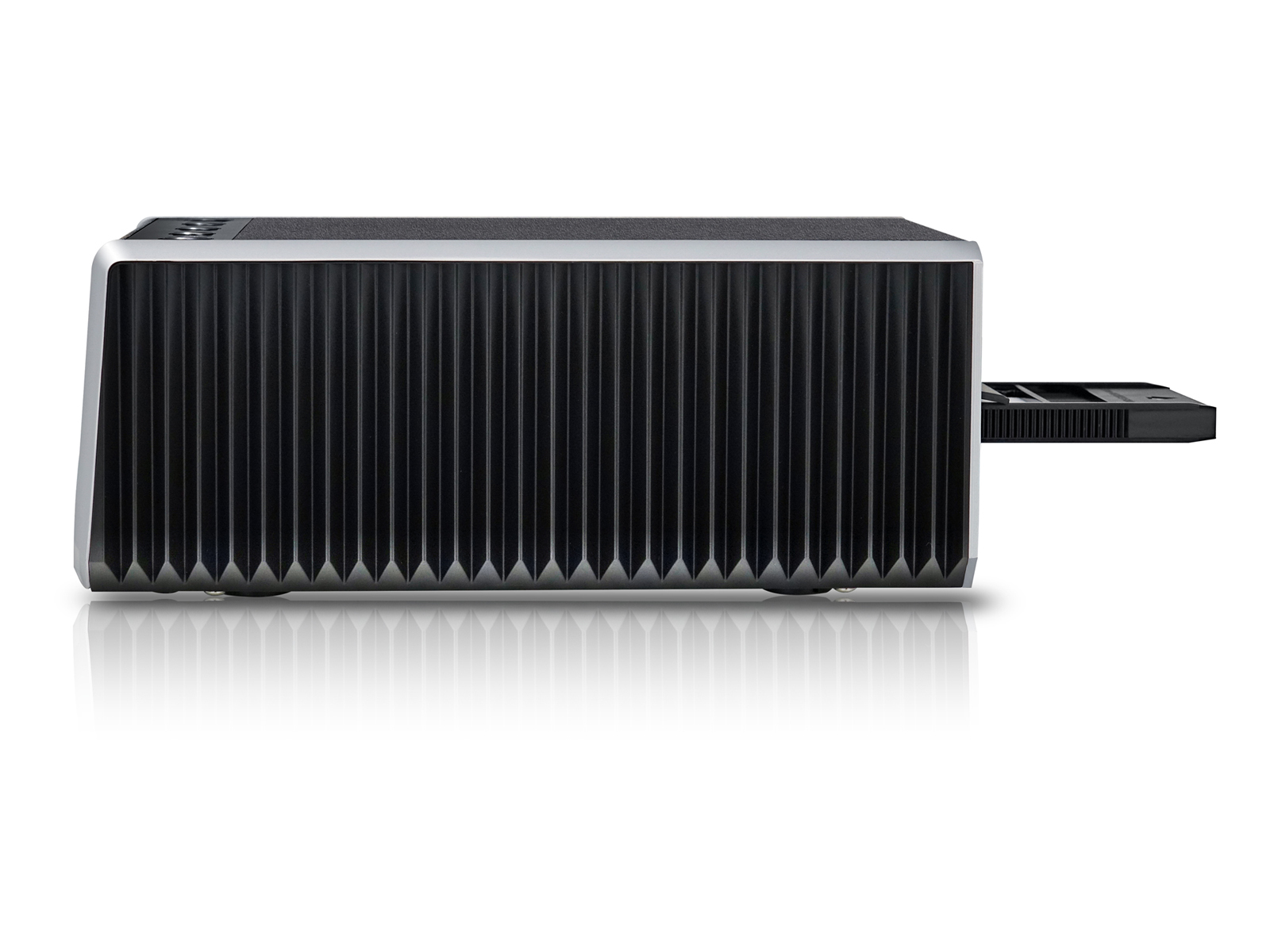

OpticFilm 135i
Model OpticFilm 135iPart no. 0312EAN 4042485368851
34 specifications
- Weight1.56 kg
- ColourBlack, Silver
- Maximum scan size35 x 226 mm
- Scanner typeFilm/slide scanner
- Sensor typeCCD
- Maximum scan width3.5 cm
Overview
- Weight
- 1.56 kg
- Colour
- Black, Silver
- Maximum scan size
- 35 x 226 mm
- Scanner type
- Film/slide scanner
- Sensor type
- CCD
- Maximum scan width
- 3.5 cm
- Brand
- Plustek
- Category
- Scanner
- Model
- OpticFilm 135i
- Part number
- 0312
- EAN / UPC
- 4042485368851
- Also known as
- Plustek OpticFilm 135i Film/slide scanner 7200 x 7200 DPI Black, Silver
Specifications
34 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 35 x 226 mm |
| Optical scanning resolution | 7200 x 7200 DPI |
| Duplex scanning | No |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Film scanning | Yes |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Film/slide scanner |
| Built-in display | No |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | LED |
| Button functions | Scan |
| High Dynamic Range (HDR) supported | Yes |
Paper handling
| Specification | Value |
|---|---|
| Maximum scan width | 3.5 cm |
| Maximum scan length | 22.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Input voltage | 24 V |
| Current | 0.75 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 259.2 mm |
| Depth | 175 mm |
| Height | 104.3 mm |
| Weight | 1.56 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Plustek QuickScan Plus |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Minimum RAM | 4000 MB |
| Minimum storage drive space | 20000 MB |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
