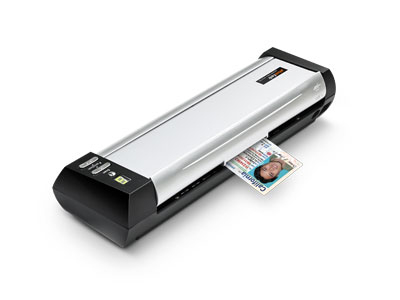

D430 Plus
Model D430 PlusPart no. D430PLUSEAN 783064600026
31 specifications
- Weight960 g
- ColourBlack, Silver
- Maximum scan size216 x 1270 mm
- Scanner typeCDF + Sheet-fed scanner
- Sensor typeDual CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 960 g
- Colour
- Black, Silver
- Maximum scan size
- 216 x 1270 mm
- Scanner type
- CDF + Sheet-fed scanner
- Sensor type
- Dual CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Plustek
- Category
- Scanner
- Model
- D430 Plus
- Part number
- D430PLUS
- EAN / UPC
- 783064600026
- Also known as
- Plustek D430 Plus CDF + Sheet-fed scanner 600 x 600 DPI A4 Black, Silver
Specifications
31 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 1270 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Scan speed (b/w, low res, A4) | 1.9 sec/page |
Design
| Specification | Value |
|---|---|
| Scanner type | CDF + Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Daily duty cycle (max) | 1000 pages |
| Scan to | TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Card thickness (max) | 0.8 mm |
| Paper tray media weight | 50 - 150 g/m² |
| Maximum scan area (ADF) | 216 x 1270 mm |
| Minimum scan area (ADF) | 12.7 x 12.7 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Input voltage | 24 V |
| Current | 0.75 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 303 mm |
| Depth | 94 mm |
| Height | 60 mm |
| Weight | 960 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 8, Windows 10, Windows 11 |
