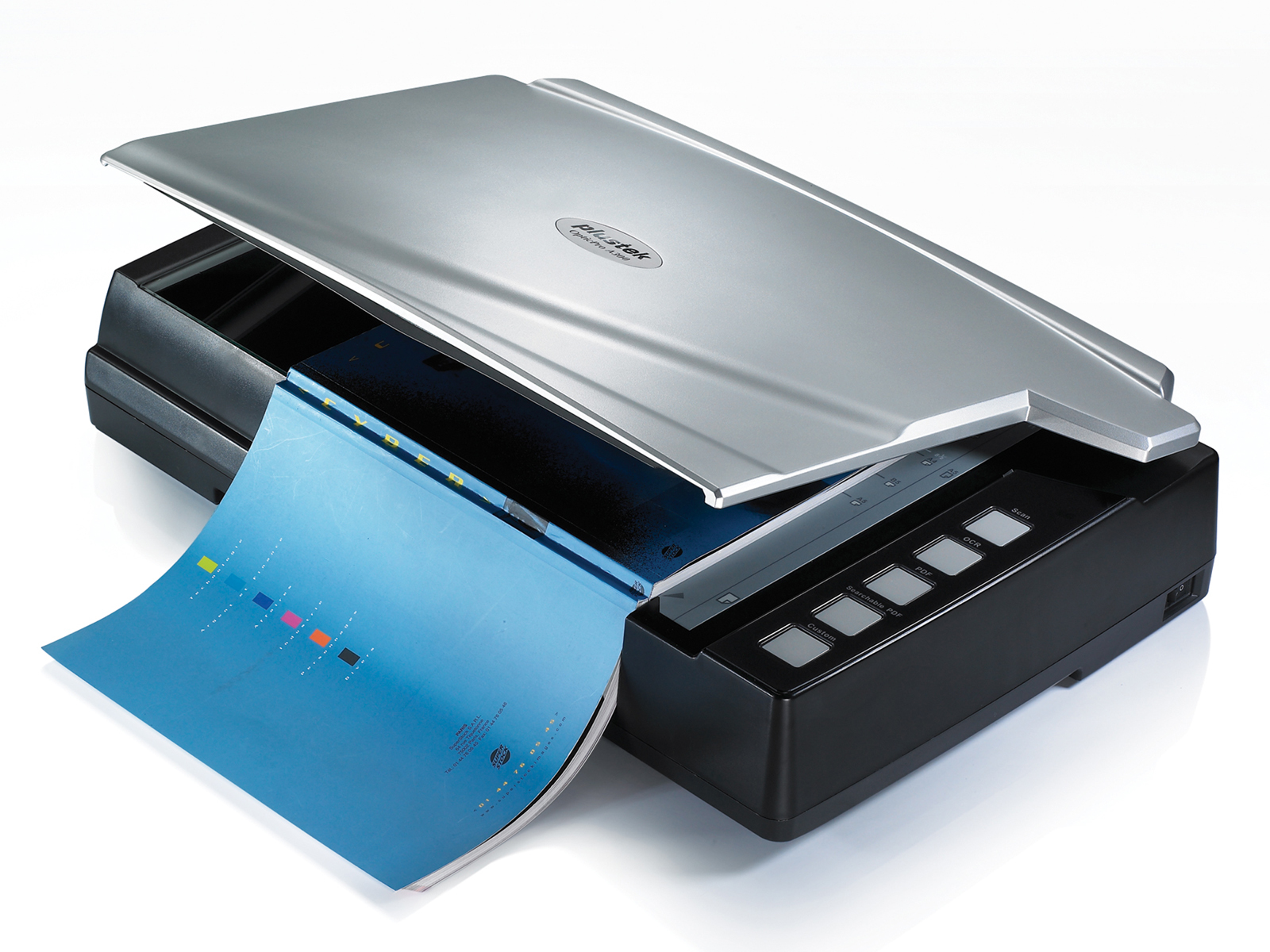

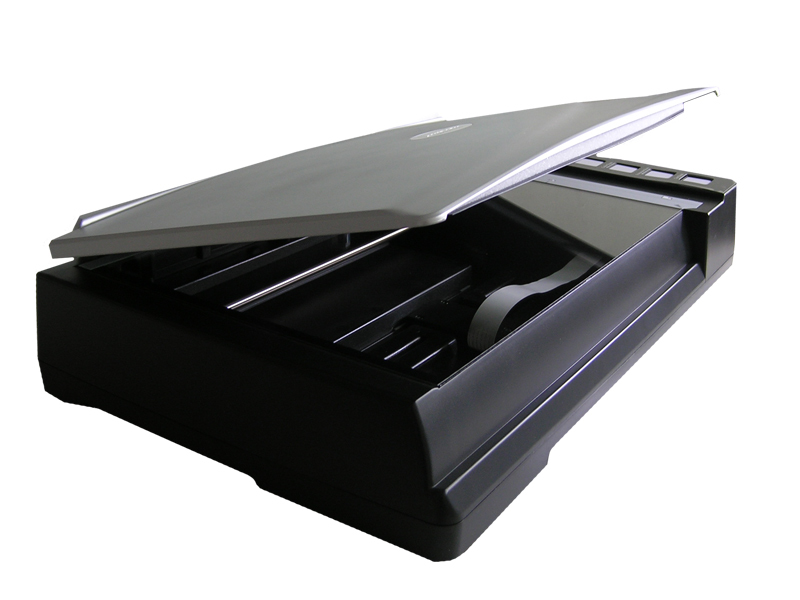

Plustek OpticBook A300 Flatbed scanner
600 x 1200 DPI A3 Black
Model A300Part no. 0168EAN 783064354158
37 specifications
- Weight7.7 kg
- ColourBlack
- Maximum scan size304.8 x 431.8 mm
- Scanner typeFlatbed scanner
- Sensor typeCCD
- Maximum ISO A-series paper sizeA3
Overview
- Weight
- 7.7 kg
- Colour
- Black
- Maximum scan size
- 304.8 x 431.8 mm
- Scanner type
- Flatbed scanner
- Sensor type
- CCD
- Maximum ISO A-series paper size
- A3
- Brand
- Plustek
- Category
- Scanner
- Model
- A300
- Part numbers
- 0168, 271-BBM21-C
- EAN / UPC
- 783064354158, 808111675076, 863189860724
- Also known as
- Plustek OpticBook A300 Flatbed scanner 600 x 1200 DPI A3 Black
Specifications
37 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 304.8 x 431.8 mm |
| Optical scanning resolution | 600 x 1200 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Flatbed scan speed (b/w, A3) | 2.1 sec/page |
| Flatbed scan speed (colour, A3) | 2.48 sec/page |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | Flatbed scanner |
| Built-in display | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | CCFL |
| Daily duty cycle (max) | 5000 pages |
| Scan drivers | TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 36 W |
| Power consumption (standby) | 8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 623 mm |
| Depth | 400 mm |
| Height | 133 mm |
| Weight | 7.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 240 mm |
| Package height | 540 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
| Quick start guide | Yes |
| Drivers included | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 512 MB |
| Minimum processor | Pentium IV 2.0 GHz |
| Minimum storage drive space | 800 MB |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
