Scan Station 100 Plus
Model Scan Station 100 PlusPart no. 8874778EAN 041778874776
28 specifications
- Memory1024 MB
- Storage40 GB
- Weight18.1 kg
- Maximum scan size215 x 863 mm
- Scanner typeSheet-fed scanner
- Sensor typeCCD
Overview
- Memory
- 1024 MB
- Storage
- 40 GB
- Weight
- 18.1 kg
- Maximum scan size
- 215 x 863 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CCD
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- Scan Station 100 Plus
- Part number
- 8874778
- EAN / UPC
- 041778874776
- Also known as
- Kodak Alaris Scan Station 100 Plus Sheet-fed scanner
Specifications
28 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215 x 863 mm |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Film scanning | No |
| Flatbed scan speed (b/w, A4) | 2.4 sec/page |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |

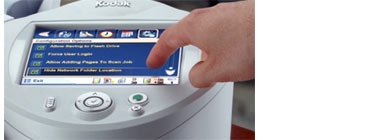

| Display | Touch screen 93 mm x 133 mm, 18-bit, 640 x 480 |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Internal memory | 1024 MB |
| Built-in processor | CELERON D |
| Processor frequency | 2400 MHz |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 50 sheets |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP, SMB, SMTP, DHCP, NT |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18.1 kg |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 512 MB |
| Minimum processor | Pentium 3 1 GHz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Other features
| Specification | Value |
|---|---|
| Network ready | Yes |
| Dimensions (WxDxH) | 597 x 338 x 287 mm |
| HDD capacity | 40 GB |
| Certification | AS/NZS 3548 Class A (C-Tick Mark), CAN/CSA-C22.2 No. 60950-1 (TUV C Mark), Canada ICES-003 Issue 3 (Class A), GB4943, GB9254 (Class A), GB 17625.1 Harmonics (CCC “S&E” Mark), EN 55022 ITE Emissions (Class A), EN 61000-3-3 Flicker, EN 55024 ITE Immunity (CE Mark), EN 60950 (TUV GS Mark), IEC 60950, C |
| Minimum scan size | 50 mm x 87.5 mm |
