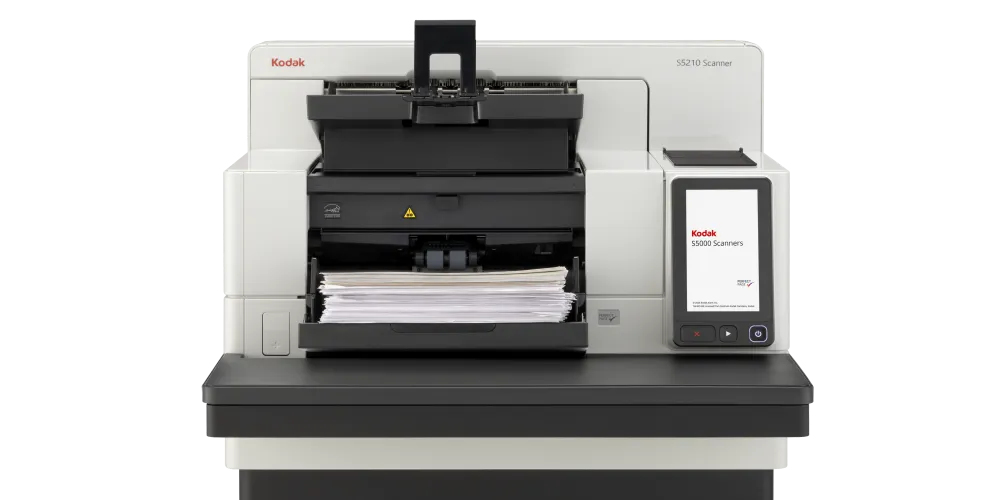

S5210 ADF scanner
600 x 600 DPI A3 Grey, White
Model S5210Part no. 8016701EAN 041778016701
51 specifications
- Display19.1 cm (7.5")
- Weight196 kg
- ColourGrey, White
- Maximum scan size305 x 10160 mm
- Scanner typeADF scanner
- Sensor typeCCD
Overview
- Display
- 19.1 cm (7.5")
- Weight
- 196 kg
- Colour
- Grey, White
- Maximum scan size
- 305 x 10160 mm
- Scanner type
- ADF scanner
- Sensor type
- CCD
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- S5210
- Part number
- 8016701
- EAN / UPC
- 041778016701
- Also known as
- Kodak Alaris S5210 ADF scanner 600 x 600 DPI A3 Grey, White
Specifications
51 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 305 x 10160 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A3) | 210 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Grey, White |
| Display | LCD |
| Display diagonal | 19.1 cm (7.5") |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Buttons, Touch |
Performance
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Light source | White LED (2x) |
| Scan file formats | BMP, JPEG, XLSX, DOCX, TIFF, PDF, PNG, RTF |
| Barcode reader | Yes |
| Scan drivers | ISIS, Kofax VRS, TWAIN, WIA |
| Scanning noise level | 62 dB |
| Scanner smart software features | Correction & auto-cropping |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 750 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | DHCP, TCP/IP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 240 W |
| Power supply type | AC |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| Power consumption (PowerSave) | 23.7 W |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 693 mm |
| Depth | 823 mm |
| Height | 1308 mm |
| Weight | 196 kg |
| Folded height | 106.7 cm |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 8192 MB |
| Minimum processor | Intel i5 - Gen 12 |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RCM, cTUVus, ICES, CE, GS mark, VCCI, Norma Oficial Mexicana (NOM), Federal Communications Commission (FCC), UKCA |
| Scan media weight | 25 - 433 g/m² |
| Control panel | Yes |
Technical details
| Specification | Value |
|---|---|
| Linear (1D) barcodes supported | Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
