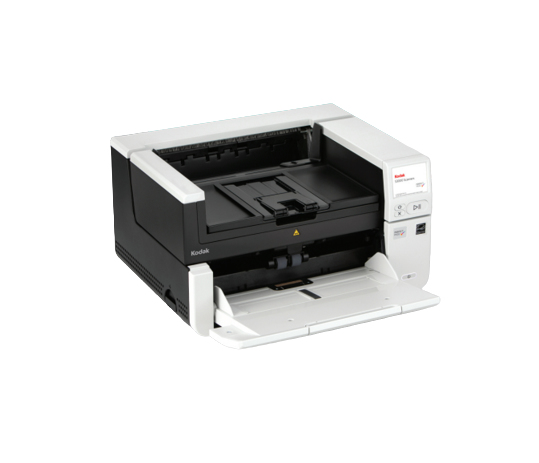

S3140 MAX
Model S3140 MAXPart no. 8009441EAN 041778009444
47 specifications
- Display8.89 cm (3.5")
- Weight16.5 kg
- ColourBlack, White
- Maximum scan size305 x 457 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
Overview
- Display
- 8.89 cm (3.5")
- Weight
- 16.5 kg
- Colour
- Black, White
- Maximum scan size
- 305 x 457 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- S3140 MAX
- Part number
- 8009441
- EAN / UPC
- 041778009444
- Also known as
- Kodak S3140 MAX ADF scanner 600 x 600 DPI A3 Black, White
Specifications
47 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 305 x 457 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 140 ppm |
| Duplex ADF scan speed (b/w, A4) | 280 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Light source | RGB LED |
| Scan file formats | BMP, JPEG, PDF, PNG, RTF, TIFF |
| Daily duty cycle (max) | 50000 pages |
| Scan drivers | ISIS, Kofax VRS, SANE, TWAIN, WIA |
| Scanning noise level | 66 dB |
Input capacity
| Specification | Value |
|---|---|
| Standard input capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Auto Document Feeder (ADF) media weight | 27 - 433 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, DHCP |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 457.2 mm |
| Depth | 370.8 mm |
| Height | 295 mm |
| Weight | 16.5 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Server operating systems supported | Windows Server 2012 R2 x64, Windows Server 2016 x64, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Other features
| Specification | Value |
|---|---|
| Recommended system requirements | INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | S mark, RCM, cTUVus & ICES-003, CCC, CE, GS Mark, BIS, VCCI, NOM, EAC, KC, BSMI, cTUVus & FCC |
| Minimum scan size | 63.5 mm x 71.1 mm |
Technical details
| Specification | Value |
|---|---|
| Linear (1D) barcodes supported | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
