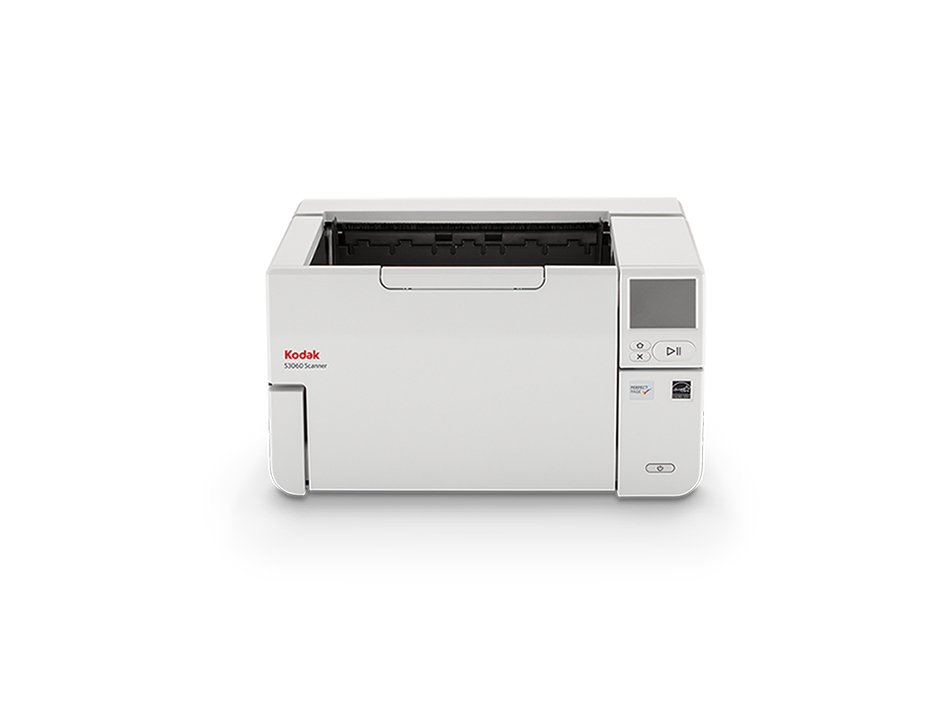

Kodak S3060F Flatbed & ADF scanner
600 x 600 DPI A3 Black, White
Model S3060FPart no. 8001745EAN 041778001745
52 specifications
- Display8.89 cm (3.5")
- Weight16.8 kg
- ColourBlack, White
- Maximum scan size305 x 4060 mm
- Scanner typeFlatbed & ADF scanner
- Sensor typeDual CCD
Overview
- Display
- 8.89 cm (3.5")
- Weight
- 16.8 kg
- Colour
- Black, White
- Maximum scan size
- 305 x 4060 mm
- Scanner type
- Flatbed & ADF scanner
- Sensor type
- Dual CCD
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- S3060F
- Part number
- 8001745
- EAN / UPC
- 041778001745
- Also known as
- Kodak S3060F Flatbed & ADF scanner 600 x 600 DPI A3 Black, White
Specifications
52 specifications in 16 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 305 x 4060 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 60 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | Flatbed & ADF scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CCD |
| Light source | RGB LED |
| Scan file formats | DOC, JPEG, PDF, PNG, RTF, TIFF, XLS |
| Daily duty cycle (max) | 25000 pages |
| Barcode reader | Yes |
| Scan drivers | ISIS, TWAIN, WIA |
| Scanning noise level | 60 dB |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 300 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Auto Document Feeder (ADF) media weight | 27 - 433 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, DHCP |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| Power supply type | AC |
| Power consumption (standby) | 0.3 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 457.2 mm |
| Depth | 370.8 mm |
| Height | 254 mm |
| Weight | 16.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Capture Pro Limited Edition Smart Touch |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Ubuntu 16.04, Ubuntu 18.04 LTS |
| Server operating systems supported | Windows Server 2012 x64, Windows Server 2016 x64, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Other features
| Specification | Value |
|---|---|
| Recommended system requirements | Intel Core i3 3.5 GHz+, USB port 3.0/2.0, 3.43 GB RAM+ |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | S mark, RCM, cTUVus & ICES-003, CCC, CE, GS Mark, BIS, VCCI, NOM, EAC, KS, BSMI |
| Minimum scan size | 63.5 x 71.1 |
Technical details
| Specification | Value |
|---|---|
| Linear (1D) barcodes supported | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
