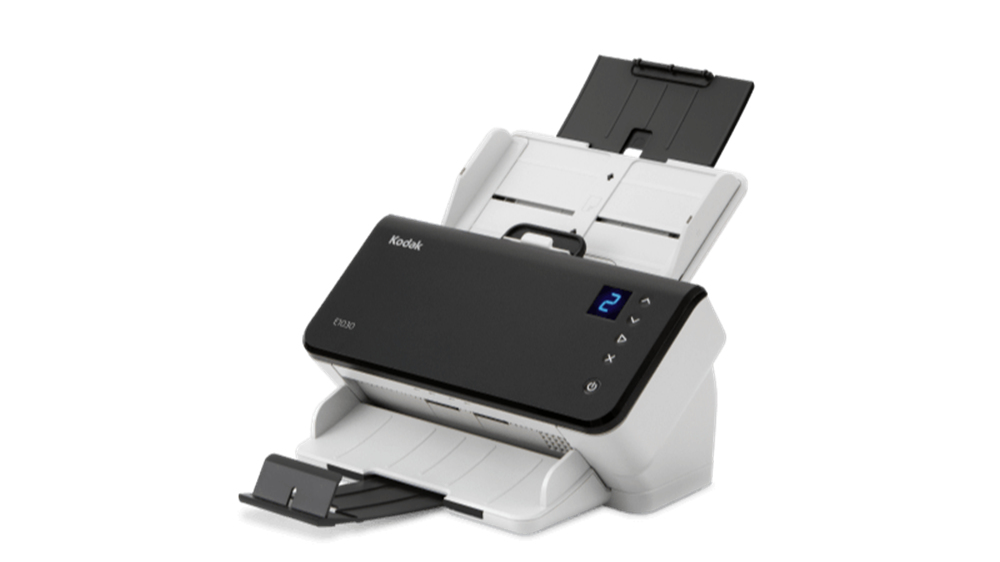

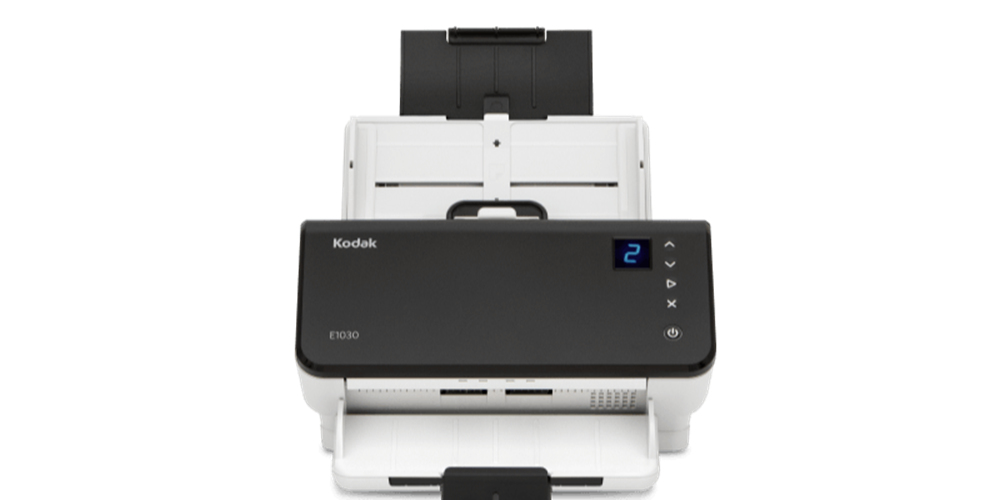

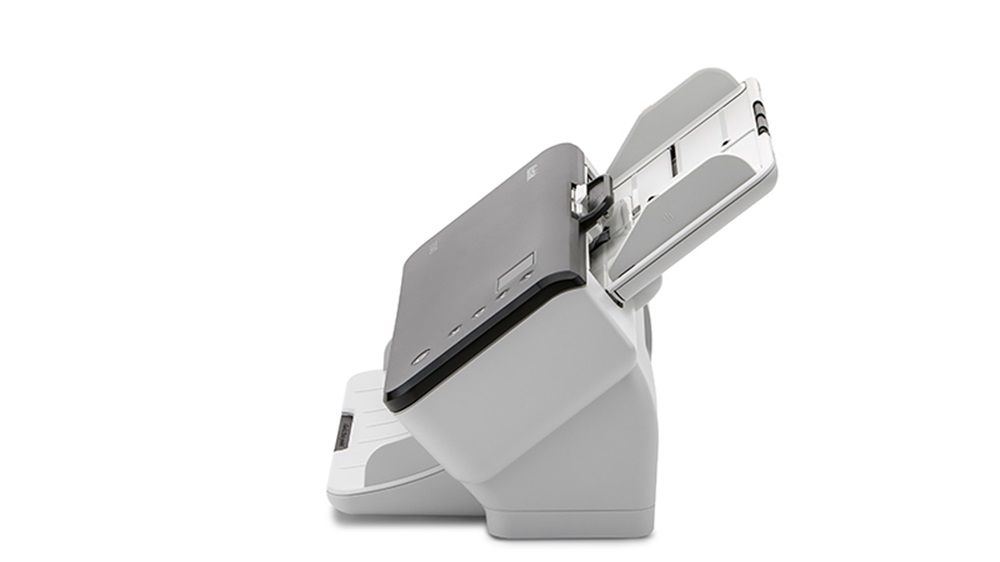

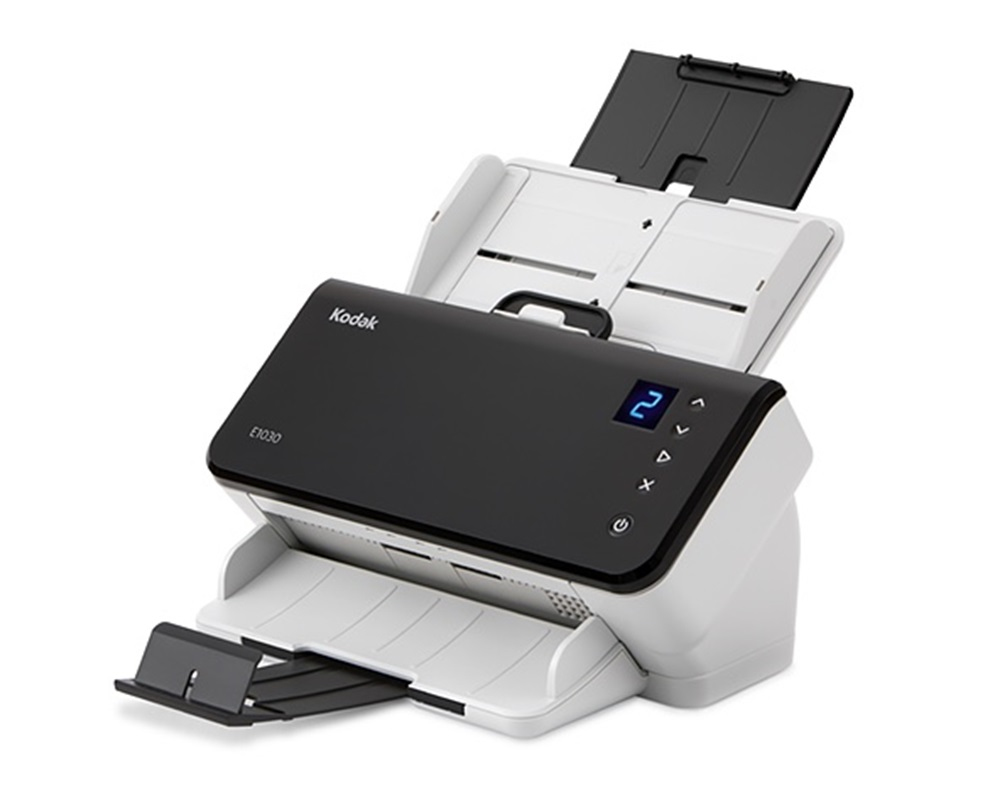

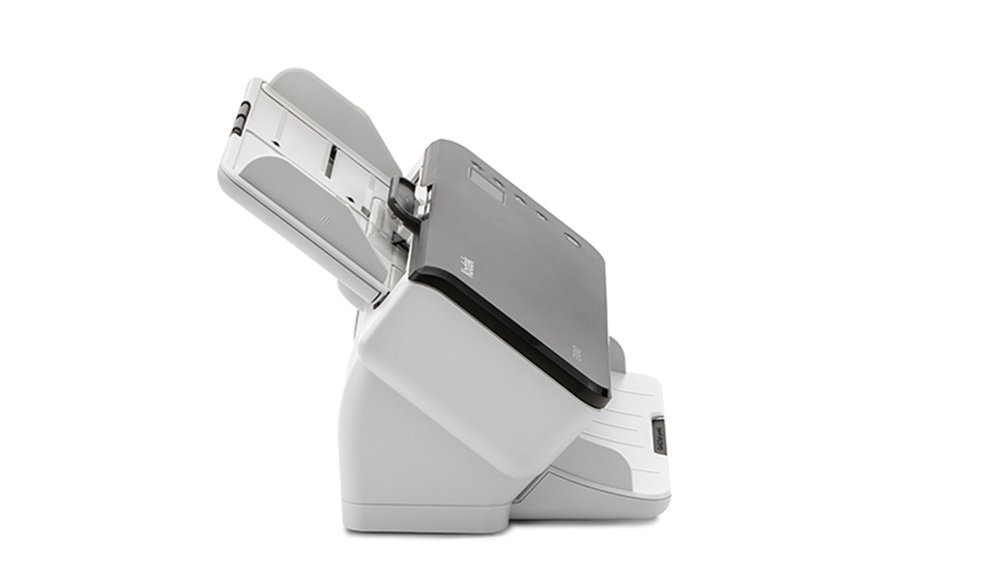

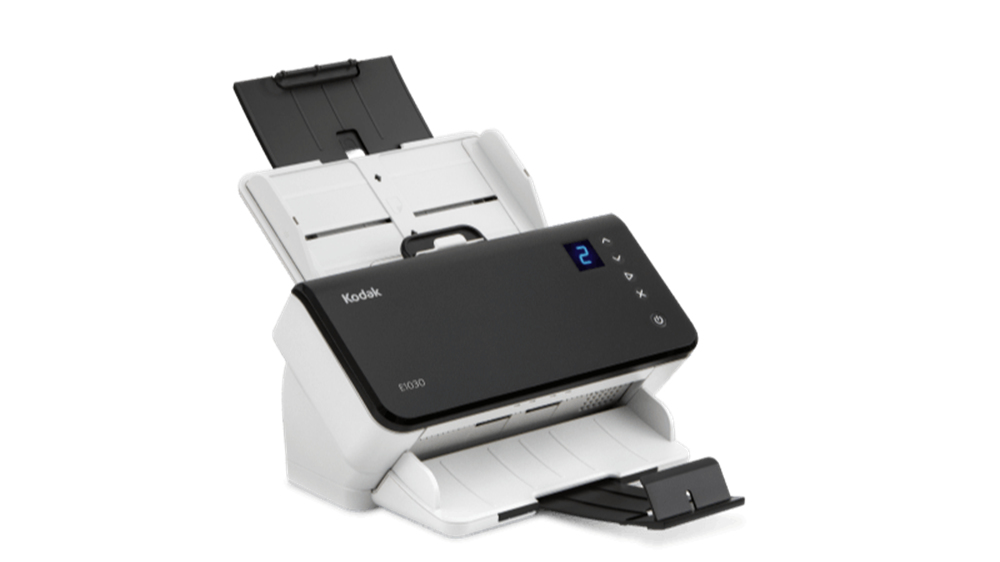

Kodak E1030 ADF scanner
600 x 600 DPI A4 Black, White
Model E1030Part no. 8011876EAN 041778011874
37 specifications
- Display3.81 cm (1.5")
- Weight3.3 kg
- ColourBlack, White
- Maximum scan size216 x 3000 mm
- Scanner typeADF scanner
- Sensor typeCMOS CIS
Overview
- Display
- 3.81 cm (1.5")
- Weight
- 3.3 kg
- Colour
- Black, White
- Maximum scan size
- 216 x 3000 mm
- Scanner type
- ADF scanner
- Sensor type
- CMOS CIS
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- E1030
- Part number
- 8011876
- EAN / UPC
- 041778011874
- Also known as
- Kodak E1030 ADF scanner 600 x 600 DPI A4 Black, White
Specifications
37 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LED |
| Display diagonal | 3.81 cm (1.5") |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Scan file formats | BMP, JPEG, PDF, PNG, RTF, TIFF |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, SANE, TWAIN, WIA |
| Ultrasonic sensor | Yes |
| Scanning noise level | 50 dB |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Card thickness (max) | 1.25 mm |
| Paper tray media weight | 27 - 433 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power supply type | AC |
| Power consumption (standby) | 0.3 W |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 312 mm |
| Depth | 204 mm |
| Height | 182.5 mm |
| Weight | 3.3 kg |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model E1030 · certified Oct 25, 2022 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 0.18 W |
| Standby power | 0.17 W |
