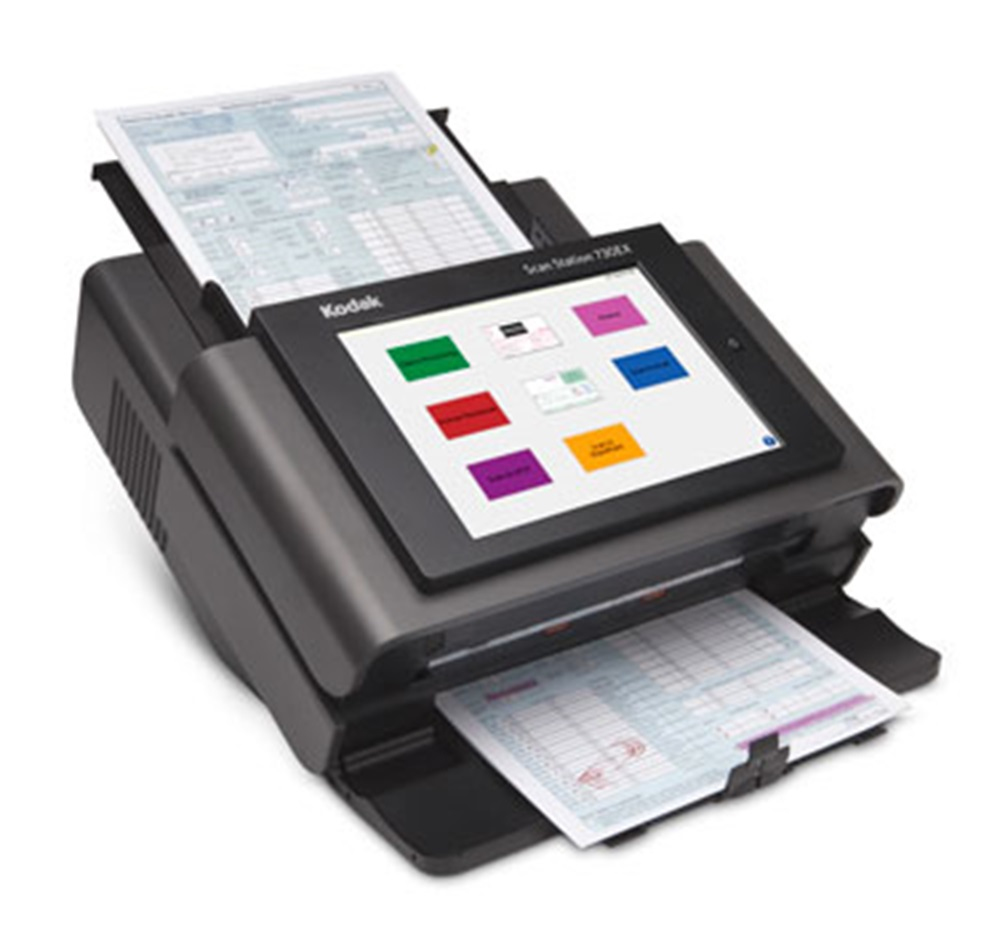

730EX Plus
Model 730EX PlusPart no. 1060094EAN 041771060091
47 specifications
- Display24.6 cm (9.7")
- Weight10.5 kg
- ColourBlack
- Maximum scan size216 x 863 mm
- Scanner typeADF + Sheet-fed scanner
- Sensor typeDual CCD
Overview
- Display
- 24.6 cm (9.7")
- Weight
- 10.5 kg
- Colour
- Black
- Maximum scan size
- 216 x 863 mm
- Scanner type
- ADF + Sheet-fed scanner
- Sensor type
- Dual CCD
- Brand
- Kodak Alaris
- Category
- Scanner
- Model
- 730EX Plus
- Part number
- 1060094
- EAN / UPC
- 041771060091
- Also known as
- Kodak 730EX Plus ADF + Sheet-fed scanner 600 x 600 DPI Black
Specifications
47 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 216 x 863 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 70 ppm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black |
| Display | LCD |
| Display diagonal | 24.6 cm (9.7") |
| Touchscreen | Yes |
| Colour display | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CCD |
| Light source | White LED |
| Scan file formats | DOC, JPEG, PDF, TIFF, XLS |
| Daily duty cycle (max) | 6000 pages |
| Scan to | E-mail, E-mail Server, FTP, Fax, USB |
| Barcode reader | Yes |
| Scan drivers | ISIS, Kofax VRS, SANE, TWAIN, WIA |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 75 sheets |
Paper handling
| Specification | Value |
|---|---|
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 34 - 200 g/m² |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | SMTP, DHCP, FTP, HTTP, SMB, TCP/IP, WINS |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 49 W |
| Power supply type | AC |
| Power consumption (standby) | 0.3 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 5.26 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 356 mm |
| Depth | 382 mm |
| Height | 206 mm |
| Weight | 10.5 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Other features
| Specification | Value |
|---|---|
| Recommended system requirements | INTEL CORE2 Duo 6600 2.4 GHz+, 4 GB RAM |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | S mark, RCM, cTUVus & ICES-003, CCC, CE, GS Mark, BIS, VCCI, NOM, EAC, KC, BSMI, cTUVus & FCC |
| Minimum scan size | 50.8 x 63.5 |
Technical details
| Specification | Value |
|---|---|
| Linear (1D) barcodes supported | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
