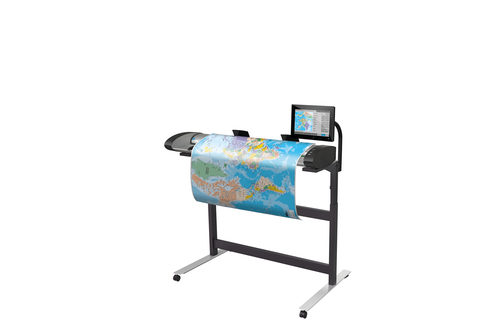

HP SD Pro 2 44-in Scanner

SD Pro 2 44-in Scanner

Model SD Pro 2 44-in ScannerPart no. 5EK01A#B19EAN 196786156434

54 specifications

Display39.6 cm (15.6")
Memory8192 MB
Weight60 kg
ColourBlack
Maximum scan size1118 x 75760 mm
Scanner typeSheet-fed scanner

See all specifications

Overview

Display: 39.6 cm (15.6")
Memory: 8192 MB
Weight: 60 kg
Colour: Black
Maximum scan size: 1118 x 75760 mm
Scanner type: Sheet-fed scanner

Brand: HP
Category: Scanner
Model: SD Pro 2 44-in Scanner
Part numbers: 5EK01A#B19, 5EK01A
EAN / UPC: 196786156434, 196786156397, 196786156427, 196786156465 +1 more
Also known as: HP SD Pro 2 44-in Scanner

Specifications

54 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	1118 x 75760 mm
Optical scanning resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	No
Input colour depth	48 bit
Film scanning	No

Design

Specification	Value
Scanner type	Sheet-fed scanner
Built-in display	Yes
Product colour	Black
Display diagonal	39.6 cm (15.6")
Touchscreen	Yes

Performance

Specification	Value
Sensor type	CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	0 pages
Scan to	E-mail, Network folder, USB, FTP, Print, File, PC
Internal memory	8192 MB

Paper handling

Specification	Value
Maximum ISO A-series paper size	A0

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Ethernet LAN	Yes

Power

Specification	Value
Power consumption (typical)	47 W
Power supply type	AC
Power consumption (standby)	32 W
AC input frequency	50/60 Hz
Input voltage	100 - 240 V
Power consumption (sleep)	1.8 W

Weight & dimensions

Specification	Value
Width	1530 mm
Depth	930 mm
Height	1660 mm
Weight	60 kg

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	1500 mm
Package depth	680 mm
Package height	710 mm
Package weight	85 kg

Packaging content

Specification	Value
Cables included	USB, LAN (RJ-45), AC
Packaging content	HP SD Pro 2 44-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, maintenance sheet, copy/scan software, documentation software, Ethernet cable, USB cable, power cords

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

System requirements

Specification	Value
Compatible operating systems	Windows 11
Windows operating systems supported	Windows 11

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	0 - 95%

Certificates

Specification	Value
Electromagnetic compatibility	Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Russia (EAC)

Other features

Specification	Value
All-In-One-multitasking	Yes
Compatibility	HP DesignJet T600 Printer Series; HP DesignJet T790 Printer series; HP DesignJet T795 Printer; HP DesignJet T920 Printer series; HP DesignJet T930 Printer series; HP DesignJet T940 Printer; HP DesignJet T1300 PostScript Printer; HP DesignJet T1500 Printer series; HP DesignJet T1530 Printer series; H
Image formats supported	DWF, JPEG, TIFF
Media types supported	Non-abrasive paper, sepia, blueprints, plastic, plastic laminate, foam board, cardboard, newspaper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Certification	Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Russia (EAC)
Box contents	HP SD Pro 2 44-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, maintenance sheet, copy/scan software, documentation software, Ethernet cable, USB cable, power cords
UNSPSC-code	43212104

Logistics data

Specification	Value
Country of origin	China, Singapore
