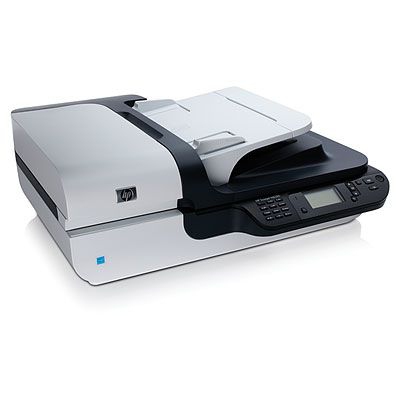

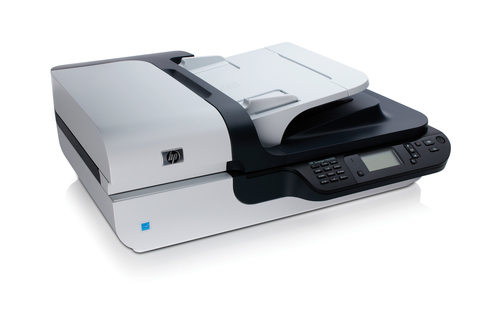

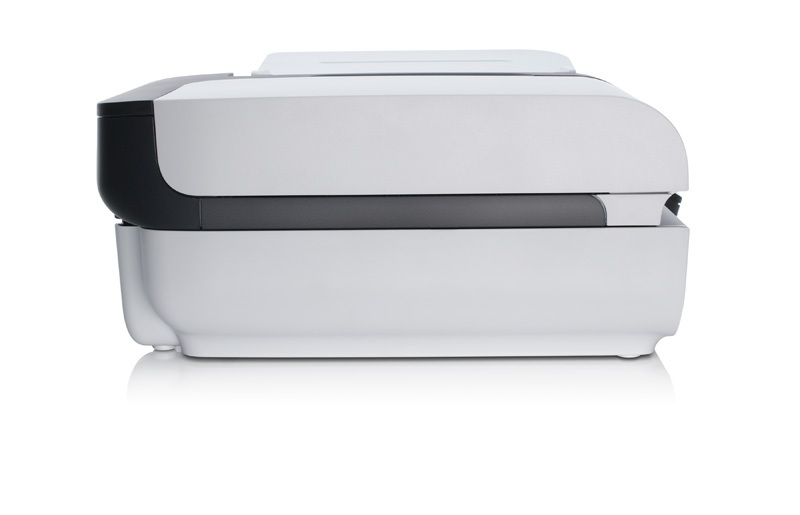

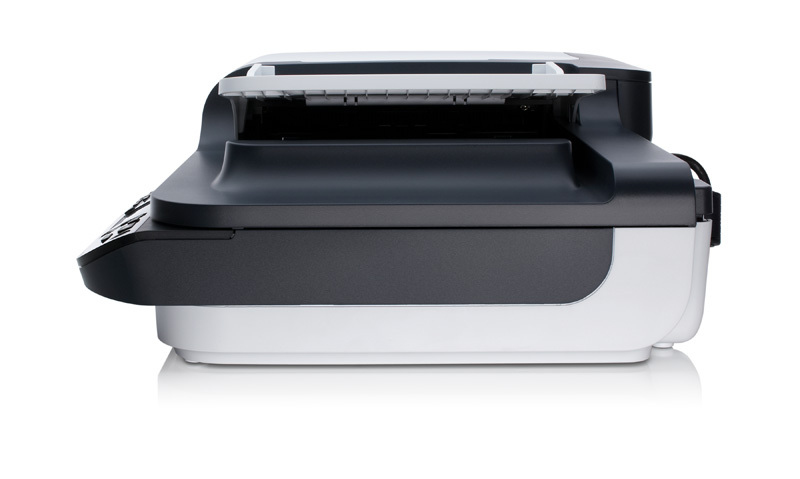

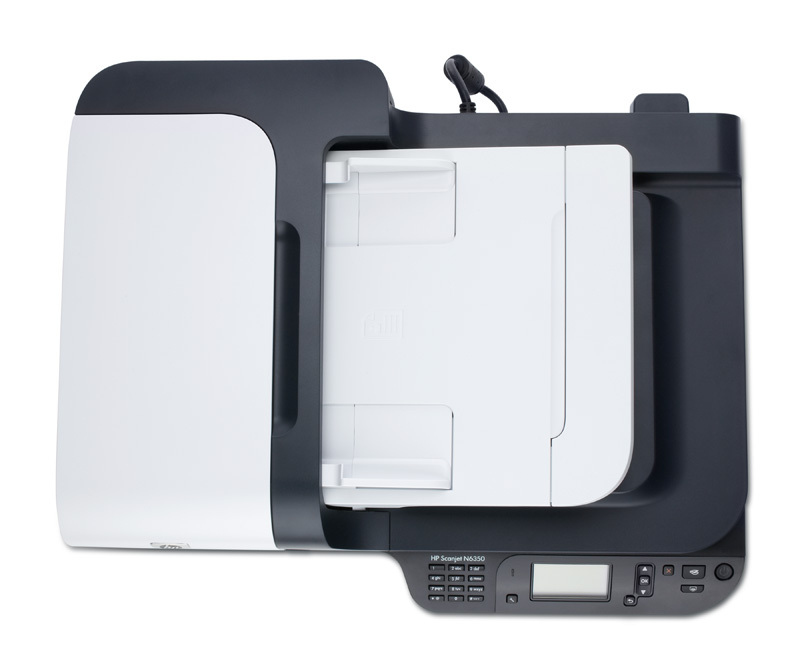

HP Scanjet N6350 Networked Document Flatbed Scanner

Model Scanjet N6350 Networked Document Flatbed ScannerPart no. L2703A#BEA#*KITEAN 884420551959

66 specifications

Weight6.7 kg
Maximum scan size216 x 292 mm
Scanner typeFlatbed scanner
Sensor typeCCD
Maximum ISO A-series paper sizeA4
Supported network protocolsTCP/IP

See all specifications

Overview

Weight: 6.7 kg
Maximum scan size: 216 x 292 mm
Scanner type: Flatbed scanner
Sensor type: CCD
Maximum ISO A-series paper size: A4
Supported network protocols: TCP/IP

Brand: HP
Category: Scanner
Model: Scanjet N6350 Networked Document Flatbed Scanner
Part numbers: L2703A#BEA#*KIT, L2703A
EAN / UPC: 884420551959, 072091108309, 611101119135, 617407455700 +15 more
Also known as: HP Scanjet N6350 Networked Document Flatbed Scanner

Specifications

66 specifications in 15 groups

Scanning

Specification	Value
Maximum scan size	216 x 292 mm
Colour scanning	Yes
Input colour depth	48 bit
Film scanning	No
Greyscale levels	65536

Design

Specification	Value
Scanner type	Flatbed scanner

Performance

Specification	Value
Sensor type	CCD
Light source	CCFL
Scan file formats	BMP, FPX, GIF, JPG, PCX, PDF, PNG, RTF, TIFF, TXT

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Multi feed detection	Yes
ISO A-series sizes (A0...A9)	A4, A5
Auto Document Feeder (ADF) media weight	50 to 120
Maximum scan area (ADF)	216 x 356 mm
Minimum scan area (ADF)	148 x 148 mm

Network

Specification	Value
Supported network protocols	TCP/IP

Power

Specification	Value
Power consumption (typical)	60 W

Weight & dimensions

Specification	Value
Weight	6.7 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	588 x 248 x 547 mm
Package weight	8.21 kg
Package dimensions (W x D x H)	588 x 247.9 x 547.1 mm (23.1 x 9.76 x 21.5")
Package weight (imperial)	8.21 kg (18.1 lbs)

Packaging content

Specification	Value
Bundled software	For Windows: HP Scan software; EMC ISIS/TWAIN drivers; Nuance PaperPort 11; I.R.I.S. Readiris Pro OCR; NewSoft Presto! BizCard; Note: product ships with 3 licenses of all Third Party Software. Additional licenses can be purchased.

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Compatible operating systems	Microsoft Windows 7 ready. For more information go to http:///go/Windows7. Some features may not be available. Windows Vista, Windows Vista x64, Windows XP Home, Windows XP Professional, Windows XP x64, Windows 2000
Minimum system requirements	Microsoft Windows 7 ready (for more information go to /go/windows7. Some features may not be available), Windows Vista: 1.3 GHz processor, 1 GB RAM; Windows XP Home, XP Professional: 1.3 GHz processor, 512 MB RAM; Windows 2000: 800 MHz processor, 256 MB RAM; for all systems: 60 MB (EMC ISIS/TWAIN dr

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	50 - 95 °F

Certificates

Specification	Value
Electromagnetic compatibility	Class B; EU (EMC Directive), US and Canada (FCC Rules), Australia and New Zealand (ACMA), China (CCC), Korea (MIC), Taiwan (BSMI), Russia (GOST), South Africa (I.C.A.S.A.)

Other features

Specification	Value
Dimensions (WxDxH)	502 x 415 x 168 mm
Media types supported	Paper (plain, inkjet, photo), envelopes, cards (index, greeting), 3-D objects A4, A5, custom
Power requirements	Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3%)
Product dimensions when open (LxWxD)	50.2 cm (19.8")
Safety	IEC 60950-1 First Edition (2001); national derivatives; associated voluntary and mandatory certifications: China (CCC), Russia (GOST), Taiwan (BSMI), Mexico (NOM)
Scan media weight	120
Size (imperial)	50.2 cm (19.8")
TWAIN version	Version 1.9
Scan input modes	Front-panel scan to HP Scanning Software; HP Document Copy; software scan using HP Scanning Software; user application via TWAIN, ISIS, or WIA drivers

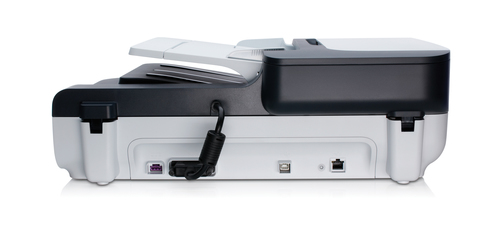

I/O ports	1 Ethernet, 1 Hi-Speed USB 2.0
Maximum dimensions (W x D x H)	502 x 415 x 168 mm

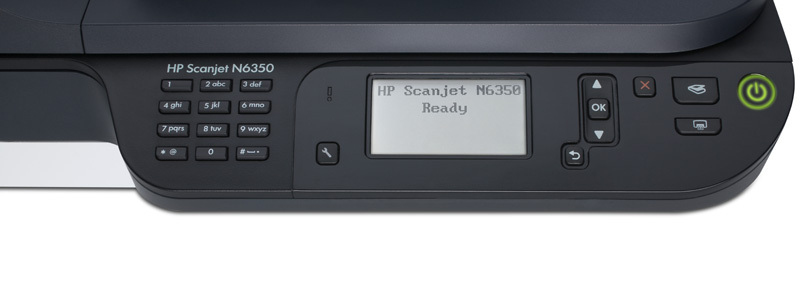

Control panel	5 front-panel buttons (Cancel, Copy, Power, Scan, Setup), navigation and selection buttons (Up arrow, Down arrow, Back, OK), 10 key number pad for PIN entry
Dimension note (imperial)	With automatic document feeder
Dimension note (metric)	With automatic document feeder
Duplex ADF scanning	Yes
Image scaling/enlargement range	12 to 2400% in 1% increments
Maximum scan area (ADF) (imperial)	215.9 x 355.6 mm (8.5 x 14")
Maximum scan area (imperial)	21.6 cm (8.5")
Minimum scan area (Auto Document Feeder)	147.3 x 147.3 mm (5.8 x 5.8")
Minimum scan size	Flatbed, no minimum
Output resolutions	75, 100, 150, 200, 300, 400, 600, 1200, 2400
Recommended operating temperature range (T-T)	10 - 35 °C
Security management description	Optional 4-digit user PIN security enabled
Stacking number for carton	8
Technical features	HP scanning technology for automatic deskew, rotation and cropping. Task-based user interface with shortcuts to common tasks, e.g. scan-to-PDF, scan-to-email. Integrated networking with simple Ethernet connectivity for multiple users. Adaptive Lighting, Auto Red-eye Removal, Image Restoration, Photo
Weight (imperial)	14.8 lb

Logistics data

Specification	Value
Products per pallet	32 pc(s)
Layers per pallet	4 pc(s)
Master (outer) cases per pallet	8 pc(s)
Pallet gross weight	284 kg
Pallet dimensions (W x D x H)	1000 x 1200 x 2312 mm
Pallet dimensions (W x D x H) (imperial)	1219.2 x 1016 x 2313.9 mm (48 x 40 x 91.1")
Pallet weight (imperial)	283.5 kg (625 lbs)
Stacking number for pallet	2 pc(s)
