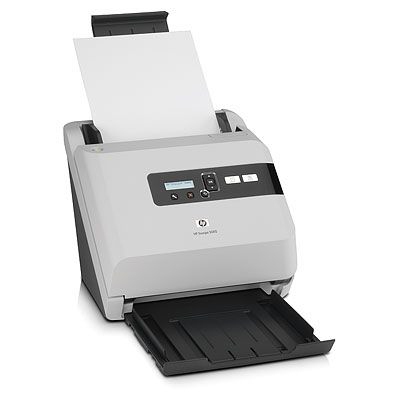

HP Scanjet 5000 Sheet-feed Scanner

Model Scanjet 5000 Sheet-feed ScannerPart no. L2715A#BGJ1052EAN 8844203858202

62 specifications

Weight7.2 kg
Maximum scan size216 x 864 mm
Scanner typeSheet-fed scanner
Light sourceCCFL
Maximum ISO A-series paper sizeA4
USB portYes

See all specifications

Overview

Weight: 7.2 kg
Maximum scan size: 216 x 864 mm
Scanner type: Sheet-fed scanner
Light source: CCFL
Maximum ISO A-series paper size: A4
USB port: Yes

Brand: HP
Category: Scanner
Model: Scanjet 5000 Sheet-feed Scanner
Part numbers: L2715A#BGJ1052, L2715A, L2715A#, L2715A#BEA#*KIT, L2715A#BEA/SHOWIT
EAN / UPC: 8844203858202, 008442038582, 884420385806, 884420385813 +5 more
Also known as: HP Scanjet 5000 Sheet-feed Scanner Sheet-fed scanner 600 x 600 DPI A4

Specifications

62 specifications in 15 groups

Scanning

Specification	Value
Maximum scan size	216 x 864 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Film scanning	No
Greyscale levels	256

Design

Specification	Value
Scanner type	Sheet-fed scanner

Performance

Specification	Value
Light source	CCFL
Maximum duty cycle	1500 pages per month

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Multi feed detection	Yes
ISO A-series sizes (A0...A9)	A4
Auto Document Feeder (ADF) media weight	49 to 120
Maximum scan area (ADF)	216 x 864 mm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0

Power

Specification	Value
Power consumption (typical)	40 W

Weight & dimensions

Specification	Value
Weight	7.2 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	400 x 375 x 496 mm
Package weight	10.2 kg
Package dimensions (W x D x H)	400.1 x 374.9 x 496.1 mm (15.8 x 14.8 x 19.5")
Package weight (imperial)	10.2 kg (22.5 lbs)

Packaging content

Specification	Value
Bundled software	CD-ROM(s) with software for Windows, HP Smart Document Scan Software, Nuance PaperPort, I.R.I.S. Readiris Pro OCR, NewSoft Presto! BizCard, EMC ISIS/TWAIN drivers

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Compatible operating systems	Microsoft Windows 7 ready. For more information go to http:///go/windows7. Some features may not be available. Windows Vista, Windows XP Professional x64, Windows XP Media Center, Windows XP Home, Windows XP, Windows 2000
Minimum system requirements	Microsoft Windows 7 ready (for more information go to /go/windows7. Some features may not be available), Windows Vista x64, Windows Vista: 1.3 GHz processor, 1 GB RAM (2 GB for 64-bit); Windows XP Professional x64, XP Professional, XP Home, Windows 2000: 1.3 GHz processor, 512 MB RAM; for all system

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	50 - 95 °F

Certificates

Specification	Value
Electromagnetic compatibility	Federal Communications Commission (FCC) Part 2 and Part 15, Class B (USA); CISPR 22:2006 (International); ANSI 63.4-2003 (USA); CAN/CSA – CISPR 22:02 (Canada); EN 55022:2006, Class B (European Union); EN 61000-3-2:2005 (European Union); EN 61000-3-3:2005 (European Union); AS/NZS CISPR 22:2004 (Austr

Other features

Specification	Value
Network ready	No
Dimensions (WxDxH)	320 x 280 x 246 mm
Media types supported	Paper (plain, inkjet), envelopes, labels, cards (business, insurance, embossed, plastic ID) A4, A5, A6, A8, legal, business, ID and credit cards, long paper up to 864 mm
Power requirements	Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3%), 1.5 amp output
Safety	IEC 60950-1 First Edition (2001), national derivatives, associated voluntary and mandatory certifications: China (CCC), Russia (GOST), Taiwan (BSMI), Mexico (NOM)
Scan media weight	120
Size (imperial)	32 cm (12.6")
TWAIN version	Version 1.9
Scan input modes	Quick start buttons to HP Smart Document Scan Software and HP Document Copy; scan using HP Document Scan Software; user applicaton via TWAIN, ISIS or WIA drivers

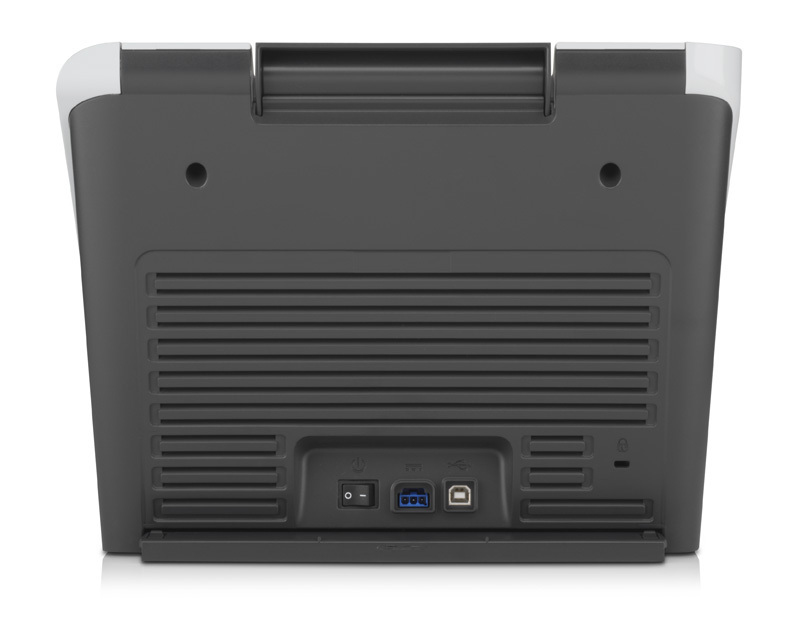

I/O ports	1 Hi-Speed USB 2.0
Maximum dimensions (W x D x H)	320 x 645 x 392 mm

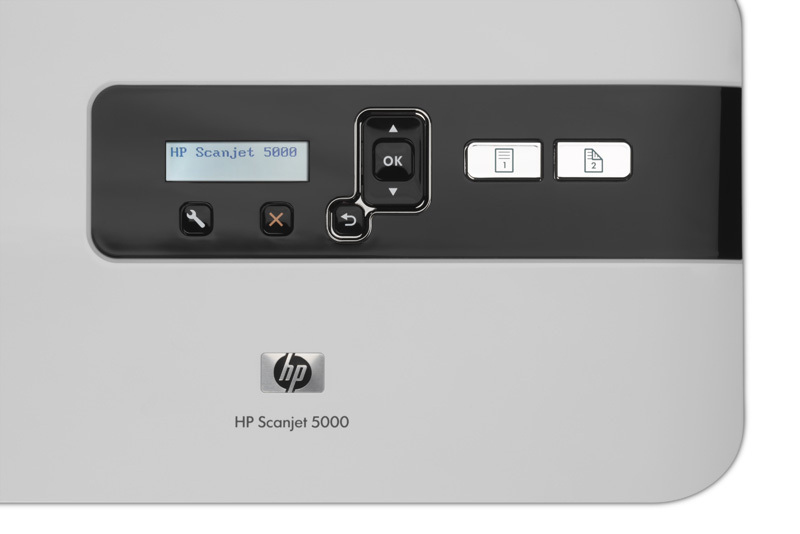

Control panel	Front-panel: 2 line LCD with Up and Down arrows, OK (Select) and Back buttons, Simplex and Duplex buttons, Cancel, Tools utility
Duplex ADF scanning	Yes
Image scaling/enlargement range	1 to 999% in 1% increments
Maximum scan area (ADF) (imperial)	215.9 x 863.6 mm (8.5 x 34")
Minimum scan area (Auto Document Feeder)	50.8 x 73.7 mm (2 x 2.9")
Minimum scan size	50.8 x 73.6 mm (ADF)
Output resolutions	75, 100, 150, 200, 240, 300, 400, 500, 600
Recommended operating temperature range (T-T)	10 - 35 °C
Scanner features	Automatic blank page removal, auto-deskew, auto-orient, auto-crop, barcode detection, batch separation, document merge
Stacking number for carton	10
Technical features	50-page auto document feeder, double-feed detection, channel colour dropout, business card feed. Fast document capture at up to 25 ppm/50 ipm in black and white, greyscale and colour. ScanSoft PaperPort, I.R.I.S. Readiris Pro, Presto! BizCard Reader. Integrate with existing document management syste
Weight (imperial)	15.9 lb

Logistics data

Specification	Value
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	6 pc(s)
Pallet dimensions (W x D x H)	1219.2 x 1016 x 2607 mm
Pallet dimensions (W x D x H) (imperial)	1219.2 x 1016 x 2606 mm (48 x 40 x 102.6")
Stacking number for pallet	2 pc(s)
