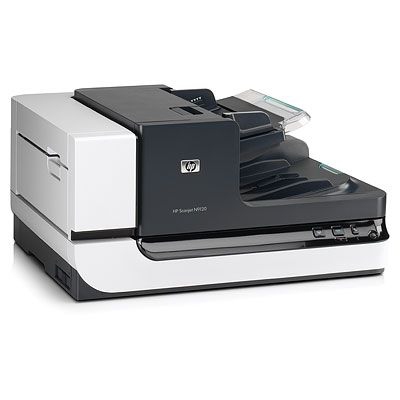

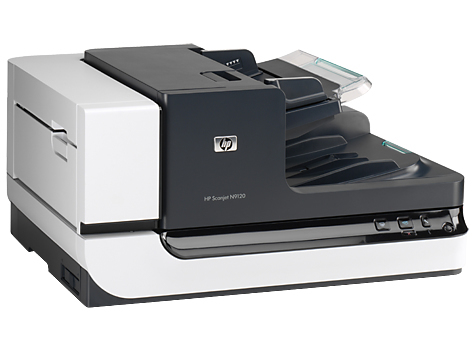

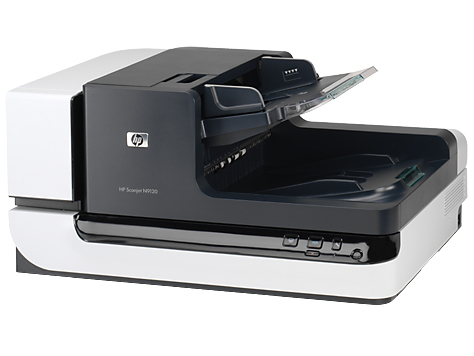

L2683A scanner Flatbed & ADF scanner
600 x 600 DPI A3
Model L2683AEAN 8835857115674
56 specifications
- Weight37 kg
- Maximum scan size300 x 864 mm
- Scanner typeFlatbed & ADF scanner
- Light sourceCCFL
- Auto document feeder (ADF) input capacity200 sheets
- Maximum ISO A-series paper sizeA3
Overview
- Weight
- 37 kg
- Maximum scan size
- 300 x 864 mm
- Scanner type
- Flatbed & ADF scanner
- Light source
- CCFL
- Auto document feeder (ADF) input capacity
- 200 sheets
- Maximum ISO A-series paper size
- A3
- Brand
- HP
- Category
- Scanner
- Model
- L2683A
- Part number
- L2683A
- EAN / UPC
- 8835857115674, 883585711567, 883585802586, 883585843596 +12 more
- Also known as
- HP L2683A scanner Flatbed & ADF scanner 600 x 600 DPI A3
Specifications
56 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 300 x 864 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 50 ppm |
| Duplex ADF scan speed (b/w, A4) | 10 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Flatbed & ADF scanner |
| Built-in display | No |
Performance
| Specification | Value |
|---|---|
| Light source | CCFL |
| Scan file formats | BMP, DOC, HTM, JPG, OPF, PDF, PNG, RTF, TXT, UNICODE, WPD, XLS, XML, XPS |
| Daily duty cycle (max) | 5000 pages |
| Maximum duty cycle | 150000 pages per month |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 200 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Card stock, Envelopes, Photo paper, Plain paper |
| Multi feed detection | Yes |
| Auto Document Feeder (ADF) media weight | 49 - 120 g/m² |
| Maximum scan area (ADF) | 300 x 864 mm |
| Minimum scan area (ADF) | 70 x 148 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 112 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 692 mm |
| Depth | 558 mm |
| Height | 338 mm |
| Weight | 37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 848 x 716 x 540 mm |
| Package weight | 46.3 kg |
| Package dimensions (W x D x H) | 848.1 x 716 x 540 mm (33.4 x 28.2 x 21.3") |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | No |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Hom |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 50 - 95 °F |
Other features
| Specification | Value |
|---|---|
| Network ready | No |
| Dimensions (WxDxH) | 692 x 558 x 338 mm |
| Product dimensions when open (LxWxD) | 69.2 cm (27.2") |
| Size (imperial) | 69.2 cm (27.2") |
| Maximum dimensions (W x D x H) | 692 x 558 x 338 mm |
| Duplex ADF scanning | Yes |
| Exifprint supported | No |
| Maximum scan area (imperial) | 29.7 cm (11.7") |
| Recommended operating temperature range (T-T) | 10 - 35 °C |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 6 pc(s) |
| Pallet gross weight | 299 kg |
| Pallet dimensions (W x D x H) | 848 x 1242 x 1752 mm |
| Pallet dimensions (W x D x H) (imperial) | 838.2 x 1244.6 x 1752.6 mm (33 x 49 x 69") |
