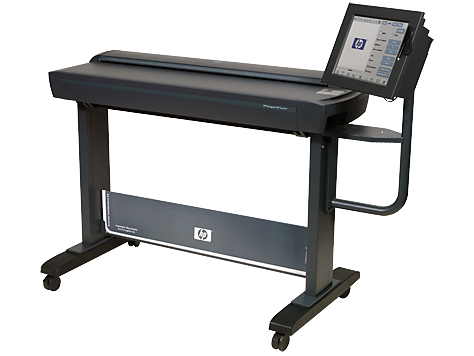

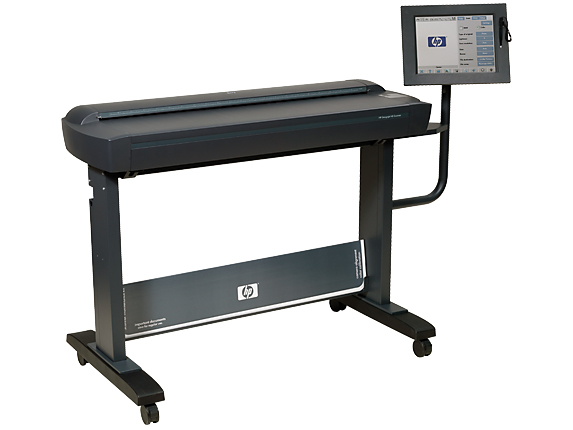

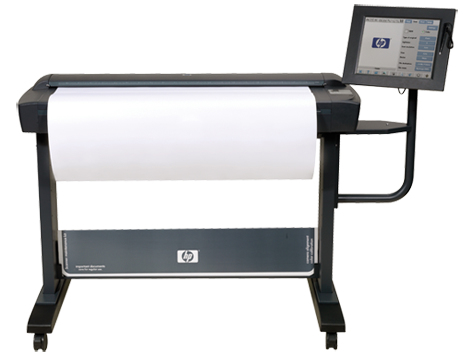

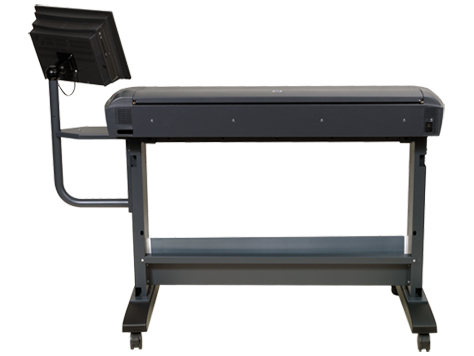

HP Designjet HD Sheet-fed scanner
600 x 600 DPI Black
Model HDPart no. CQ654BEAN 886112162382
47 specifications
- Memory1024 MB
- Weight92.5 kg
- ColourBlack
- Optical scanning resolution600 x 600 DPI
- Scanner typeSheet-fed scanner
- USB portYes
Overview
- Memory
- 1024 MB
- Weight
- 92.5 kg
- Colour
- Black
- Optical scanning resolution
- 600 x 600 DPI
- Scanner type
- Sheet-fed scanner
- USB port
- Yes
- Brand
- HP
- Category
- Scanner
- Model
- HD
- Part number
- CQ654B
- EAN / UPC
- 886112162382, 886112161804, 886112162375, 886112162399 +1 more
- Also known as
- HP Designjet HD Sheet-fed scanner 600 x 600 DPI Black
Specifications
47 specifications in 12 groups
Scanning
| Specification | Value |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Film scanning | No |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
| Display | LCD |
| Touchscreen | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Built-in processor | Intel® Pentium® 4 |
| Processor frequency | 2800 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | Ethernet, FireWire 400, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 300 W |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1800 mm |
| Depth | 850 mm |
| Height | 1380 mm |
| Weight | 92.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 1910 x 680 x 760 mm |
| Package weight | 140 kg |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
System requirements
| Specification | Value |
|---|---|
| USB required | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 0 - 95% |
Other features
| Specification | Value |
|---|---|
| Network ready | Yes |
| Copier resize | 1 - 10000% |
| Copy speed (colour, normal quality, A4) | 200 cpm |
| Functions | Copy, scan |
| Maximum internal memory | 1 GB |
| Maximum media width | 1067 |
| Maximum number of copies | 1000 copies |
| Media thickness (imperial) | 0.6" |
| Media types supported | Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) |
| Special features | 160GB HDD |
| Certification | EU RoHS; REACH; WEEE |
| Acoustic power emissions | 6.3 B |
| Acoustic power emissions (standby) | 44 dB |
| Acoustic pressure emissions | 47 dB |
| Acoustic pressure emissions (standby) | 25 dB |
| Minimum scan area | 152.4 x 114.3 mm (6 x 4.5") |
| Minimum scan size | 152 x 114 mm |
| Scan quality (colour, best) | 300 DPI |
| Scan quality (colour, normal) | 200 DPI |
