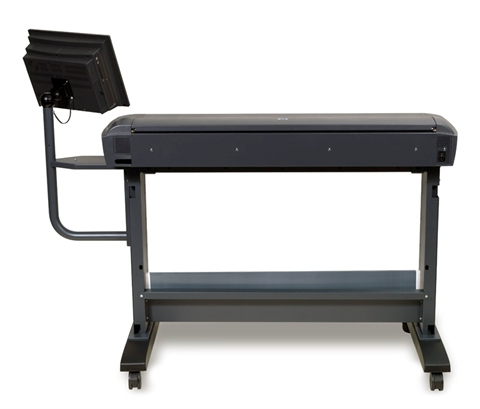

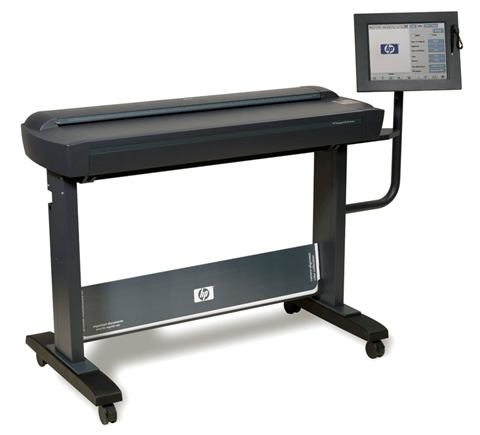

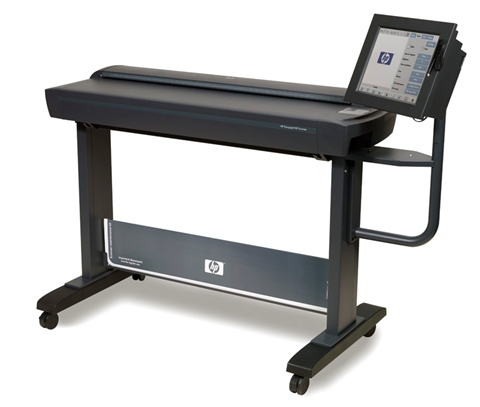

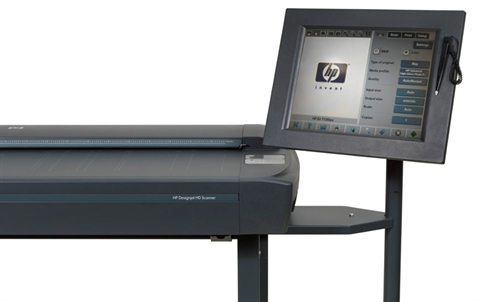

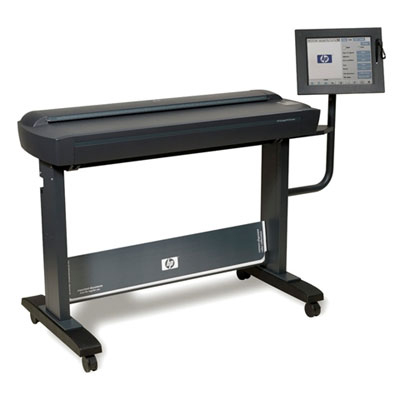

HP Designjet HD Scanner

Model Designjet HD ScannerPart no. CQ654AEAN 8849625757652

52 specifications

Memory1024 MB
Weight92.5 kg
Optical scanning resolution600 x 600 DPI
Scanner typeSheet-fed scanner
Scan file formatsTIFF
Operating temperature (T-T)5 - 40 °C

See all specifications

Overview

Memory: 1024 MB
Weight: 92.5 kg
Optical scanning resolution: 600 x 600 DPI
Scanner type: Sheet-fed scanner
Scan file formats: TIFF
Operating temperature (T-T): 5 - 40 °C

Brand: HP
Category: Scanner
Model: Designjet HD Scanner
Part number: CQ654A
EAN / UPC: 8849625757652, 884962575765, 884962856093, 884962856109 +3 more
Also known as: HP Designjet HD Scanner Sheet-fed scanner 600 x 600 DPI

Specifications

52 specifications in 9 groups

Scanning

Specification	Value
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Film scanning	No

Design

Specification	Value
Scanner type	Sheet-fed scanner
Display	LCD

Performance

Specification	Value
Scan file formats	TIFF
Internal memory	1024 MB
Built-in processor	Intel® Pentium® 4
Processor frequency	2800 MHz

Weight & dimensions

Specification	Value
Weight	92.5 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	1910 x 680 x 760 mm
Package weight	140 kg
Package dimensions (W x D x H)	1910.1 x 680 x 760 mm (75.2 x 26.8 x 29.9")
Package weight (imperial)	140.2 kg (309 lbs)

Packaging content

Specification	Value
Bundled software	System recovery software for the scanning system, including HP Macroinstaller with Windows drivers for HP Designjet 5x0, 800, 1xx0, 4xx0, 5x00, T6x0, T1xx0, Zxx00 series products

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	59 - 95 °F

Certificates

Specification	Value
Electromagnetic compatibility	Compliance for Class A ITE products: EU (EMC Directive)

Other features

Specification	Value
Network ready	Yes
Dimensions (WxDxH)	1800 x 850 x 1380 mm
Functions	Copy, scan
Maximum internal memory	1 GB
Maximum media width	1067 mm
Maximum number of copies	1000 copies
Media thickness (imperial)	0.6"
Media types supported	Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Networking features	Gigabit Ethernet
Power requirements	Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz, 5 A max
Safety	EU (LVD and EN60950-1 compliant); Russia (GOST)
Certification	EU RoHS; REACH; WEEE
Scan input modes	On the touchscreen: scan preview, scan to file, scan to DVD/CD, scan to USB, scan to print, collate copy, copy, batch scanning, batch copying, print from list
I/O ports	1 x RJ-45 1 x USB 2.0 1 x IEEE-1394a
Acoustic power emissions	6.3 B(A)
Acoustic power emissions (standby)	44 dB
Acoustic pressure emissions	47 dB
Acoustic pressure emissions (standby)	25 dB(A)
Copier settings	Type of original; image crop and align preview; lightness; saturation and RGB controls; sharpen/blur; mirror copy; enlarge/reduce; paneling; tiling; nesting; accounting; batch
Copy resolution (colour text and graphics)	9600 DPI
Linear scan speed (imperial)	Up to 3 in/sec (color, 200 dpi/400 dpi Turbo); up to 10 in/sec (black-and-white, 200 dpi/400 dpi Turbo)
Linear scan speed (metric)	Colour (200 dpi/400 dpi Turbo): up to 8 cm/sec; Black and white (200 dpi/400 dpi Turbo): up to 25 cm/sec
Maximum scan area (imperial)	106.7 cm (42")
Media handling	Straight-through scan paper path for sheet and cardboard originals
Minimum scan area	152.4 x 114.3 mm (6 x 4.5")
Minimum scan size	152 x 114 mm
Recommended operating temperature range (T-T)	15 - 35 °C
Scan quality (colour, best)	300 DPI
Scan quality (colour, draft)	150 DPI
Scan quality (colour, normal)	200 DPI
Weight (imperial)	92.5 kg (204 lbs)
