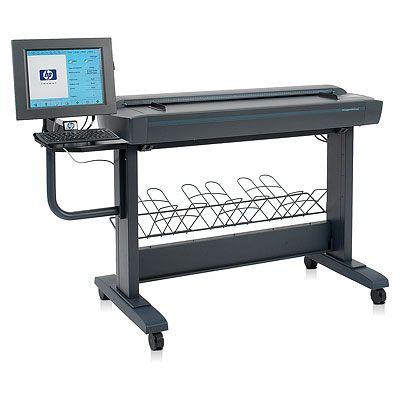

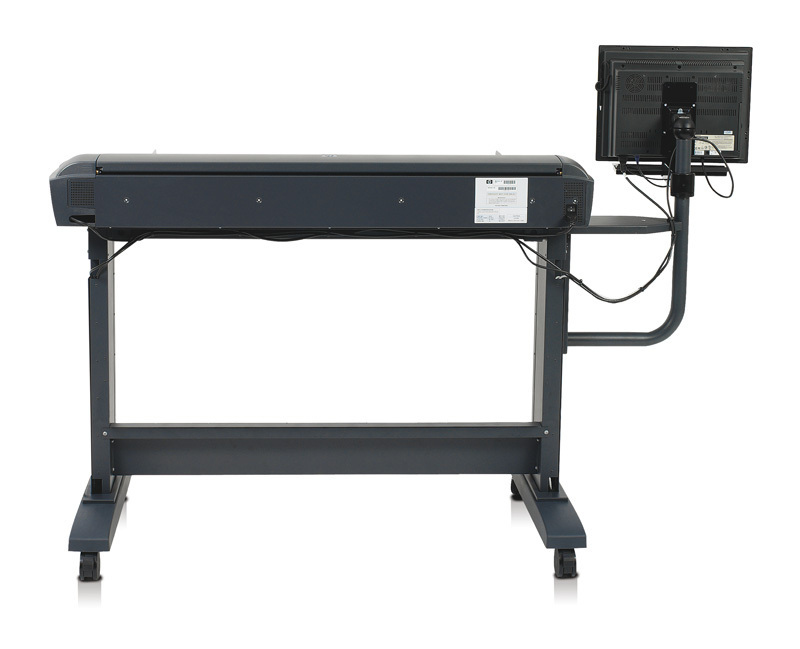

HP Designjet 4520 Scanner

Model Designjet 4520 ScannerPart no. CM770A#BDSEAN 8844209100466

68 specifications

Memory1024 MB
Storage40 GB
Weight92.5 kg
Colour scanningYes
Scanner typeSheet-fed scanner
Sensor typeCCD

See all specifications

Overview

Memory: 1024 MB
Storage: 40 GB
Weight: 92.5 kg
Colour scanning: Yes
Scanner type: Sheet-fed scanner
Sensor type: CCD

Brand: HP
Category: Scanner
Model: Designjet 4520 Scanner
Part numbers: CM770A#BDS, CM770A
EAN / UPC: 8844209100466, 884420910046, 884420910053, 884420910060 +9 more
Also known as: HP Designjet 4520 Scanner Sheet-fed scanner

Specifications

68 specifications in 11 groups

Scanning

Specification	Value
Colour scanning	Yes
Input colour depth	48 bit
Film scanning	No
Greyscale levels	256

Design

Specification	Value
Scanner type	Sheet-fed scanner

Performance

Specification	Value
Sensor type	CCD
Scan file formats	TIFF
Internal memory	1024 MB
Built-in processor	Intel® Pentium® 4
Processor frequency	2800 MHz

Paper handling

Specification	Value
Media thickness (min)	0.08 mm

Weight & dimensions

Specification	Value
Weight	92.5 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	1910 x 690 x 750 mm
Package weight	146 kg
Package dimensions (W x D x H)	1910.1 x 690.9 x 749.3 mm (75.2 x 27.2 x 29.5")
Package weight (imperial)	146.1 kg (322 lbs)

Packaging content

Specification	Value
Bundled software	System recovery software for the scanning system, including HP Macroinstaller with Windows drivers for HP Designjet 5x0, 800, 1000, 40x0, 45x0, 5x00, T610, T11x0, Z2100, Z3x00, Z6100 series products

System requirements

Specification	Value
Compatible operating systems	Windows Vista (32/64-bit), Microsoft Windows Server 2008 (32/64-bit), XP Home and Professional (32/64-bit), Server 2003 (32/64 bit), Mac OS X v10.4, v10.5
Minimum system requirements	Microsoft Windows, Linux: Intel Pentium 4 (1 GHz), 512 MB RAM, 2 GB available hard disk space Microsoft Windows, Linux: Intel Pentium 4 (1 GHz), 1 GB RAM, 2 GB available hard disk space Mac OS X v10.4 or higher: PowerPC G4, G5, or Intel Core Processor, 1 GB RAM, 2 GB available hard disk space

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	64 - 90 °F

Certificates

Specification	Value
Electromagnetic compatibility	Compliance for Class A ITE products: EU (EMC Directive)

Other features

Specification	Value
Network ready	Yes
Minimum system requirements for Macintosh	Mac OS X v10.4 or higher: PowerPC G3 or Intel Core Processor, 512 MB RAM, 1 GB available hard disk space
Dimensions (WxDxH)	1800 x 850 x 1380 mm
Colour copy capability	Yes
Functions	Copy; scan
HDD capacity	40 GB
Maximum internal memory	1 GB
Maximum media width	1092 mm
Maximum number of copies	1000 copies
Maximum output capacity	10 sheets
Media thickness (imperial)	0.6"
Media types supported	Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Networking features	Gigabit Ethernet
Power requirements	Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz, 5 A max
Product dimensions when open (LxWxD)	179.8 cm (70.8")
Safety	EU (LVD and EN60950-1 compliant), Russia (GOST)
Size (imperial)	179.8 cm (70.8")
Certification	WEEE, EU RoHS, REACH, EuP
Paper handling	Straight-through scan paper path for sheet and cardboard originals
Scan input modes	On the touchscreen: scan preview, scan to file, scan to DVD/CD, scan to print, collate copy, copy, batch scanning, batch copying, print from list
I/O ports	1 Megabit Ethernet (1000Base-T) port, 1 FireWire (IEEE-1394a compliant) port
Maximum dimensions (W x D x H)	1800 x 1020 x 1380 mm
Acoustic power emissions	6.3 B(A) (active), 5.8 B(A) (standby)
Colour space standard	sRGB
Control panel	Copy/scan/print operation controlled through an easy-to-use LCD colour touchscreen and intuitive software
Copier settings	Type of original, image crop and align preview, lightness, saturation and RGB controls, sharpen/blur, mirror copy, enlarge/reduce, paneling, tiling, nesting, accounting, batch
Copy resolution (black graphics)	Up to 9600 dpi
Copy resolution (colour text and graphics)	9600 DPI
Driver updates	Latest driver upgrade information available on http:///go/4520scanner/drivers
Linear scan speed (imperial)	Up to 3 in/sec (color, 200 dpi/400 dpi Turbo); up to 10 in/sec (black-and-white, 200 dpi/400 dpi Turbo)
Linear scan speed (metric)	Colour (200 dpi/400 dpi turbo): up to 8 cm/sec; Black and white (200 dpi/400 dpi turbo): up to 25 cm/sec
Media handling	Straight-through scan paper path for sheet and cardboard originals
Minimum scan area	152.4 x 114.3 mm (6 x 4.5")
Minimum scan size	152 x 114 mm
Print quality (black, best quality)	2400 x 1200 DPI
Recommended operating temperature range (T-T)	15 - 30 °C
Scan quality (black, best)	300 DPI
Scan quality (black, draft)	150 DPI
Scan quality (black, normal)	200 DPI
Scan quality (colour, best)	300 DPI
Scan quality (colour, draft)	150 DPI
Scan quality (colour, normal)	200 DPI
Weight (imperial)	204 lb
