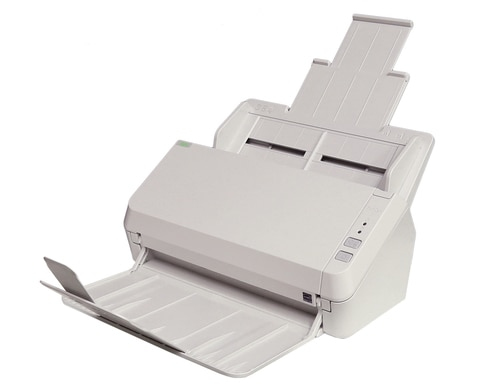

ScanZen Eko
Model ScanZen EkoPart no. CG01000-294401
35 specifications
- Weight2.5 kg
- ColourWhite
- Maximum scan size210 x 297 mm
- Scanner typeADF scanner
- Sensor typeCMOS CIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 2.5 kg
- Colour
- White
- Maximum scan size
- 210 x 297 mm
- Scanner type
- ADF scanner
- Sensor type
- CMOS CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Fujitsu
- Category
- Scanner
- Model
- ScanZen Eko
- Part number
- CG01000-294401
- Also known as
- Fujitsu ScanZen Eko ADF scanner 600 x 600 DPI A4 White
Specifications
35 specifications in 11 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 210 x 297 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 20 ppm |
| Duplex ADF scan speed (b/w, A4) | 40 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | No |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Scan drivers | TWAIN |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Auto Document Feeder (ADF) media weight | 50 - 209 g/m² |
| Maximum scan length | 3.05 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 298 mm |
| Depth | 135 mm |
| Height | 133 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
